REDOX MOTOR BL 400/1400

The classic Redox 400/1400 outrunner is the faster of the two available "400's" in our range. Offering about 165W of power and about 400 g. of static thrust, the high-speed unit with 1400 kV will be ideal for maneuverable and fast aerobatics up to about 550-600 g., providing excellent opportunities for 3D flying and fast evolutions. It will also be suitable for any of those models where the pilot would like to get a little more cruising speed, even from top-flight or other training models.

In addition, the engine has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove especially helpful on models with limited ability to mount the frame for engine installation on the front of the model, or it can prove ideal for push-pull models.

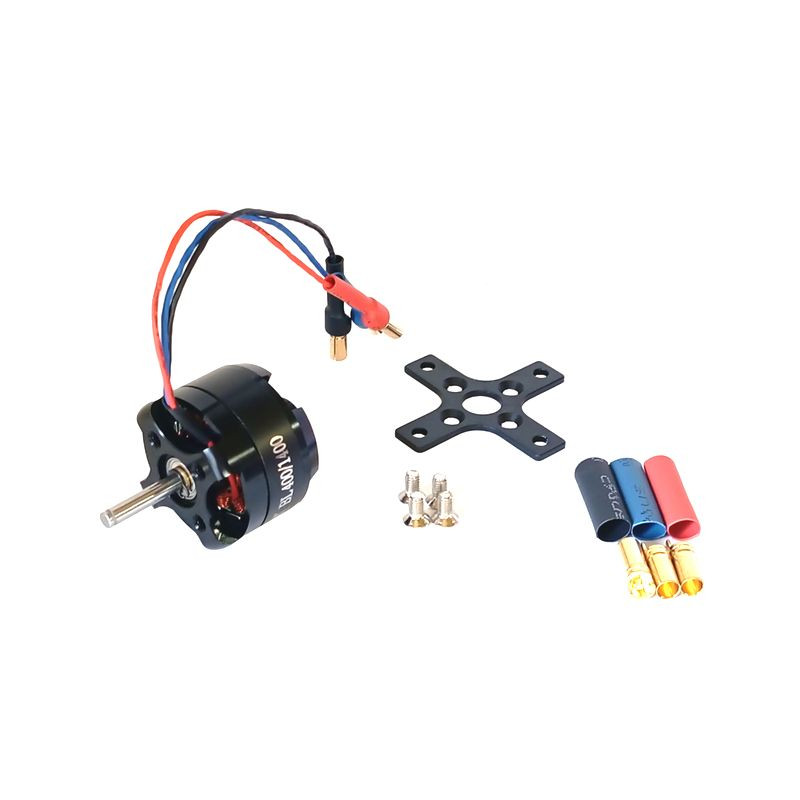

The kit includes:

• Redox brushless motor
• Small mounting bed with 4 screws (40x33mm)
• 3x 3.5mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 165 W
• Static thrust: 400 g
• Shaft diameter: 3mm
• kV [rpm]: 1400
• Operating voltage: 2-3s (7.4-11.1V)
• No-load current consumption: 0.62A
• Max. current consumption: 14.7 A at 11.1V
• Recommended regulator: 18-20 A
• Propeller: APC 8x7 E
• Weight: 35 g
• Motor diameter: 28mm
• Body length: 26mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
