FLYSKY APARATURA PISTOLETOWA FS-GT5 / 6 CH

Fly Sky FS-GT5 is an excellent, digital and fully programmable 6-channel 2.4 GHz apparatus with the possibility of mounting any RC modules . The software of the apparatus makes it suitable for both novice modelers and professionals.

The AFHDS system used in these devices searches the 2.4GHz band on 135 channels, which allows the simultaneous operation of many transmitters without interfering with each other, and does not use bothersome quartz. The system is used in 2.4 GHz devices is a quartzless system with advanced very fast transmission with a sampling range of 1024 bits. Such work virtually eliminates interference from other transmitters and any other interference, and allows the use of multiple transmitters in one place.

The AFDHS system used in the FS-GT5 apparatus searches up to 135 channels on the 2.4 GHZ band which eliminates the problem of mutual interference while playing. The kit includes a 6-channel FlySky FS-BS6 receiver.

The transmitter is powered by 4 AA batteries (ordinary "fingers")

Technical data:

GT5 apparatus

• Channels: 6CH
• RF range: 2.408-2.475 GHz
• Bandwidth: 500KHz
• Bands: 135
• RF Power:
• Receiving sensitivity: -95dBm
• Protocol: AFHDS 2A
• Modulation type: GFSK
• Transfer method: FHSS
• Control resolution: 4096 steps
• Control delay:
• Power supply: 4 AA batteries or LiPo 2S 7.4 V battery (not included)
• Antenna length: 26 mm
• Display: NTN segment screen, VA52.5 x 34mm white backlight
• Range:> 200 m (ideal conditions)
• PWM format: 1500us (median) 900-2100us (area)
• Material: plastic
• Dimensions: 29 x 22 x 16mm
• Weight: 800g

Receiver FS-BS6

• Channels: 6CH
• RF range: 2.408-2.475 GHz
• Bands: 135
• RX sensitivity: -92dBm
• Protocol: AFHDS 2A
• Modulation type: GFSK
• Power supply: 4.0-8.4V DC

Included:

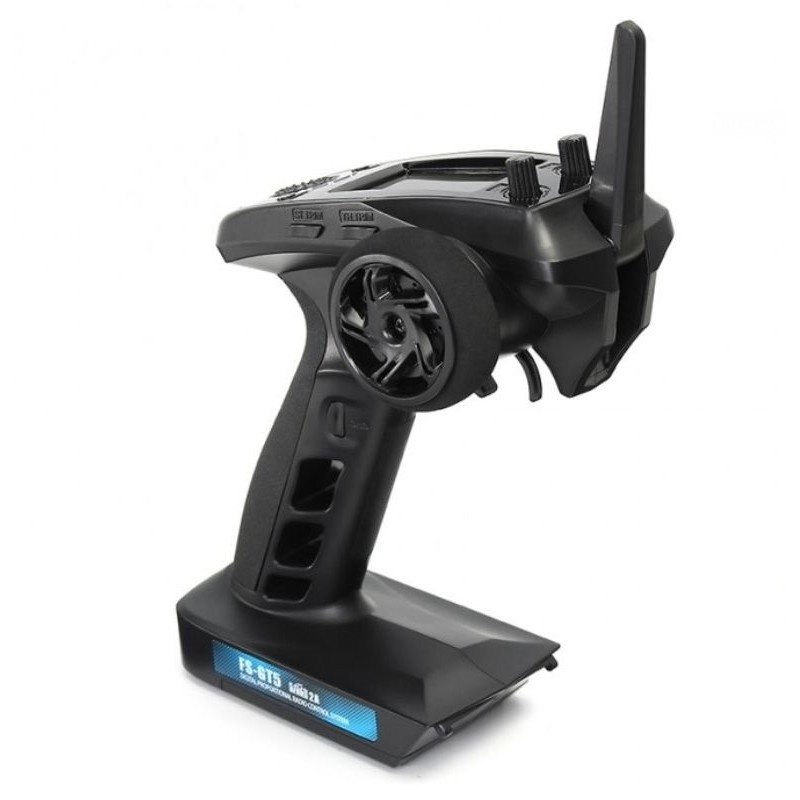

• FlySky FS-GT5 transmitter

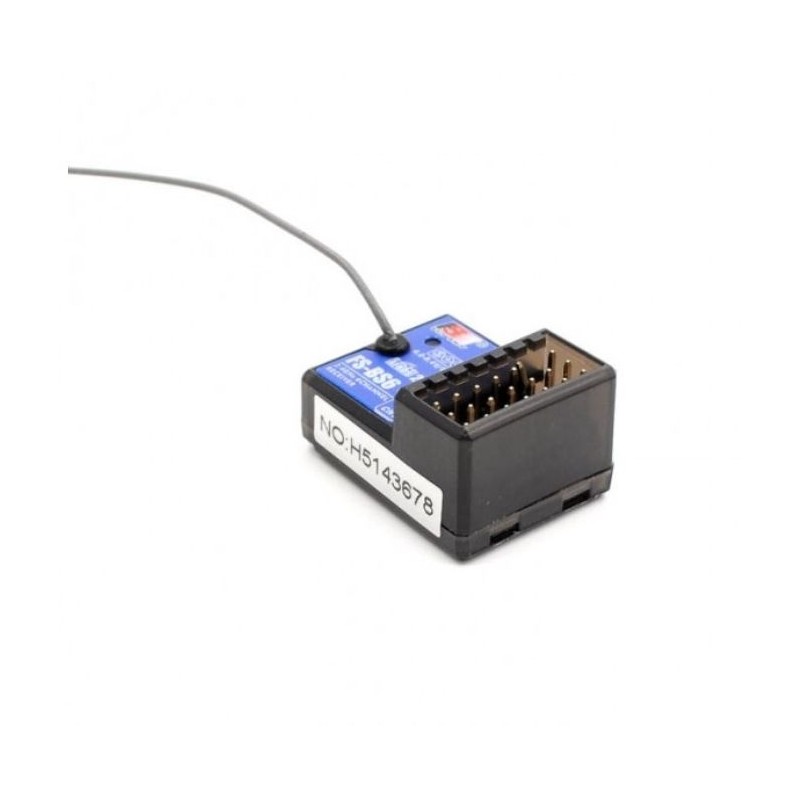

• Receiver FS-BS6
• User manual
