RADIOLINK T8S APPARATUS + R8EF receiver

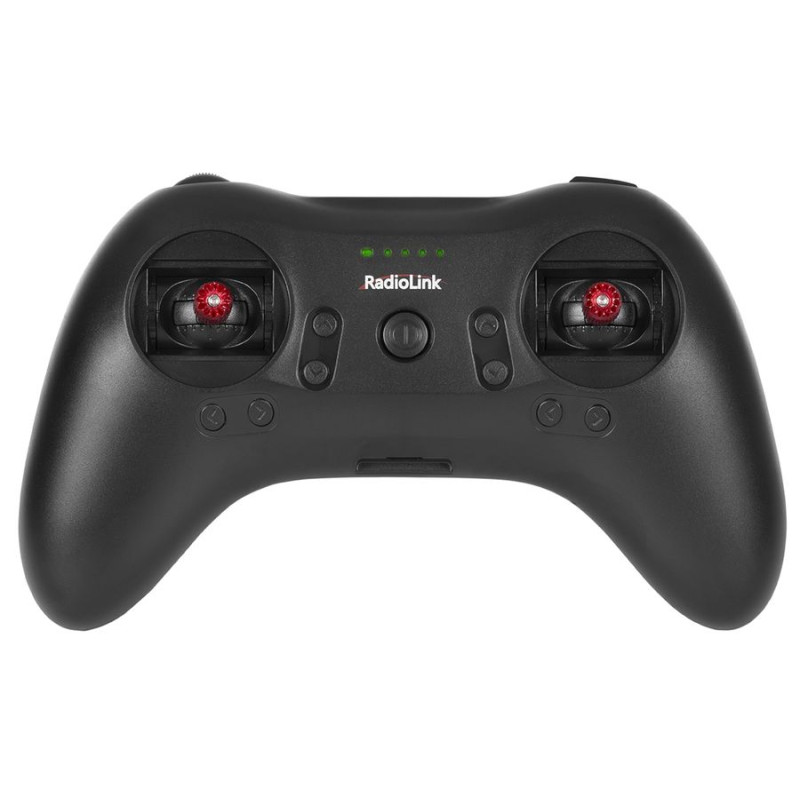

The T8S is an eight-channel "gamepad" transmitter for recreational modelers that can function as a classic "handheld" eight-channel transmitter with cross controls, two switches, one button and one knob. When connected via USB cable to a PC with a utility program or via Bluetooth to an Android smartphone with an app, it turns into a smart computer transmitter that allows you to set basic functions such as yaw size and direction, aileron mix and butterfly tail surfaces, and even has two freely programmable mixes , allowing you to control a wide range of models - powered aerobatic models, gliders, multi-copters, cars and other land vehicles and ships. It has a chassis that fits perfectly in the hand, and a design that has been proven by millions of PC and console gamers when pairing WoW, WoT, LoTR, D&D, LMAO, OPBH....

Controls: To control the main functions, there are precise cross controls with adjustment of the force of the neutralizing springs and the ability to move the locked gas axis left or right. This allows you to freely select the modes of cross controllers 1-4, but in the accessories there is everything necessary to neutralize the gas controller to the center under multicopters or tanks. The digital trims have an audible step signal. They are placed somewhat eccentrically and easily accessible. Additional channels can be controlled by two three-position rocker switches, a rotary knob and a button; the switches can also be used to turn program functions on/off (when set on a PC or smartphone). The controls can be assigned (on a PC or smartphone).

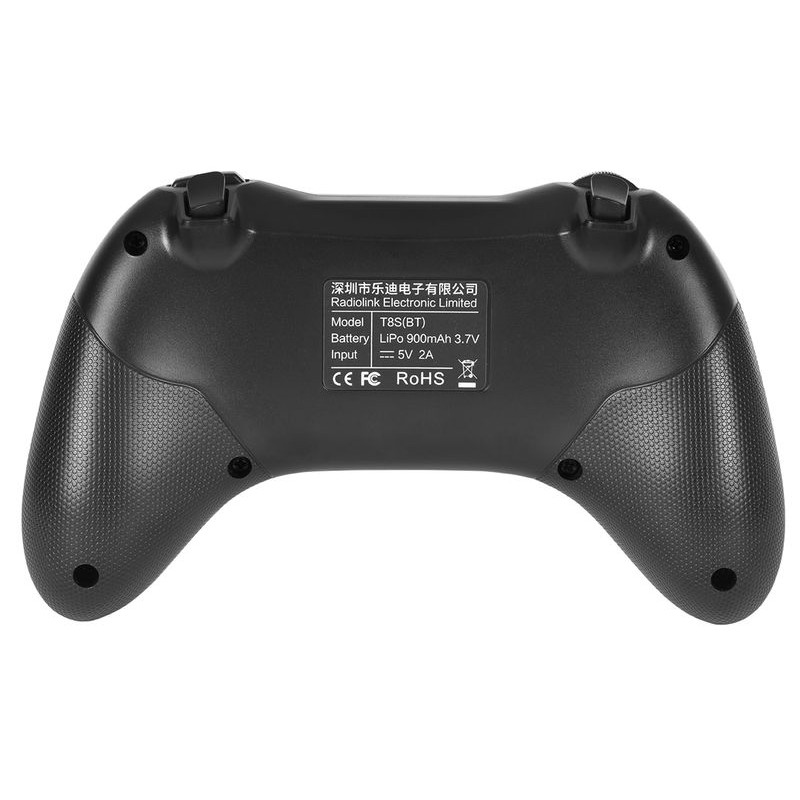

Transmitter power supply: The T8S is equipped with a built-in LiPo battery, which can be easily recharged using a micro USB cable from a computer or a USB AC adapter.

Transmission system: The T8S uses frequency-hopping FHSS transmission for long range, reliability and noise immunity. It does not allow transmission of telemetry data.

Software: When connected to a PC or smartphone, you get extensive configuration options for the transmitter. You can load existing settings from the transmitter, modify them as needed and upload them back to the transmitter, save them to your PC or smartphone, or transfer the settings stored there to the transmitter. The tool or app has four menus:

• SERVO Monitor for displaying servo movements in all channels
• BASIC menu for setting the direction and amount of pivot, emergency pivot and speed of servo movement
• ADVANCED menu for setting double swings, ATTITUDE function (up to 6 drone control unit flight mode switch positions), mixes for butterfly tail surface and autowing
• SYSTEM menu for assigning channel controllers 5-8, cross controller mode selection 1-4, setting the transmitter's low battery signal threshold level, and two freely programmable mixes.

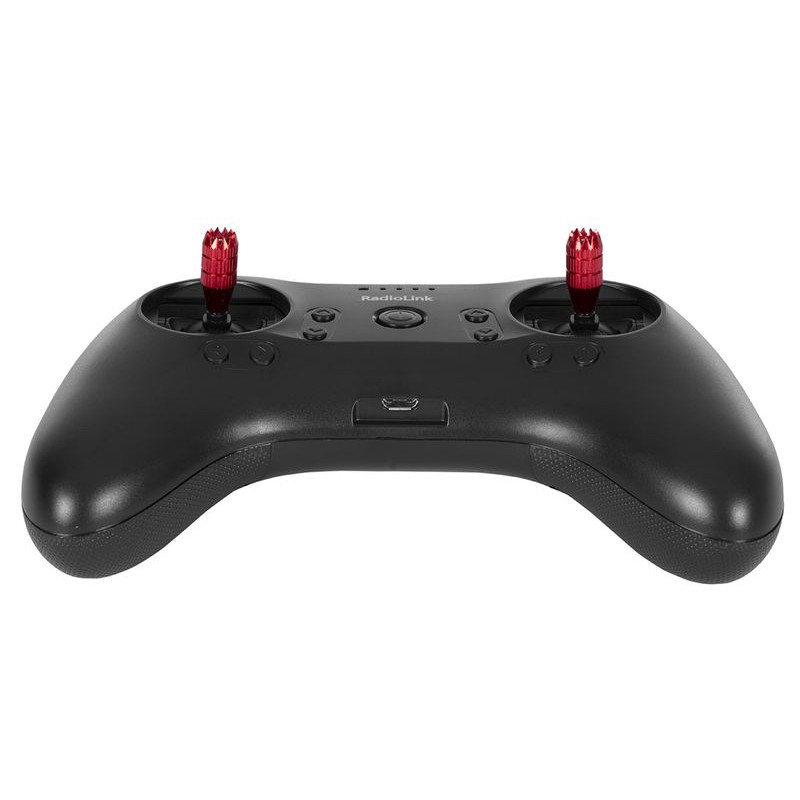

A micro USB socket is used for software updates and programming the transmitter with a PC.

Bluetooth - Bluetooth connection is used to program the transmitter using an app for an Android cell phone or tablet.

Compatible receivers

Non-telemetry common range: R8EF, R8EFM Mini

Note: The transmitter is NOT compatible with Radiolink R6DS, R6DSM Mini, R9DS, R12DS or R12DSM Mini receivers.

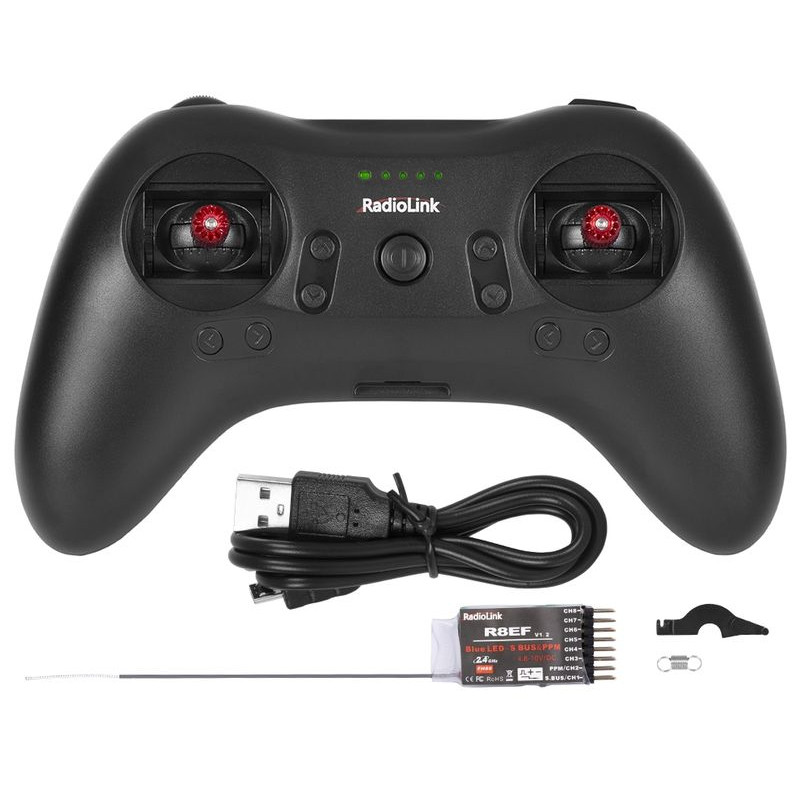

Kit includes:

• T8S transmitter
• R8EF 8-channel receiver
• Micro USB cable
• Neutralization spring with slider (to neutralize the gas controller to the center)

*Follow the instructions included with the product.
