RADIOLINK R12DS mini RECEIVER

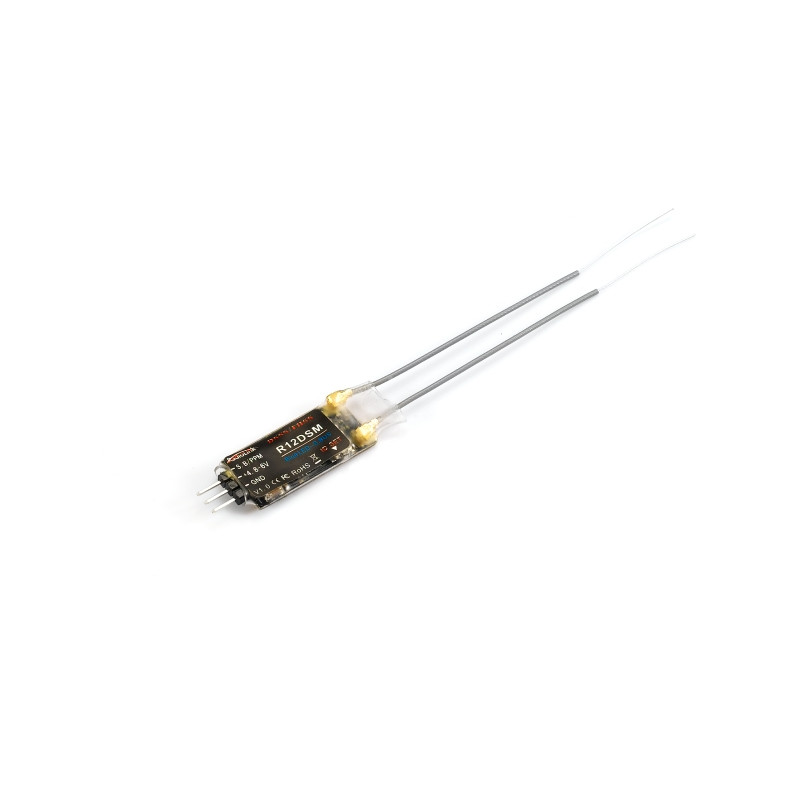

The Radiolink R12DSM Mini 2.4 GHz is a miniature 12-channel synchronous DSSS and FHSS receiver with frequency hopping, compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (the AT9, AT 9S and AT10 transmitters can be upgraded to 12 channels via a software update , which can be downloaded from the manufacturer's website, the AT10II is already 12-channel in its basic version). The R12DSM offers a switchable S-BUS or PPM serial output.

The receiver is particularly suitable for multicopters and drones of even larger size (the manufacturer's range is 1,100 meters on the ground and 3,000-4,000 meters in the air).

The use of DSSS/FHSS transmission technology carries a high resistance to interference and the ability to set fail-safe deflection in case of failure or strong interference of the transmitter signal

Operating modes

• With PPM serial output: red LED indicates PPM signal output, 12 channels in total
• With SBUS serial output: blue/purple LED indicates SBUS signal output, 12 channels in total.

Pairing with the transmitter is done with the pairing button on the receiver, operating states are indicated by LED.

The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the outlets are oriented in the direction of the longitudinal axis of the receiver.

The receiver kit includes: receiver R12DSM, instruction manual.

Technical specifications:

• Modulation/Coding: 2.4 GHz FHSS/DSSS
• Number of channels (S-BUS/PPM): 12
• Serial output: PPM, S-BUS
• Fail-safe
• Power supply: 4.8 V, 6 V, 7.2 V, 7.4 V
• Length [mm]: 30
• Width [mm]: 15
• Height [mm]: 5,5
• Weight [g]: 2,5

*Follow the enclosed instructions.
