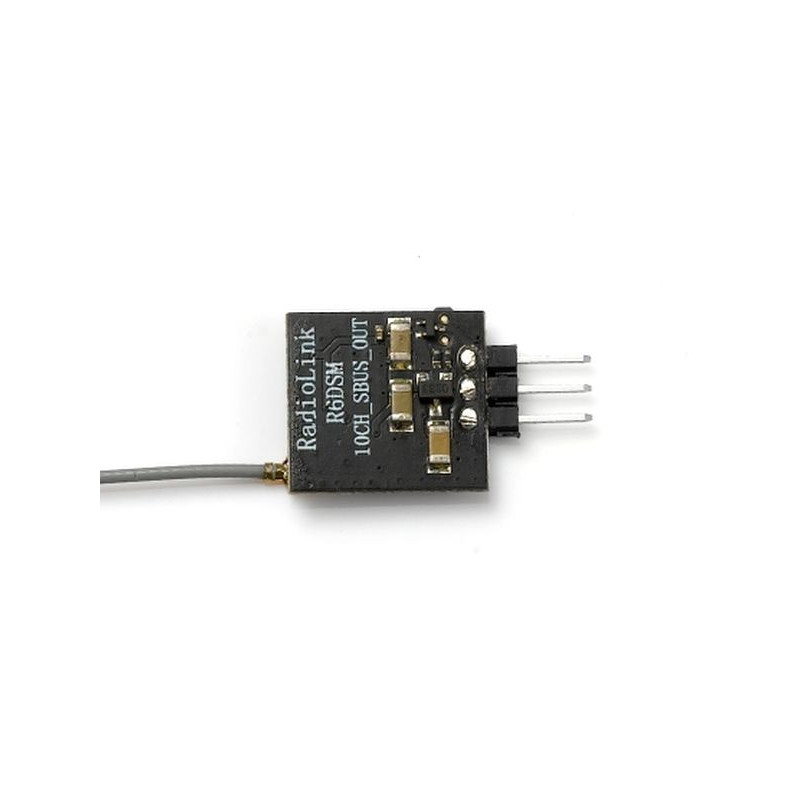

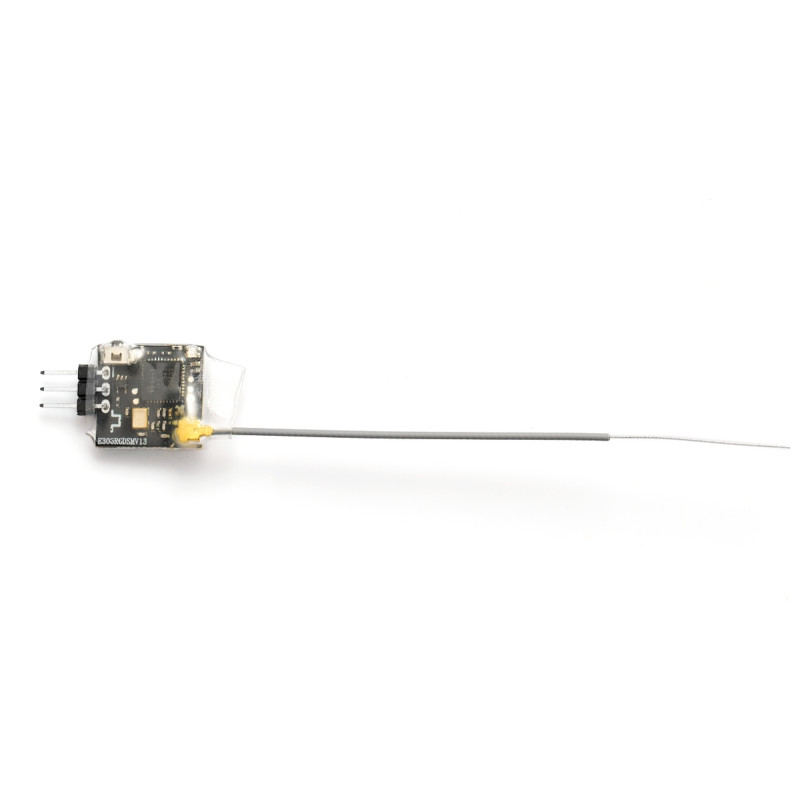

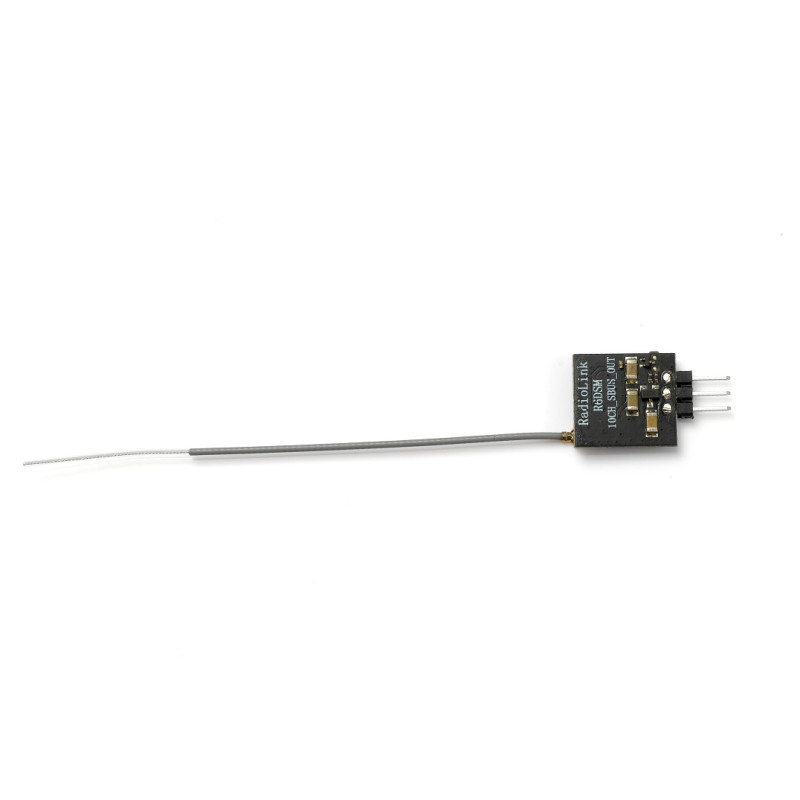

RADIOLINK R6DS mini RECEIVER

Radiolink R6DSM Mini 2.4GHz is a miniature 10-channel receiver with synchronous DSSS and FHSS frequency hopping transmission compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (AT10II must be switched to 10CH transmission mode). It offers two modes of operation - with S-BUS serial output or PPM (10 channels). It is NOT compatible with Radiolink T8FB and T8S transmitters.

The receiver is particularly suitable for multicopters and racing drones (the range given by the manufacturer is 300 m on the ground and 600 m in the air).

The use of DSSS/FHSS transmission technology carries a high resistance to interference and the ability to set fail-safe deflection in case of failure or strong interference of the transmitter signal

Operating modes:

• With PPM serial output: red LED indicates PPM signal output, 10 channels in total
• With SBUS serial output: blue/purple LED indicates SBUS signal output, 10 channels in total

Pairing with the transmitter is done using the pairing button on the receiver, operating states are indicated by LED.

The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the outlets are oriented in the direction of the longitudinal axis of the receiver.

Specifications:

• Number of channels (S-BUS+PPM): 10
• Serial output: PPM, S-BUS
• Fail-safe
• Power supply: 4.8 V, 6 V
• Length [mm]: 15
• Width [mm]: 13
• Height [mm]: 5
• Weight [g]: 1,5

The receiver set includes: the R6DSM receiver, instructions.

*Follow the enclosed instruction manual.
