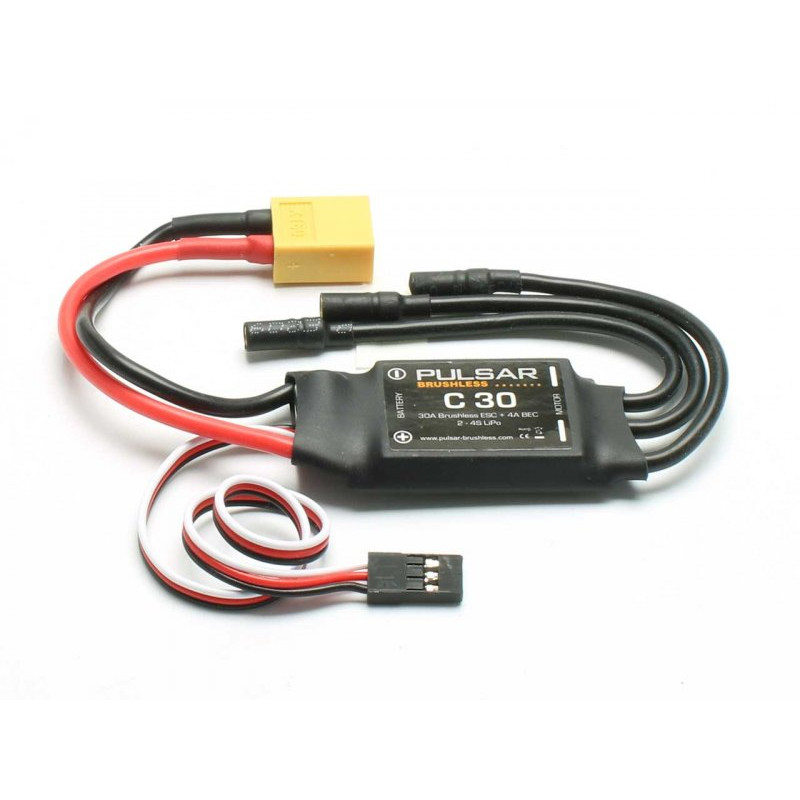

PULSAR RGULATOR C-30

PULSAR controllers impress with their high quality, performance and reliability. They work perfectly with all brushless motors (outrunner or inrunner) available on the market. The use of modern, high-quality components and innovative software underlines the company's high quality standards.

Technical specifications:

• Number of cells: 2 - 4 LiPo
• Load (continuous): 30A
• Load (short term): 40A
• Integrated receiver power supply (BEC): 5V / 4A
• Weight: 30g (including cable and connector)
• Dimensions: 50 x 26 x 9mm
• Connector system: XT60

Adjustable functions
- Brake (off / soft / medium / hard)
- Direction of motor rotation (forward / reverse)
- Cut-off mode - motor running (reduced power = 70%, OFF)
- Cutoff voltage for LiPo (3.0V / 3.2V / 3.4V / 3.6V)
- Cut-off voltage for NiMH / NiCD (50% / 60%)
- Initial behavior (standard / soft)
- Timing (AUTO / low 5° / medium 15° / high 25°)
- SMR function (ON / OFF)
- SR function (ON / OFF)
- BEC adjustable (5V or 6V, default setting = 5V)

Product features
- Pre-assembled with yellow XT60 connector and 3.5mm gold connectors (no soldering required)
- 32-bit processor
- Extremely sensitive control behavior
- Selected, high-quality MOSFET transistors
- Powerful, integrated BEC receiver power supply
- Easy to set up with optional programming box
- Ready to use (Plug & Play)
- High quality and reliability

Programming card: Pulsar #15948 (not included)

*Follow the instruction manual included with the product.
