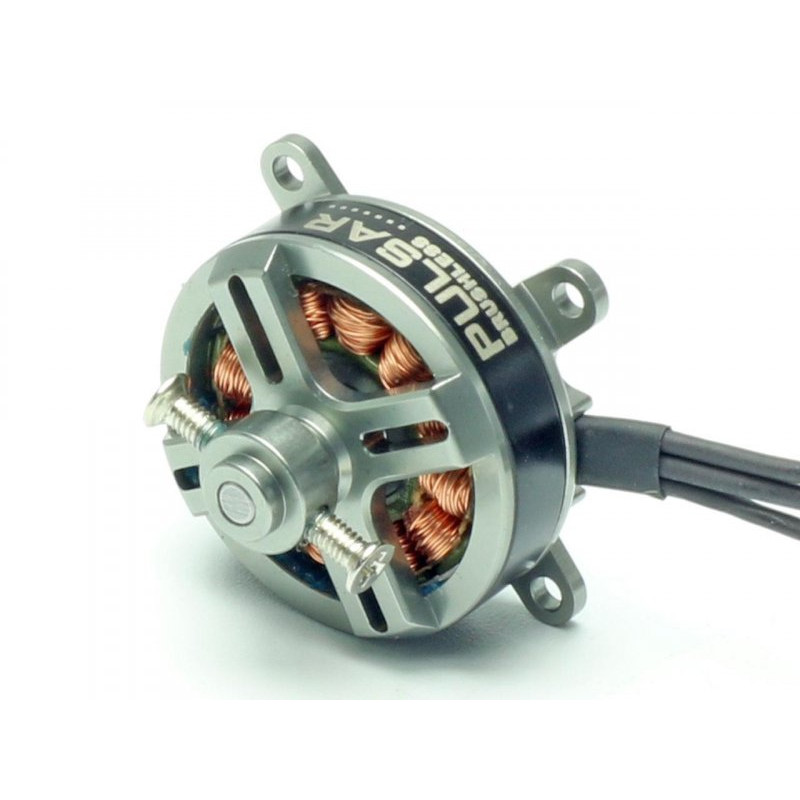

PULSAR MOTOR 2204 / 2200 KV PRO

New design - more power.

When developing our Shocky Pro series of motors, we aimed to build the best motors in this class. Our experience with small brushless runabouts goes back to 2005. At that time, we were one of the first suppliers of motors in the 20g class.

Shocky Pro motors are available in different versions and are generally suitable for small model aircraft. They are perfect for 3D models weighing up to about 200g of takeoff weight. The motors have an integrated 4-point mount and can be bolted directly to the engine baffle. This motor is designed to work with Lipo 2S batteries.

Specifications:

• Dimensions: 27 x 13 mm
• Weight: 22 g
• No-load speed per volt: 2200 rpm (KV)
• Configuration: 12N14P (12 grooves / 14 poles)

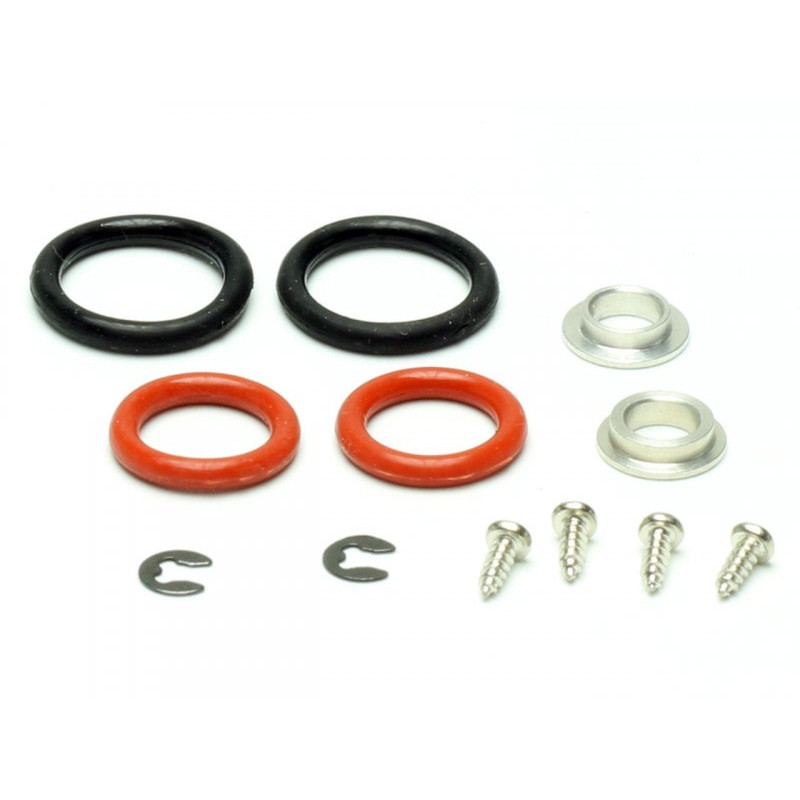

• Propeller mount: 5.5mm (7mm and 8mm adapter rings included)
• Technical table with Pulsar motors in the "Attachments / Instructions" tab above the description.
