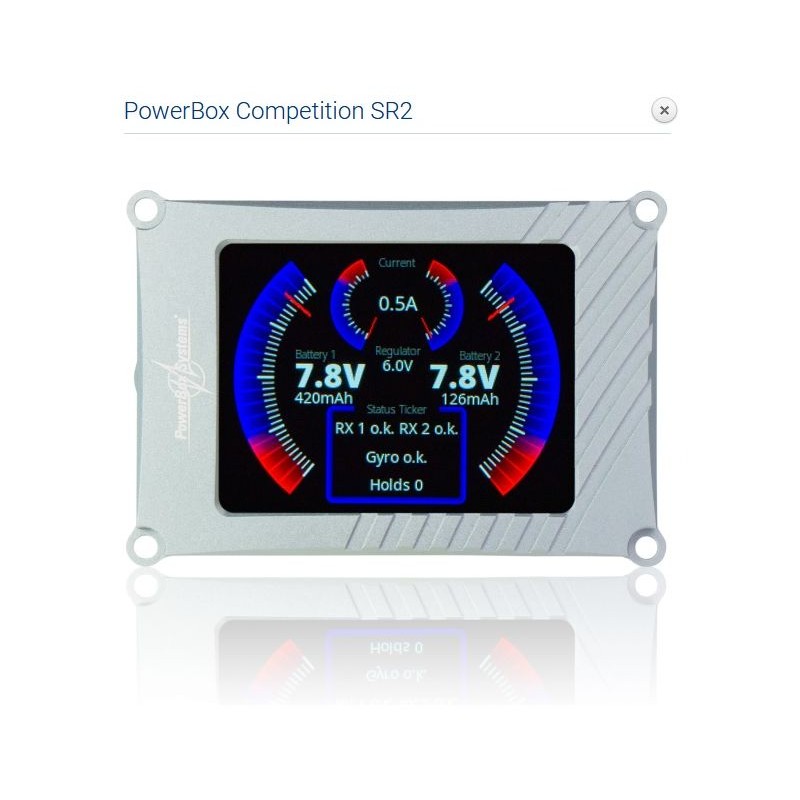

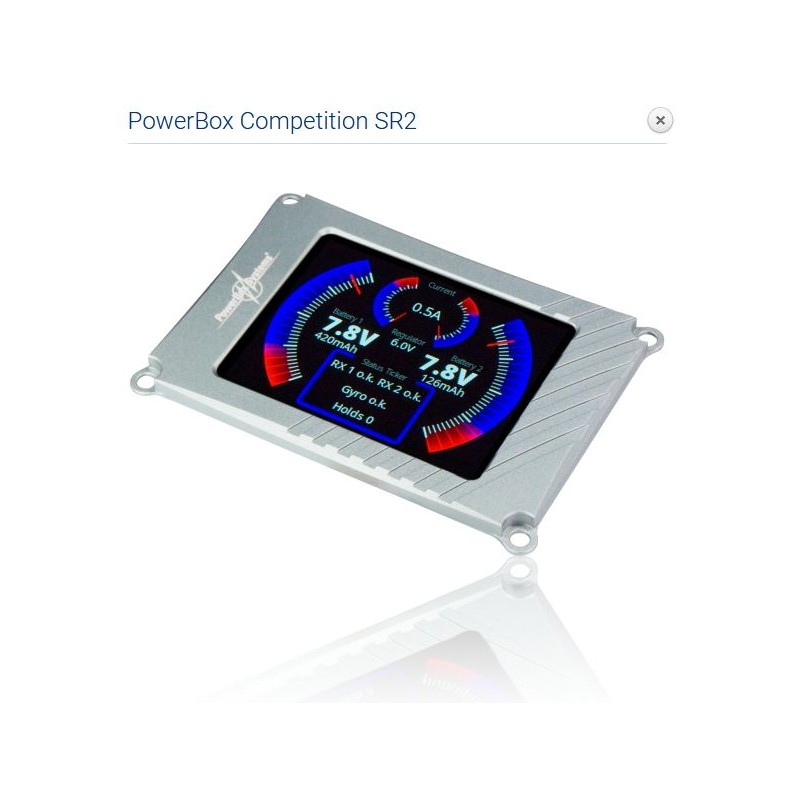

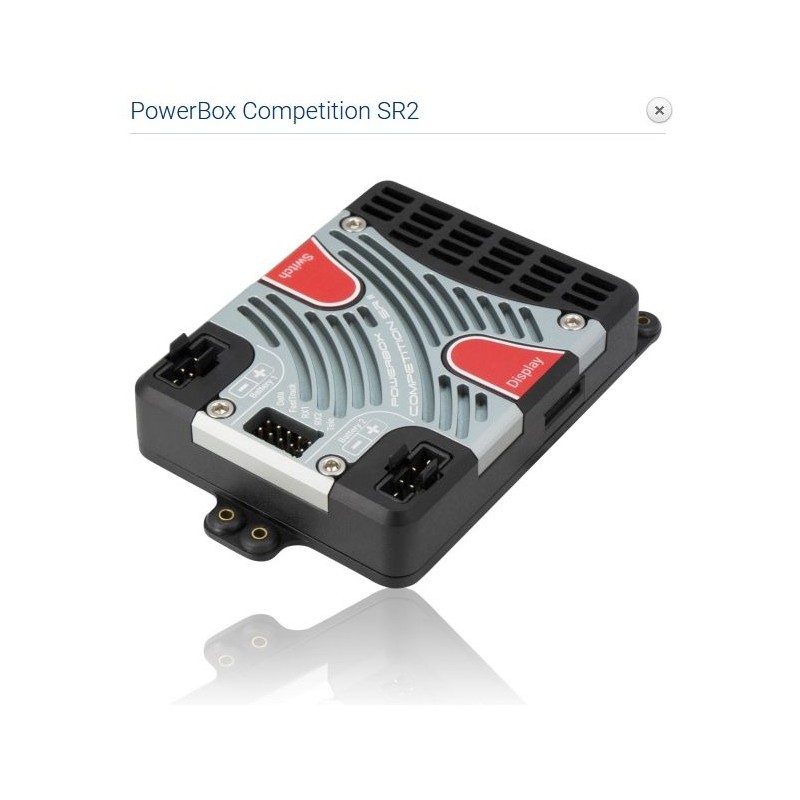

PowerBox Competition SR2 + Sensor Switch + TFT-Display (No. 4450)

Soon 10 years will pass when the first PowerBox SRS device was introduced. At that time, it was a milestone in the deployment of receivers using our new type of technology. Unlimited assignment of outputs, matching of servos, and linking to early telemetry systems were unique features and remained so for a long time. The technology is still evolving, and the requirements of modellers are becoming more and more stringent. INPowerBox SystemWe proudly present our latest achievement: PowerBox Competition SR2. With a new exterior and the latest technology, this single unit combines over twenty years of experience in aviation electronics design and construction. The exterior changes are immediately visible: the most obvious and eye-catching feature is the new full-color TFT screen that is clearly readable even in direct sunlight. At the same time, we were able to significantly reduce the overall size of the Competition SR2. The associated sensor switch with a TFT screen is housed in an aluminum housing that matches the high-quality appearance of the SR2 itself. However, the most important innovations only become visible when the device is turned on. The main display contains all relevant data - including battery voltage, current, capacity consumed and all information relevant to the receiver. Messages about iGyroSAT or are also displayed on the screenGPS III, if connected to the system. When used in conjunction with the optional iGyroSAT sensor, the system offers twelve gyro axes to support each existing model variant. The highly refined Setup Assistant allows the pilot to set up complex models such as double thrust vector, ailerons and tails types in just a few minutes. After completing the setup of the Setup Assistant, the transmitter channels are assigned, the gyro directions are set, and the servos are connected to the outputs. The servo matching function is now displayed graphically on the screen, and the PowerBox Competition SR2 also allows the servo response to be adjusted using five curve points. A new feature is automatic servo matching. It's very simple to assign and select one or two servos in addition to the primary one, and these two or three servos can be precisely matched in just a few seconds with a single button press! The Competition SR2 features two independent door sequencers. The standard function is intended for the retractable landing gear, while the latter can be used to implement systems such as a snap-on cab control system without any additional hardware. If you are using a PowerBox or Jeti RC system, virtually all functions (except the sequencers and Setup Assistant) of the Competition SR2 can be controlled and adjusted via the transmitter. SR2 handles every aspect of battery and receiver data telemetry on all supported systems. If connectedGPS III, data is also availableGPS - limited only by the capabilities of the RC system used.

Product features:

- 22 channels
- high-performance battery carrier with high charging capacity
- 2.4 ”TFT screen readable in the sun
- bilingual menu system
- consistent duplication of all the power of electronics
- additional electronic switch
- servo matching for all 22 outputs
- automatic matching function
- two independent door sequencers with a Setup Assistant
- the latest integrated iGyro technology, using iGyroSAT as a gyro sensor
- twelve independent gyro outputs for: 4x ailerons, 4x elevator, 4x rudder
- individual control for all twelve gyro outputs

Technical data:

• Working voltage 4.0 V - 9.0 V
• Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd / NiMH
• Current consumption 260mA on state
• Standby current consumption 30µA
• Maximum load current 2x40A (
• Waste voltage 0.3V
• 6.0V, 7.4V, 7.8V output voltage, unregulated
• Serial signal input

More information can be found on the manufacturer's website
