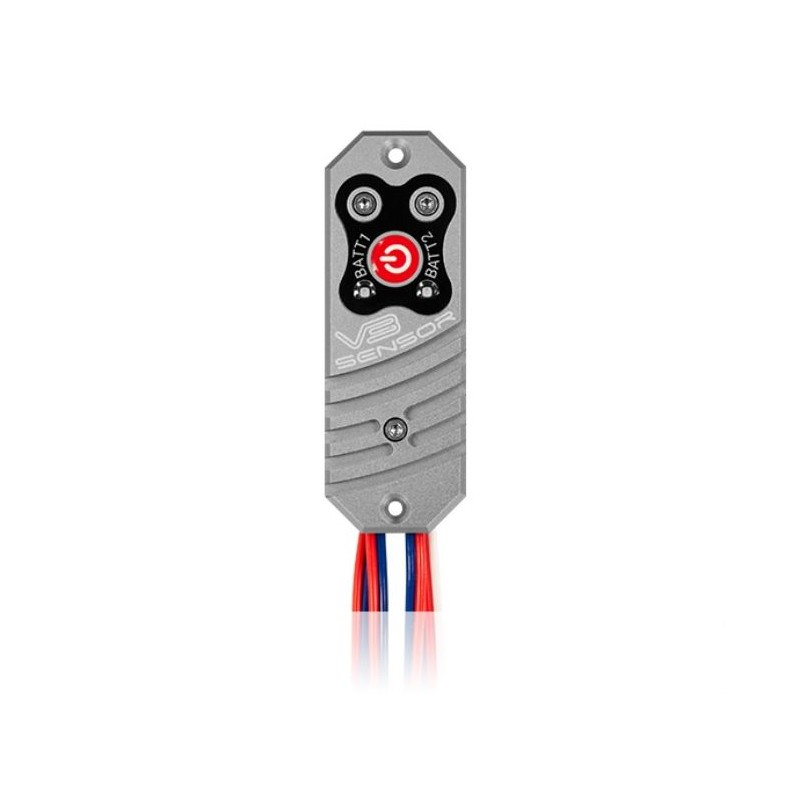

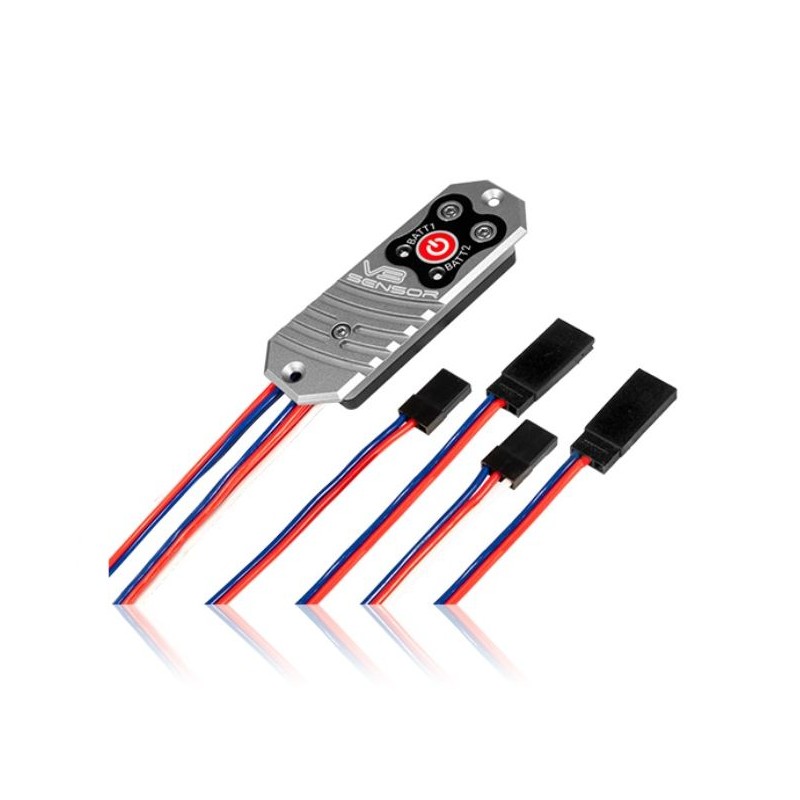

The PowerBox Sensor V3 is the third generation of the world-renowned PowerBox sensor. For nearly two decades, the PowerBox sensor has represented the standard for small and medium-sized models thanks to its compact format and versatility. By using the latest components, we were able to significantly reduce the size of the Sensor V3. For example, the envelope is now exactly half the size (11 mm compared to 22 mm). Nevertheless, the Sensor V3 still neatly fits into the aperture used by its predecessor. The introduction of a top-quality aluminum housing, machined and anodized, has brought a significant increase in the device's cooling capacity, resulting in a maximum continuous current capacity of the PowerBox Sensor V3 that is about 35% higher. In fact, the peak load capacity is twice as high: Sensor V3 can handle more than 20 A for a few seconds! The Sensor V3 offers two user-selectable output voltages: for normal servos it can be set to an adjustable 6.0 V, while an adjustable 7.8 V is available for HV servos - provided the batteries provide the higher required input voltage. The unit can be powered by four different battery types: LiPo, LiIon, LiFePo, NiMH. Ultra-bright RGB LEDs indicate the battery voltage; they light up in different colors to indicate the charge status of the batteries. CORE users also benefit from one special additional feature: both battery voltages can be displayed directly on the transmitter via telemetry.
Features
- High-performance battery power supply
- Ultralight unit, compact format
- Dual adjustable output voltage
- Redundant switch and regulator circuits
- User-selectable output voltage: 6.0 V or 7.8 V
- Separate RGB LED voltage indicators for each battery pack
- Telemetry support for CORE systems
- Supports 4 different battery types: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH
- Regulator monitoring
- Servo feedback current suppression
Specifications:
- Operating voltage: 4.0 V - 9.0 V
- Power supply: 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMh
- Current consumption: On state 30 mA
- Current consumption: Standby 10 µA
- Maximum load current: Peak 2x 10 A
- Dropout voltage: 0.25 V
- Output voltage: 6.0 V / 7.8 V adjustable
- Connectors: JR/JR
- Dimensions: 65 x 26 x 11 mm
- Weight: 30 g
