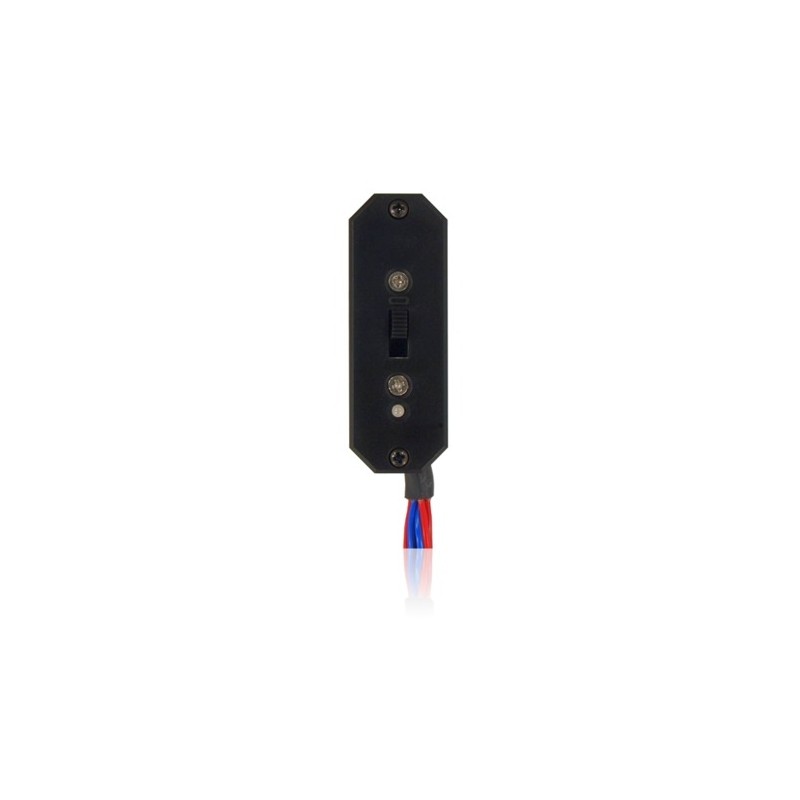

PowerBox 12 (No. 6110)

PowerBox 12 (No. 6110)

12-1492
Product available on request. If interested, please contact us by e-mail: sklep@modelemax.pl
The PowerBox 12 JR is a power manager with a safe high power switch. The product combines the functional features of a safe high-power switch with an effective power manager in a common housing that will fit into any model.
The power supply from the manager to the receiver and the connection of the batteries is made with double silicone cables with a cross-section of 0.34 mm2 with JR connectors. The switch has four double, silver-plated contacts, mounted on a "floating suspension". They are used to switch only the positive contact, the negative wire is contactless connected, which increases safety and reduces voltage losses.
All elements of the power manager are soldered to a single board. The cables are directly soldered and protected against vibration. Cables coming out of the housing are also protected against vibrations and twisting by heat shrink insulation and by gluing inside. The charging socket is separated from the inside of the switch by a partition that protects the device from dirt and dust.
PowerBox 12 is the simplest power manager. It increases the safety of the model through double power supply, a very good switch, and information about the power supply status.
Technical data:
  • external dimensions (flange) 64.8 x 23 mm, switch 51.15 x 20.10 mm, depth 21.5 mm to the flange
  • operating voltage: 4.8 to 6.0V, 4 or 5 cells NiCd / NiMh
  • max. current: up to 12 A.
  • power and battery status indicator: 3-color LED
  • charging socket: high current, both packages are charged in parallel
  • temperature range: -10 ° C to + 55 ° C
  • voltage loss: max. 0.25V
  • weight with cables: 35 g
