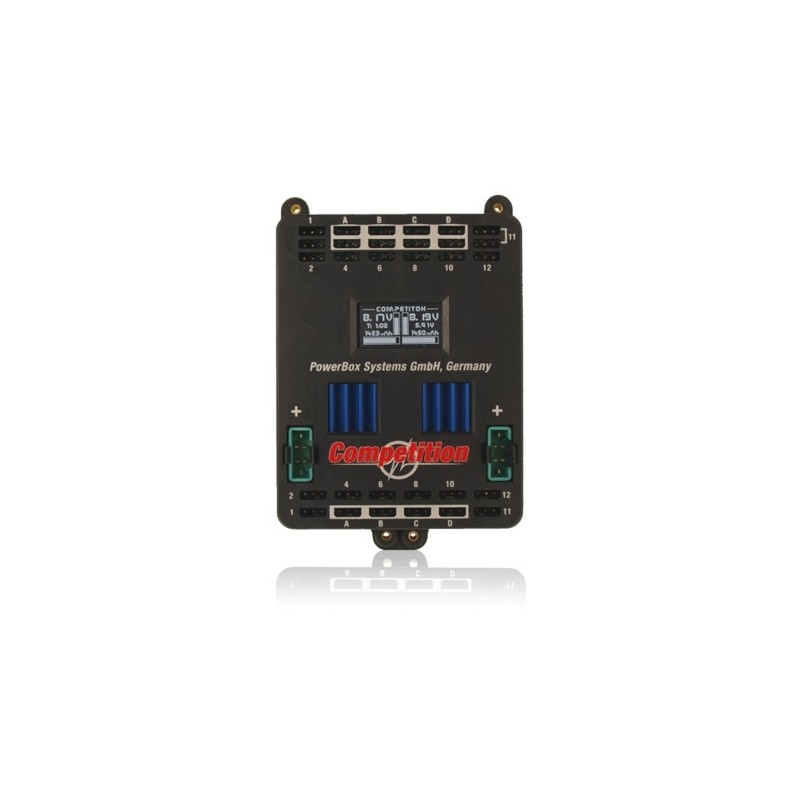

PowerBox Competition (No. 4430)

12-1483
Product available on request. If interested, please contact us by e-mail: sklep@modelemax.pl
The 2010 PowerBox Competition is a development of the first PowerBox with adjustable output voltage, which was presented for the first time in 2003. The PowerBox Competition has twelve output channels available to the receiver, four of which are equipped with a servo-match function. This makes it ideal for aerobatic models in the 25% to 35% class as well as for jets. The PowerBox Competition has twelve output channels, independent of the radio control system with which it is used. Four of them are equipped with a servo-match function. The purpose of the servo match function is to very accurately match the center point, end points and direction of rotation for each servo. This means that multiple servos mechanically connected to each other on a single control surface (e.g. aileron) can be tuned to run exactly parallel. As a result, they are able to develop their full power and use less electricity. The servo-match function can also enormously extend the service life of the servo. All settings are programmed via SensorSwitch in conjunction with the high-resolution OLED screen. All menu items are displayed in full text on the screen (not shortcuts) making the procedure much easier to understand. The PowerBox Competition offers the possibility of linking telemetry to various radio control systems. This feature allows the pilot to monitor the voltage of both batteries on the transmitter screen. The receiver sends data directly to the transmitter screen. Alarms such as low battery are also generated on the transmitter itself.
The high-resolution OLED screen displays the voltage and capacity of both the batteries as well as the actual output voltage. The PowerBox Competition supplies an adjustable output voltage of 5.9V or 7.4V, making it an excellent choice for standard 6.0V servos, in both cases the constant output voltage ensures that the servos run continuously. The PowerBox Competition can be updated via a USB adapter.
Features:
  • Servo-Match function: Servo centering, end points and reverse for 4 channels and 8 servos
  • graphic OLED screen with a resolution of 128 x 64 pixels
  • extremely easy to use programming menu
  • 12 channels
  • signal amplification and noise suppression for all 18 outputs
  • Variable number of frames per second 9ms - 21ms
  • 16-bit processor for fast processing of high-resolution signals
  • double regulated output voltage for receivers and servos
  • voltage regulated with 5.9V or 7.4V selection function
  • connection equipment for Futaba, Jeti, Spektrum, Hott and Multiplex MSB s-bus downlink systems
  • direct transmission of battery voltage to the transmitter
  • separate display for voltage and capacity of each battery
  • large surface area heat sinks
  • support for three types of batteries: LiPo, NiMH / NiCd, LiFePo
  • Suppression of servo reverse currents that may occur
Technical data:
  • working voltage: 4.0V - 9.0V
  • battery: 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd / NiMH
  • power consumption in standby mode: 130 mA
  • power consumption in standby mode: 15 μA
  • current flow: max. 2x20 A.
  • voltage drop: max. 0.3V
  • output voltage: 5.9V and / or 7.4V
  • input signal: PWM
  • supported RC systems: Spektrum, Futaba, HoTT, M-Link, Jeti, JR
  • servo slots: 21
  • programmable servo outputs: 4 channels, 8 servos
  • servo signal resolution: 0.5 μs
  • Frame signal: 9 ms, 12 ms, 15 ms, 18 ms, 21 ms
  • OLED screen: 128 x 64 pixels
  • supported telemetry systems: Spektrum, HoTT, M-Link
  • dimensions: 110 x 72 x 24 mm
  • weight: 115 g
  • working temperature: -30 ° C to + 75 ° C
