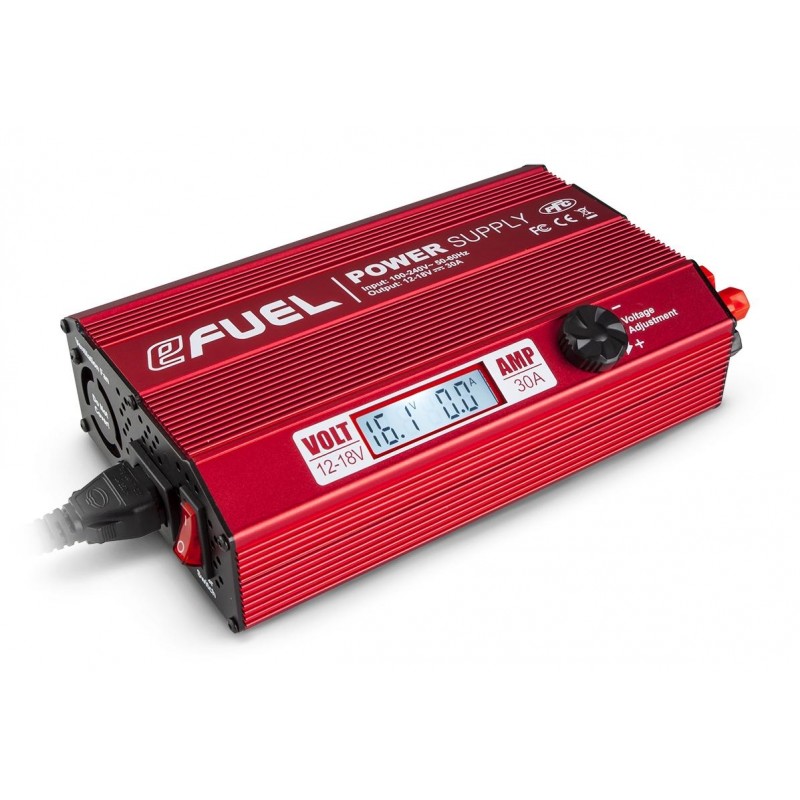

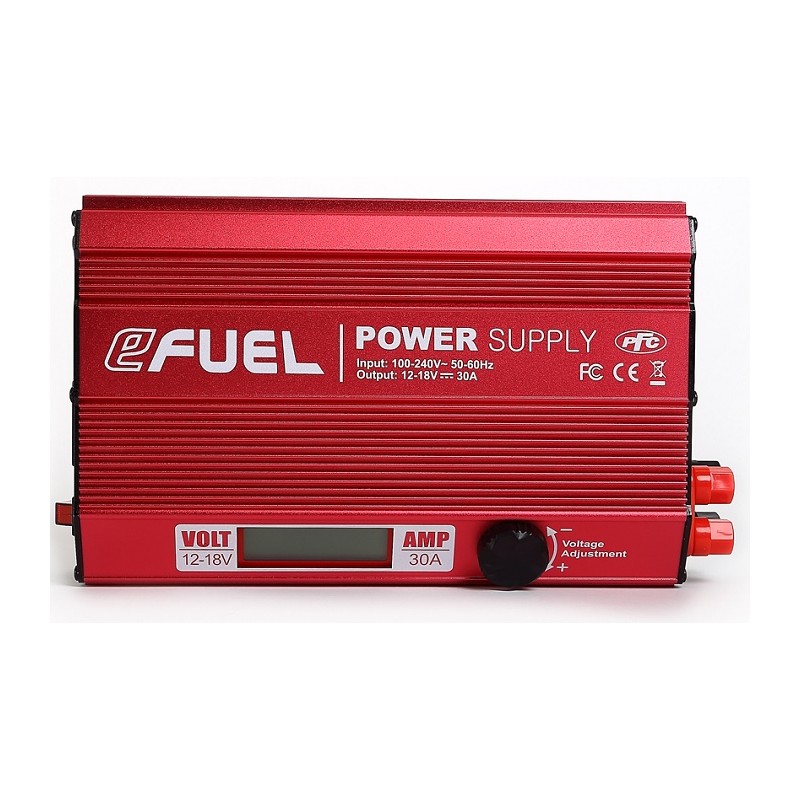

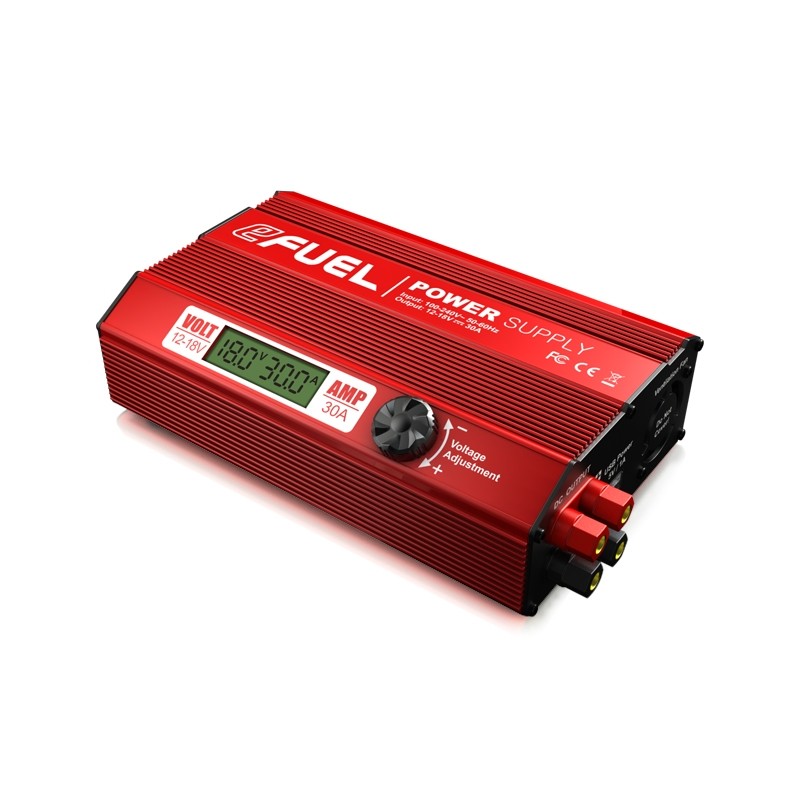

SkyRC POWER SUPPLY 540W/30A

Power and possibilities:

The power supply with an output power of 540W supports the voltage of 12-18 V, has a built-in PFC, which is an important aspect in all power supplies. eFuel is perfect for high voltage and three port chargers as well as other devices. The power supply range of 100-240 V allows universal use without the need to set up the DC port. High power and functional design allow you to take the power supply on a trip and in the field.

Functionality:

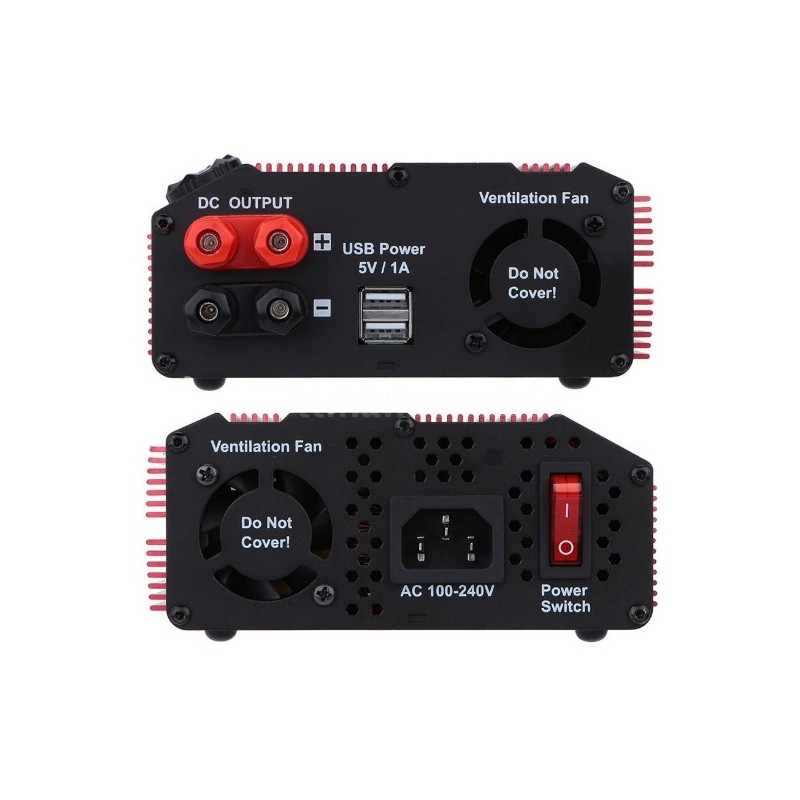

The dual DC port supplies up to 30 amps. Thanks to this solution, the power supply offers many power options. On the right side of the power supply, there are also two USB ports for powering external devices (e.g. a smartphone, an MP3 player or a tablet). In turn, on the left side is the main power switch.

Simple operation:

The eFuel power supply model has a convenient knob for voltage regulation in the range of 12 - 18 V. On the other hand, the readable LCD screen displays the current output voltage and current, which greatly facilitates the operation of the power supply. The universal AC 100 - 240 V power supply means that the power supply can be used all over the world without the need for network adapters.

PFC input:

An active PFC input means less noise when powered by AC power. It is a system responsible for the change / correction of the power factor value, i.e. the change of the phase shift angle between the current and voltage. The phase shift between the current and voltage causes the release of reactive power.

Technical data:

• Voltage: 100-240 V / AC
• Frequency: AC 50-60Hz
• Output voltage: 30A ± 1A
• Short circuit protection: ≤31 A 500 MS
• Input Fuse: 10 A Fuse
• LCD screen: ± 0.3V
• Efficiency: 89%
• Temperature protection:
• Weight: 1.62 kg
• Dimensions: 218 x 139 x 59.5 mm

Follow the attached instructions.
