PNEUMATIC CHASSIS 2-5 (MSP2-20005)

Aluminum 3-piece complete pneumatic landing gear for models class .40 - .60 with the possibility of adapting to the retractable landing gear. Cushioning is done by a compression spring.

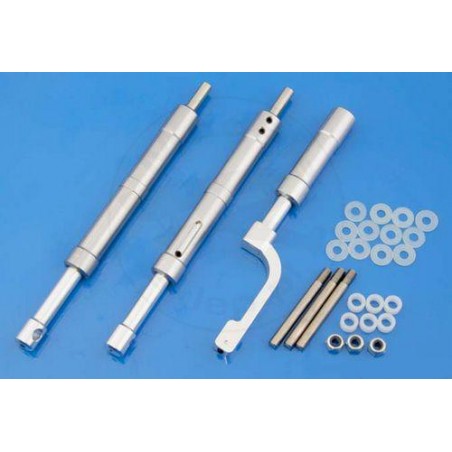

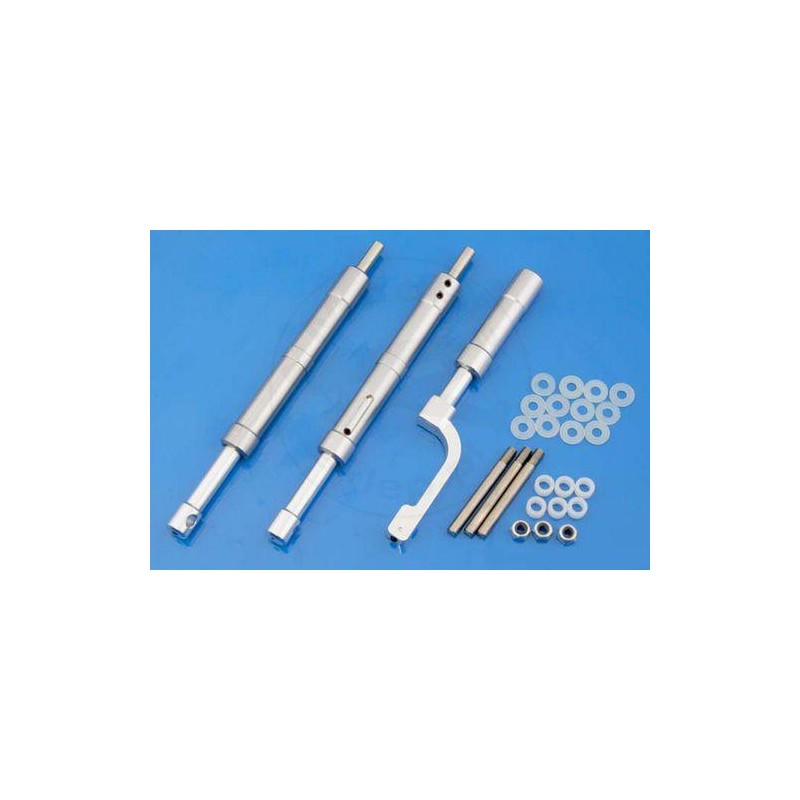

The kit consists of 1 single wheel front shin and two straight sub-wing shins.

Main shin dimensions:

• overall length: 121 mm
• socket length: 85 mm
• outer diameter of the socket: 11.5 / 10.5 mm
• outer diameter of the piston: 9/7 mm
• shock absorber travel: 15 mm
• wheel axle diameter: 4 mm
• total length of the wheel axle: 45 mm

Front shin dimensions:

• overall height: 116 mm.
• slot height: 48 mm.
• outer diameter of the socket: 11.5 / 10.5 mm.
• Piston diameter: 7 mm.
• piston stroke: 7 mm.
• wheel axle diameter: 4 mm.
• total length of the wheel axle: 45 mm.
• for a wheel with a max. outer diameter: 69 mm.
