ADLER PISTOLET LAKIERNICZY mini R-2/K3 (

As the name suggests, HP (High Pressure) spray guns, also known as conventional or traditional, need the highest pressure to supply the gun from all groups of guns. This results in reduced air consumption, which is a definite advantage. The design of traditional guns means that such even, high pressure is also present on the nozzle, it causes very high dusting, i.e. enamel or varnish loss of approx. 65% and reduced coverage efficiency of approx. 35%. This entails significantly increased costs for paint materials, but allows for painting with a cheaper, less efficient compressor.

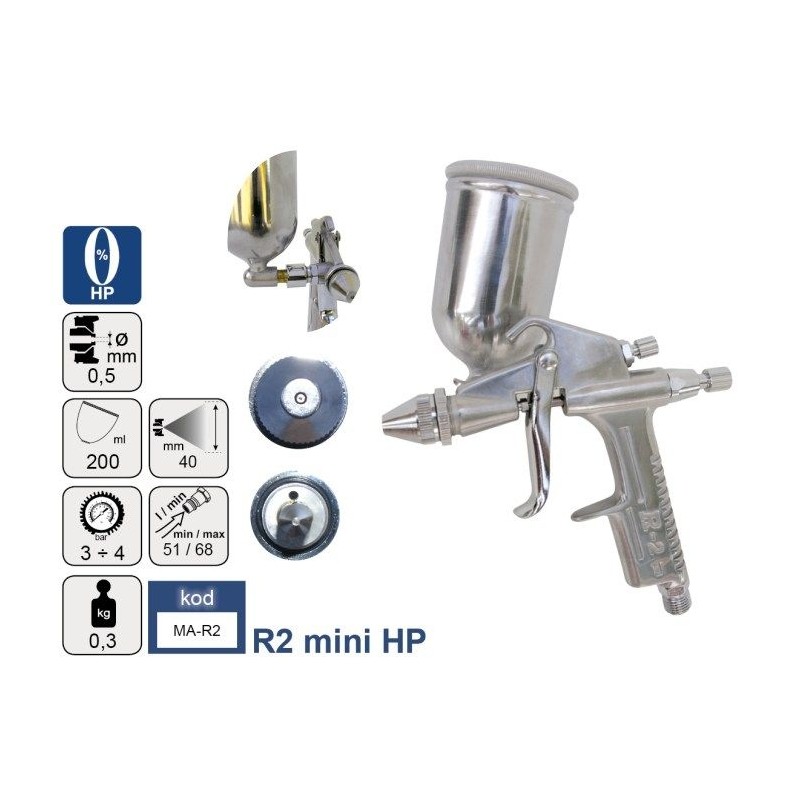

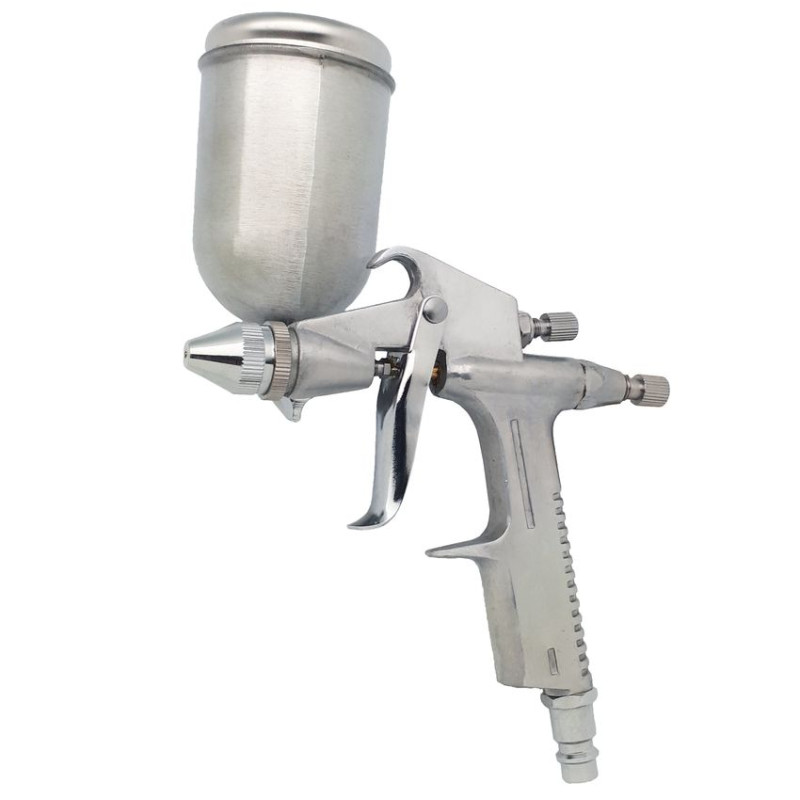

The R-2 mini HP model is a mini high pressure spray gun. The gun is equipped with an upper, gravity, metal tank with a capacity of 200 ml, mounted on the side. It has a rear adjustment of the amount of paint and air. The width of the fan cannot be adjusted. The gun has 0.5 mm nozzles. 1/4 thread on air inlet. A handy little spray gun for painting small areas, for painting small patterns, e.g. with the use of stencils.

Technical data:

• Name: R-2 mini HP

• Product code: MA-R2
• Gun type: high pressure (HP)
• Tank type: top (gravity)
• Tank capacity: 200 ml
• Nozzle diameter: 0.5 mm
• Fan width: 40 mm
• Air consumption: 51 - 68 l / min
• Working pressure 3 - 4 bar
• Weight: 0.3 kg
