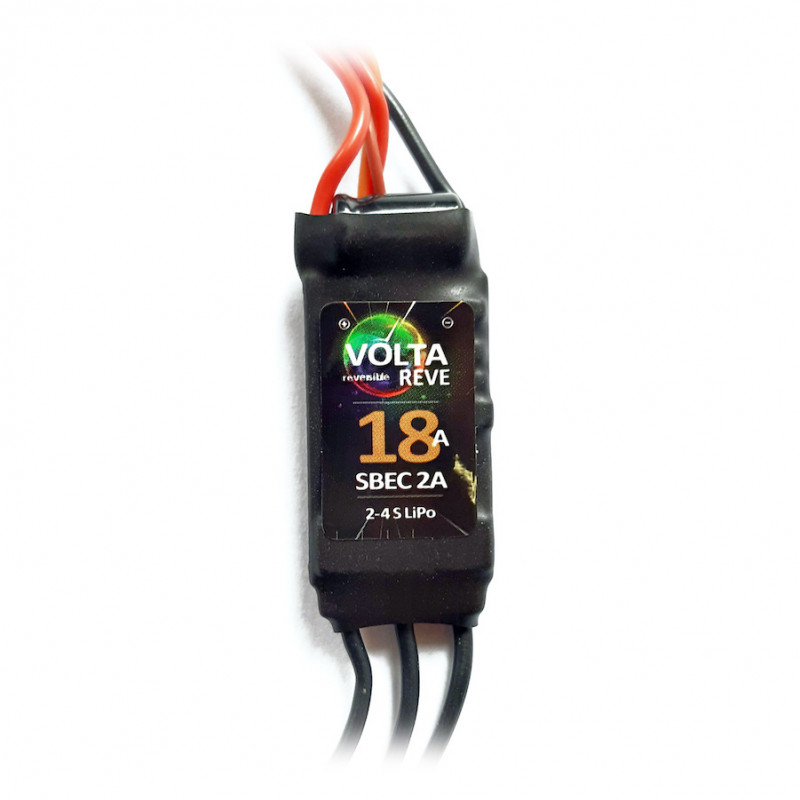

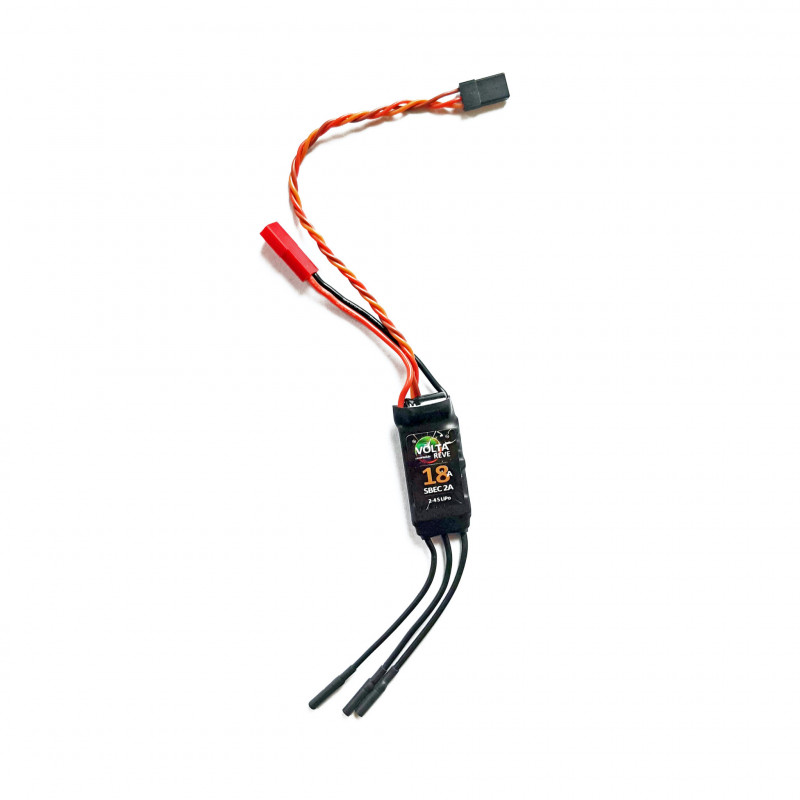

VOLTA 18A REVE speed controller

Volta Reve 18A is a 'reversible' brushless speed controller. It is capable of controlling the motor in both directions and can quickly switch between them. It can be used for so-called "4D flying", where the model can hover under the propeller down or fly backwards, etc. Compared to the "4D" variable pitch propeller, this system is much simpler and crash-proof. It would be best to prepare different flight conditions (if your transmitter allows it) so that you can switch between normal mode and 4D. Watch the video on this page to see how to do this.

Calibration:

Quick start: turn on the transmitter and set the throttle stick to the "max" position. Connect the model battery. After a few beeps, pull the stick to the center. After a while, you will hear another beep and now you have 4D ESC: from half throttle (on the stick) up, the aircraft works normally. From half throttle down, it works in reverse.

Key features:

• Weight: 12 g
• Power supply: 2-4S
• BEC: 4A
• Size: 28x15x5mm

*Follow the included instructions.
