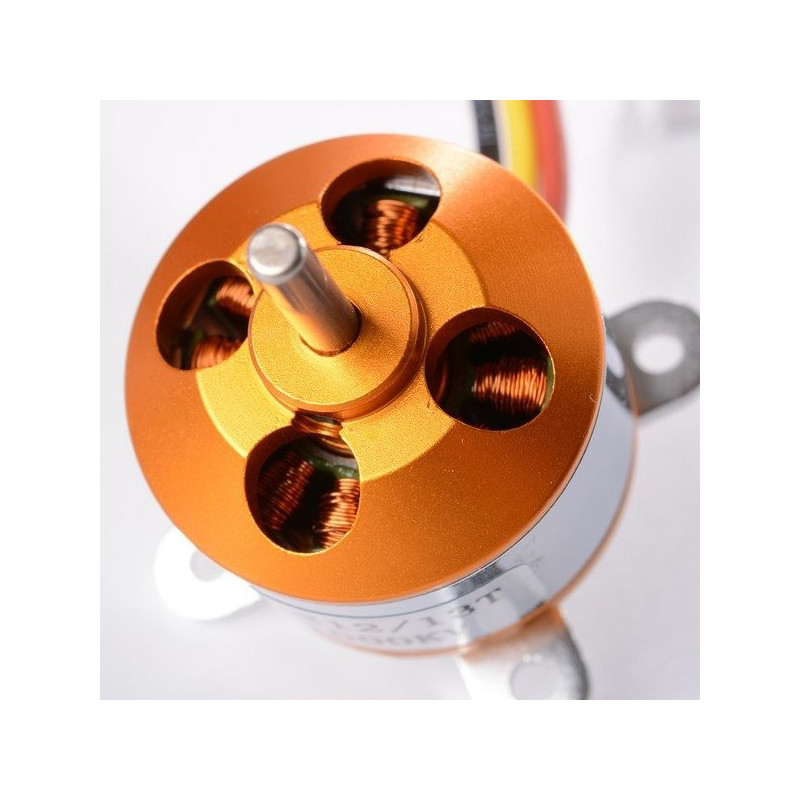

POWER MOTOR A2212 / 2200KV

Electric brushless motor for model aircraft.

Specifications:

• Number of Targets: 2 - 3 Li-Poly
• Number of Targets: 5 - 7 NiCd / NiMH
• Kv: 2200 RPM/V
• Max. efficiency: 75%
• Max. current output: 14 - 22A (>72%)
• No-load current: 1.4A @10V
• Resistance: 0.045 ohms
• Max current: 28A for 60 sec.
• Power: 220W
• Thrust: 650 g
• Weight: 51.5 g
• Dimensions: 27.8mm x 31mm
• Shaft diameter: 3.2 mm
• Poles: 14
• Model weight: 300 - 1000 g

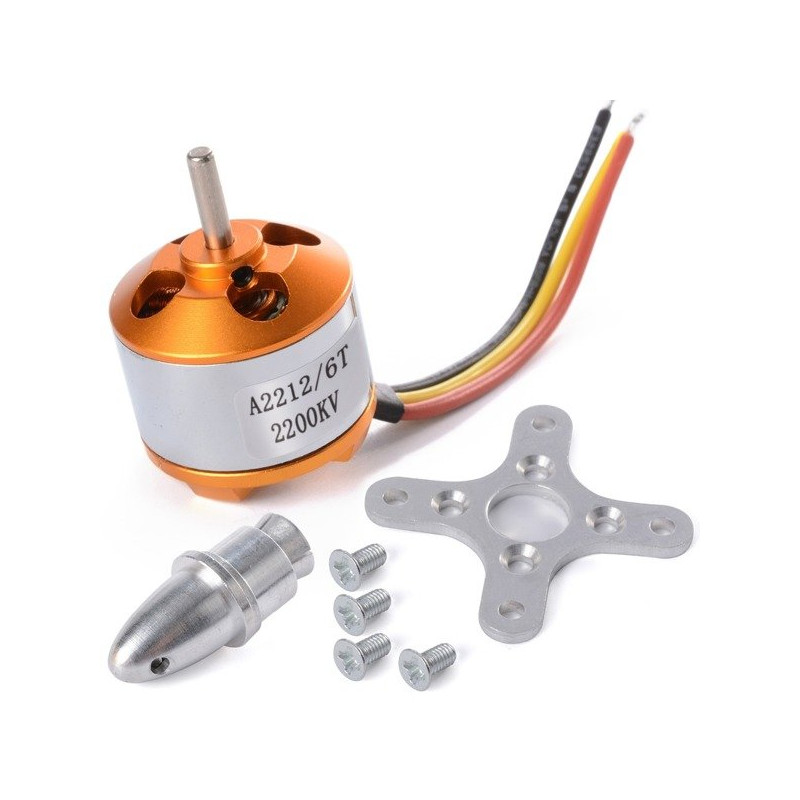

Kit includes:

• motor
• hub
• cross - bed
• screws for fixing the motor

NOTE - The length of the motor mounting screws

In order not to damage the winding, the length of the motor mounting screws should be adjusted accordingly. If the fixing screws are too long, they may damage the wires inside the motor. we will not consider this type of damage in the complaint.

*Follow the enclosed instructions.
