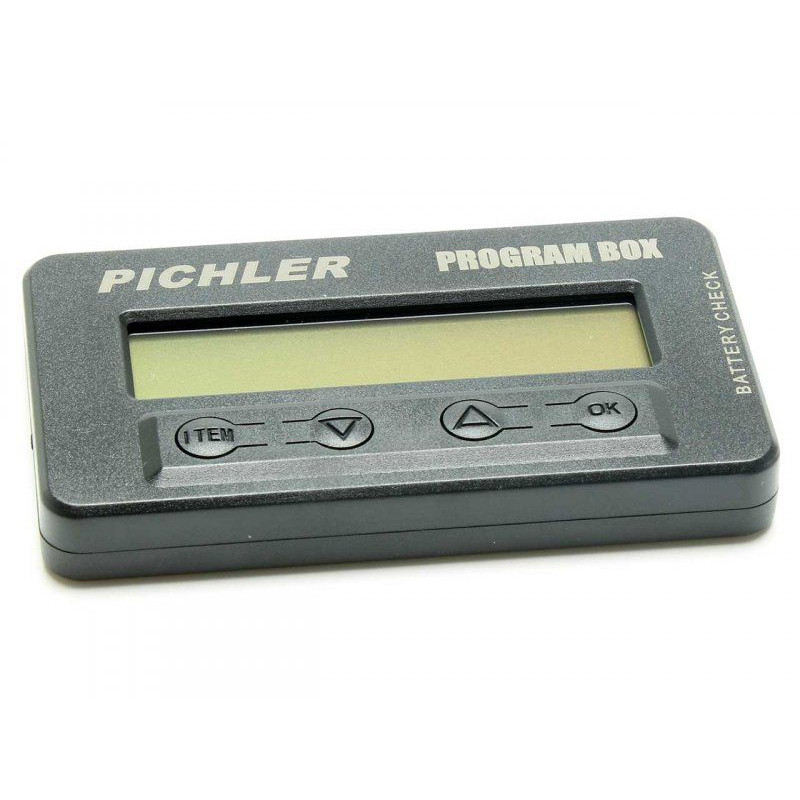

PICHLER PROGRAMMIERBOX - programming card (15966)

PICHLER and EXTRON brushless controllers can be easily configured using the Pichler programming device.

Integrated battery controller up to 8S and servo tester via the receiver's PWM output.

Included:

• programming device, 2 patch cables, DE/EN manual

Specifications:

• Dimensions = 87x49x11.5 mm
• Weight = 40 g / Operating voltage 5 - 12.6 V

Setup options:

• Battery type = LiPo, NiMH, NiCD
• Heli mode = RPM off / Level 1 / Level 2
• Initial behavior = Standard / Soft / Very soft
• Brake = On / Off.
• BEC = Output voltage 5 V / 6 V
• Timing = Automatic / Low (7-22°) / High (22-30°)
• Direction of rotation = Normal / Reverse
• Cutoff voltage = 2.8 V / 3.0 V / 3.2 V
• Motor cut-off mode = Reduced / Off.

For more information and pictures, please visit the manufacturer's website : TU

*Follow the instruction manual included with the product.
