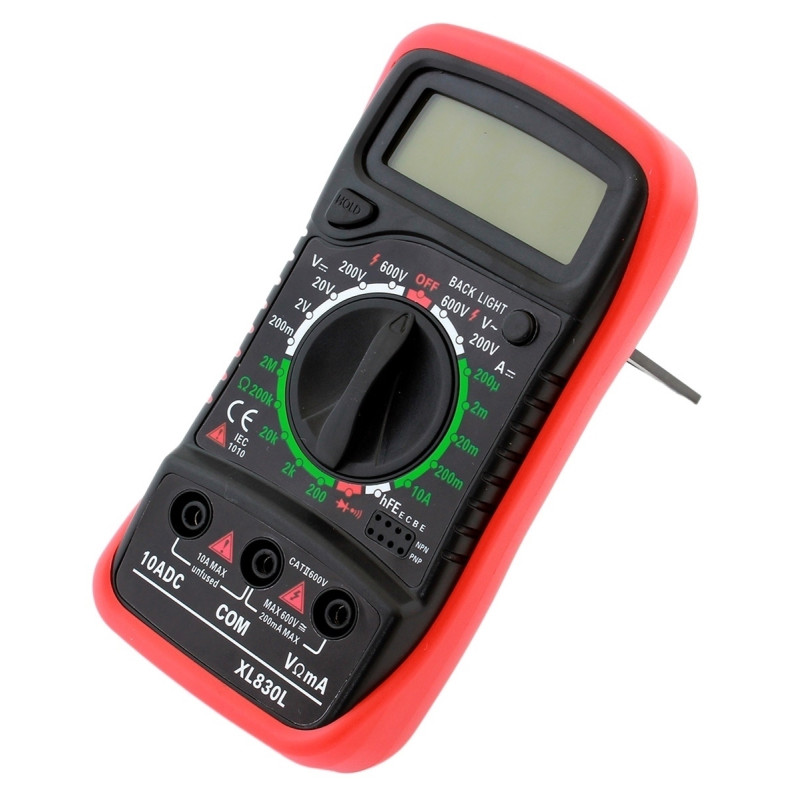

MULTIMETER XL830L electronic meter / RED (102D)

Electronic meter with an easy-to-read LCD display.

Specifications:

• Material: plastic (ABS)
• Power supply: 9V 6F22 battery (not included)
• Easy-to-read LCD display with blue backlighting
• Rotary switch (20 positions)
• Circuit continuity indication: yes (audible)
• Memory of last measurements
• Polarity indication
• Transistor test
• Diode test
• Dimensions: 6.9 cm x 13.8 cm x 3.1 cm
• Color: black and red

Indications:

• DC voltage: 200mV 2V 20V 200V 600V
• AC voltage: 200 V / 100 mV, 600 V / 1 V
• DC current: 200 μM A 2mA 20mA 200mA 10A
• Resistance: 200Ω 2kΩ 20kΩ 200kΩ 2MΩ
• Transistor hFE test: NPN and PNP 0 ~ 1000 1b = 10mA Vce = 3V
• Diode test
• Circuit continuity indication
• Polarity indication

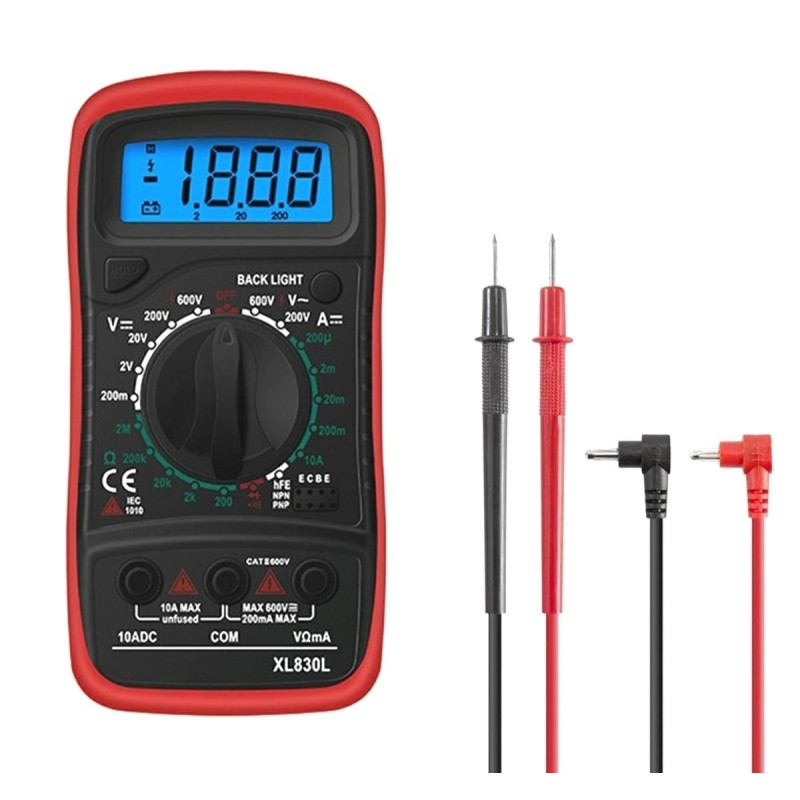

Included:

• Digital multimeter
• Set of test leads
• Rubber case
• Operating instructions

*Follow the instructions included with the product.
