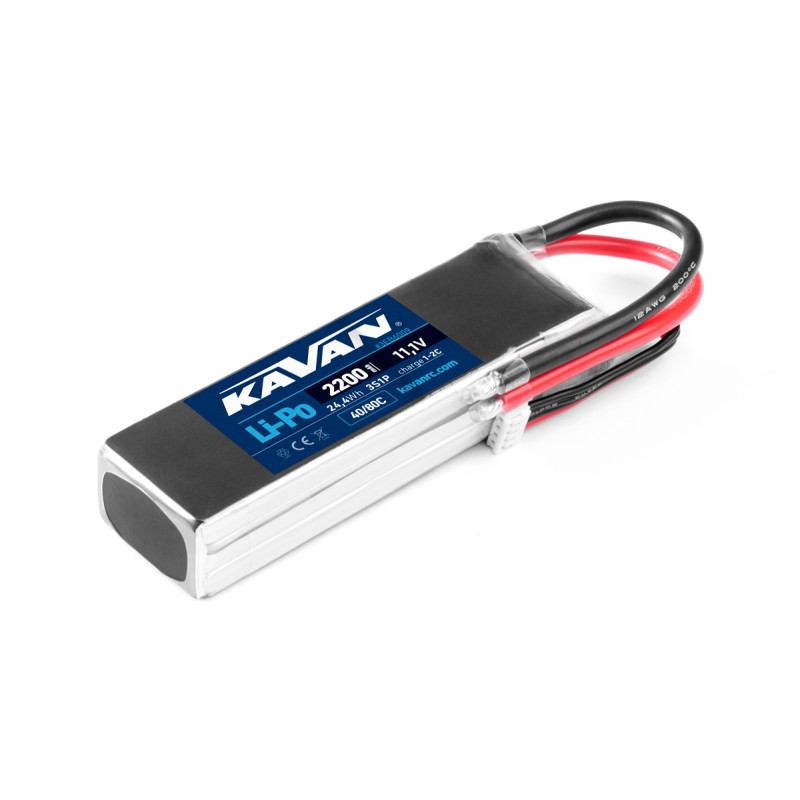

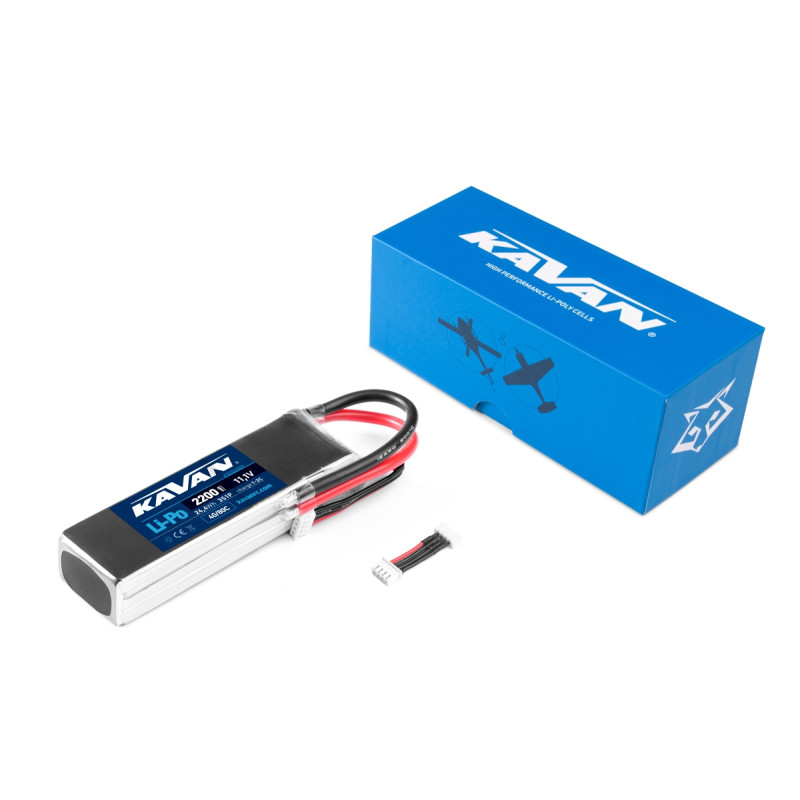

KAVAN Li-Po 11.1V/2200 mAh - 40/80C (6009)

Li-Po batteries from the renowned Kavan company dedicated to model airplanes and helicopters.

Product description:

• Capacity: 2200 mAh
• Voltage: 11,1 V
• Number of cells: 3
• Service connector: JST-XH
• Charging current: 1 - 2 C
• Discharge current: 88 A
• Discharge current max. - instantaneous: 176 A
• Energy: 24.4 Wh
• Length: 110 mm
• Width: 35 mm
• Height: 22.5 mm
• Weight: 166 g

BASIC USAGE INFORMATION !

• do not discharge below 3V/cell
• li-Po batteries require chargers that support the charging process of Li-Po cells / packs
• DO NOT CHARGE BATTERIES (applies to all Li-Po types) with ordinary chargers that do not have a charging algorithm dedicated to this type of batteries
• charge and store in special bags or containers designed for this purpose
• use only with regulators that allow operation with Li-Po batteries
• do not store with other conductive materials (possibility of short circuit) !
• do not expose to direct sunlight

• store away from flammable objects and heat sources

• do not disassemble packets and cells, do not remove from protective film
• do not leave unattended during charging !

• do not short-circuit the poles
• dispose of in designated places specializing in the disposal of this type of cells
• do not puncture, in case of mechanical damage to the cell - DO NOT USE !

General information about Li-Pol batteries you will find on our site in the section: Instructions.

* Follow the instructions attached to the product.
