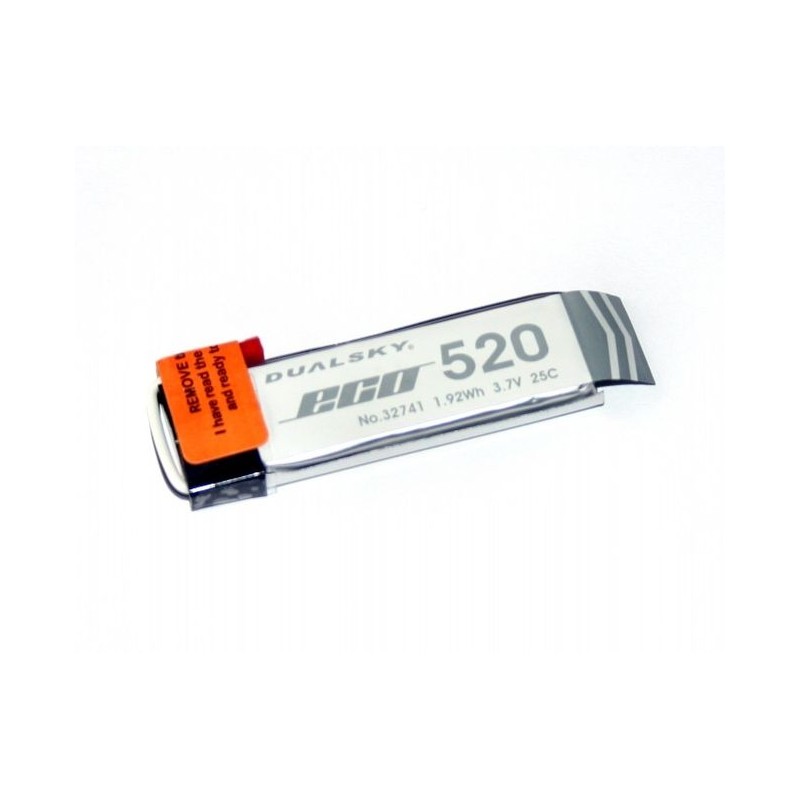

The battery is dedicated for use with models of small airplanes or helicopters with a JST power connector, especially for the Horizon Hobby Blade series helicopters.
Basic Features:
- Li-pol 520mAh cell
- voltage 3.7V
- discharge current: continuous 25C (13A)
- charging current: up to 5C (up to 1A)
- maximum power: 48W
- energy: 1.9Wh
- JST connector
- dimensions: 59x18x6mm
- weight 12.5g
IMPORTANT NOTES ON USING - do not discharge below 3V / cell
- Li-POL batteries require chargers that support the charging process of Li-pol cells / packages
- DO NOT CHARGE THE BATTERIES (applies to all LI-POL types) with ordinary chargers that do not have a charging algorithm dedicated to this type of batteries
- use only with regulators that enable work with Li-Ion / Li-Pol batteries
- do not store with other conductive materials (possibility of short circuit)!
- do not disassemble packages and cells, do not remove from the protective foil
- do not leave unattended while charging
- in case of mechanical damage to the link - DO NOT USE
|
