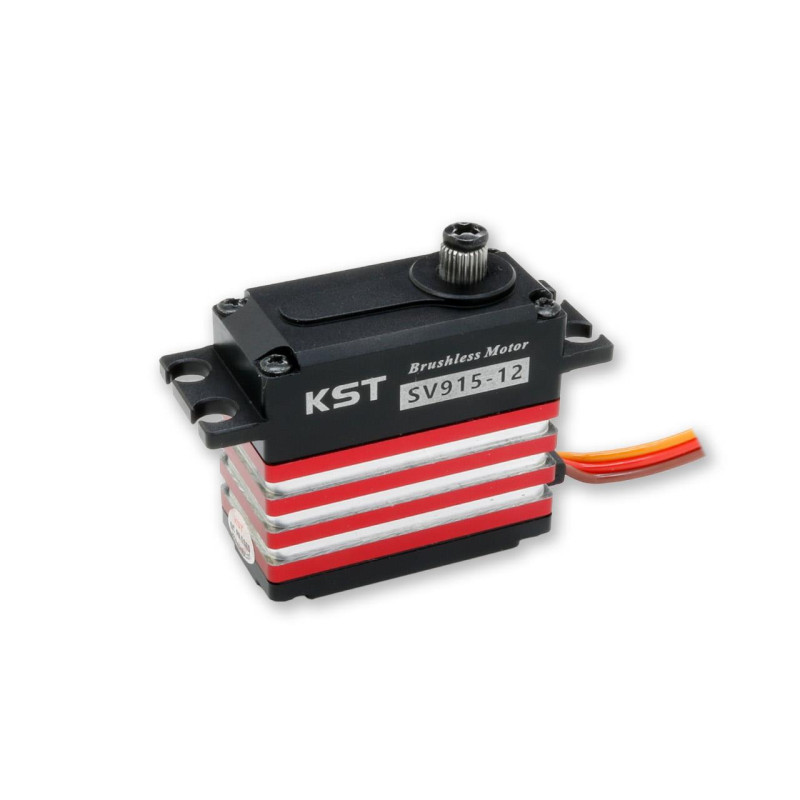

KST SERWO SV915-12 V3.0 DIGITAL (35kg-0,10s/60°) Soft start / 760us/560hZ

Digital servo from the renowned company KST. Excellent value for money.

!!! Attention !!! 760us can only be used with suitable gyro/FBL systems !!!

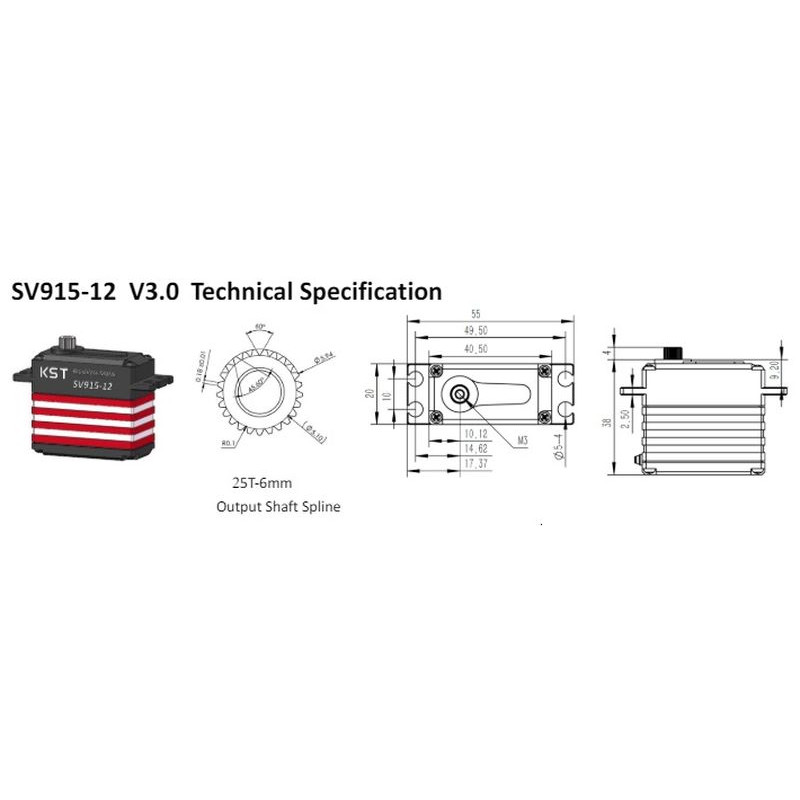

Technical data:

• power supply: 8V - 13V

• torque [kg/cm] at 8.4V: 24 kg
• torque [kg/cm] at 12V: 28 kg
• torque [kg/cm] at 13V: 30 kg

• speed [s/60°] at 8.4V: 0.10 s
• speed [s/60°] at 12V: 0.08 s
• speed [s/60°] at 13V: 0.07 s
• width: 20 mm
• length: 40.5 mm
• height: 38 mm
• weight: 70 g (+/-10%)

• motor: brushless

• frequency range: 760us/560Hz

• gearbox: metal / hardened
• bearings: 2 BB
• output shaft: 25T-6
• position sensor: potentiometer

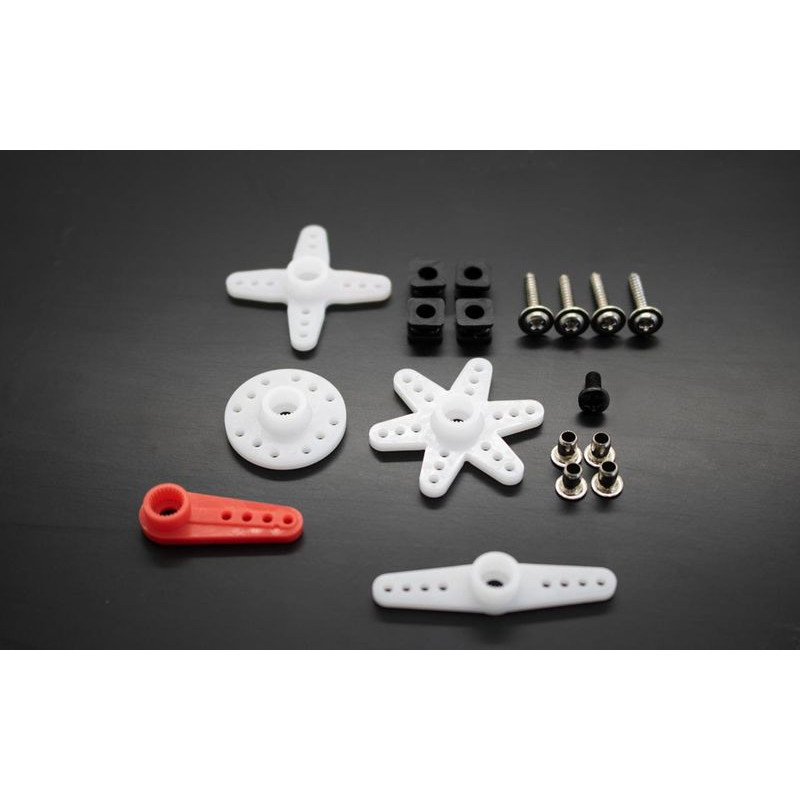

• set of levers included

*Follow the instruction manual included with the product.
