KST servo SV905-12 V3.0 DIGITAL (17kg-0.04s/60°) 12V / 760us/560hZ

Digital servo from the renowned company KST. Excellent value for money.

Technical specifications:

• power supply: 8V - 13V

• torque [kg/cm] at 8.4V: 13 kg
• torque [kg/cm] at 12V: 16 kg
• torque [kg/cm] at 13V: 17 kg

• speed [s/60°] at 8.4V: 0.06 s
• speed [s/60°] at 12V: 0.045 s
• speed [s/60°] at 13V: 0.040 s

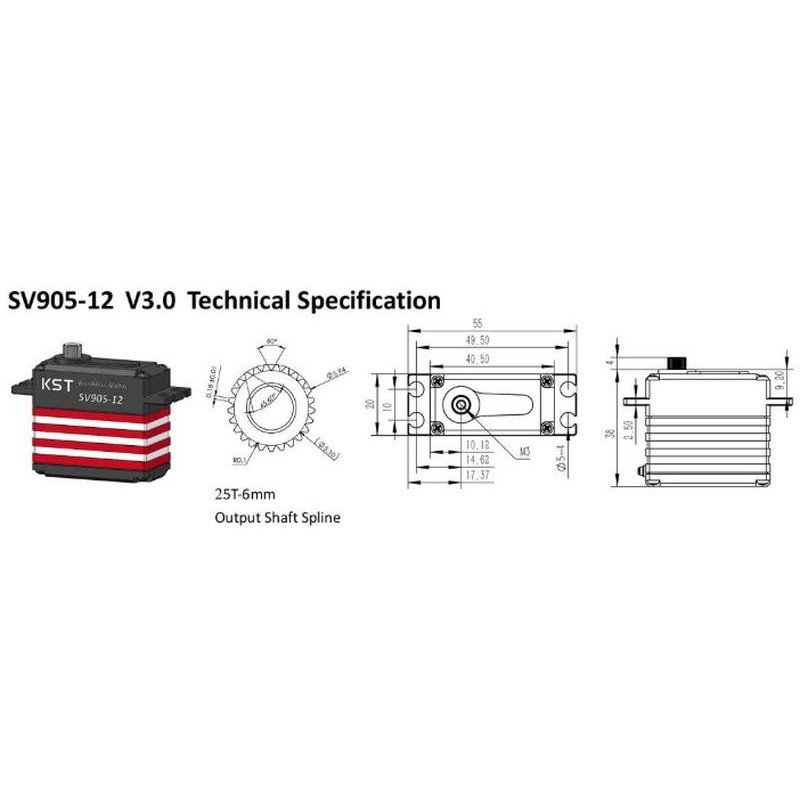

• width: 20 mm
• length: 40.5 mm
• height: 38 mm
• weight: 70 g (+/-10%)

• motor: brushless

• frequency range: 760us/560Hz

• gearbox: metal / hardened
• bearings: 2 BB
• output shaft: 25T-6
• position sensor: potentiometer

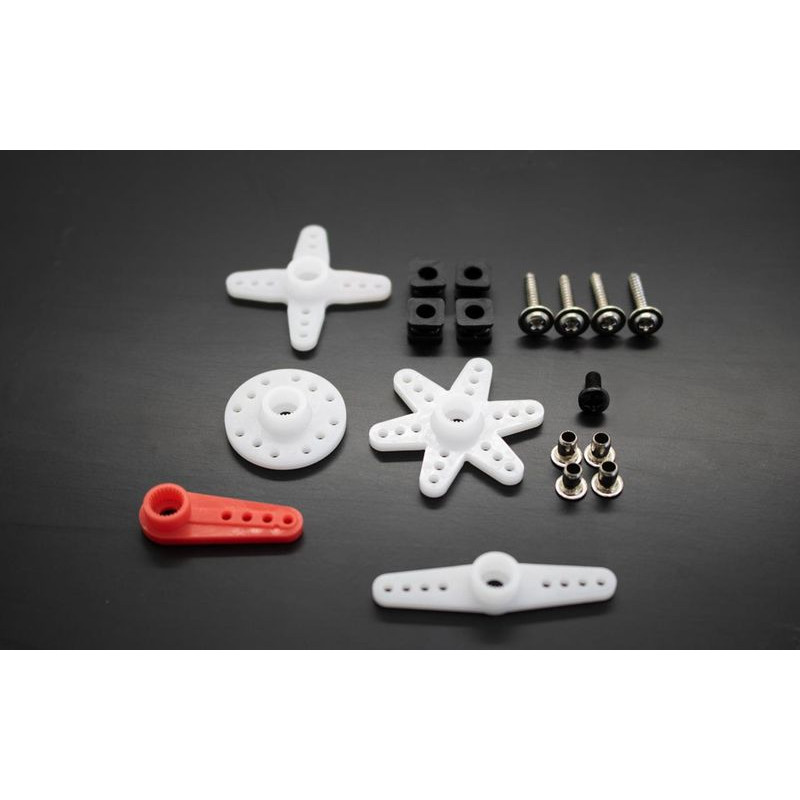

• set of levers included

*Follow the instruction manual included with the product.
