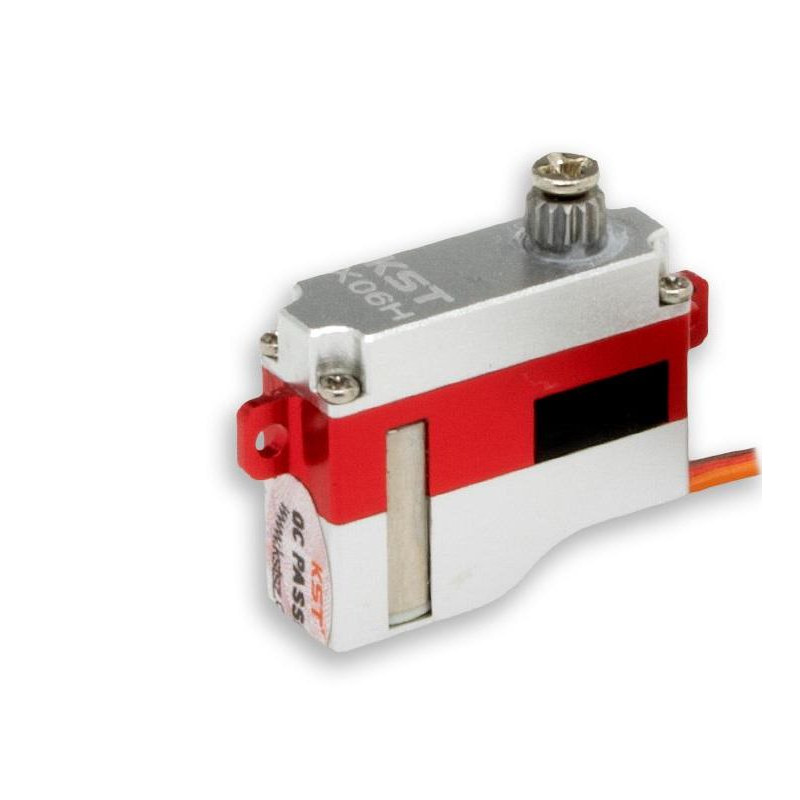

KST SERWO X06H V6.0 DIGITAL (1.8kg-0.07s/60°) / F3K, F5K, RES

Digital servo from the renowned company KST. Excellent value for money.

Technical specifications:

• power supply: 3.8V - 8.4V

• torque [kg/cm] at 3.8V: 0.8kg
• torque [kg/cm] at 6.0V: 1.5kg
• torque [kg/cm] at 7.4V: .... kg
• torque [kg/cm] at 8.4V: 1.8kg

• speed [s/60°] at 3.8V: 0.12s
• speed [s/60°] at 6.0V: 0.08s
• speed [s/60°] at 7.4V: ...s
• speed [s/60°] at 8.4V: 0.07s

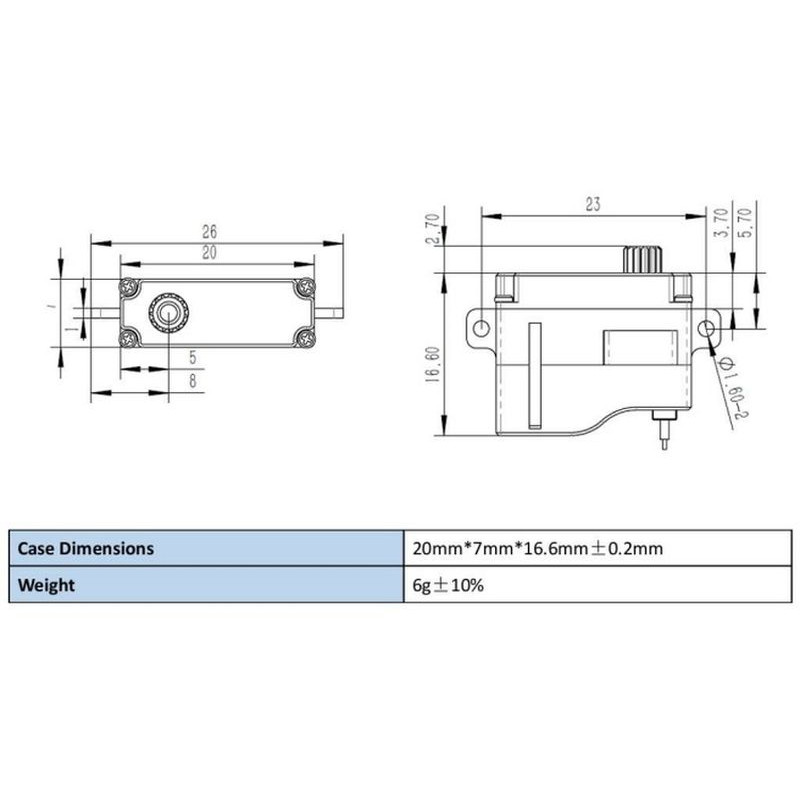

• width: 7 mm
• length: 20 mm
• height: 16.6 mm
• weight: 6 g

• soft start: programmable
• frequency range: 1520us/333Hz / 1000us-2000us

• gearbox: metal
• bearings: 1 BB
• output shaft: 15T-4
• dedicated for class models: F3K / F5K / RES (recommended starting weight: up to 500g)

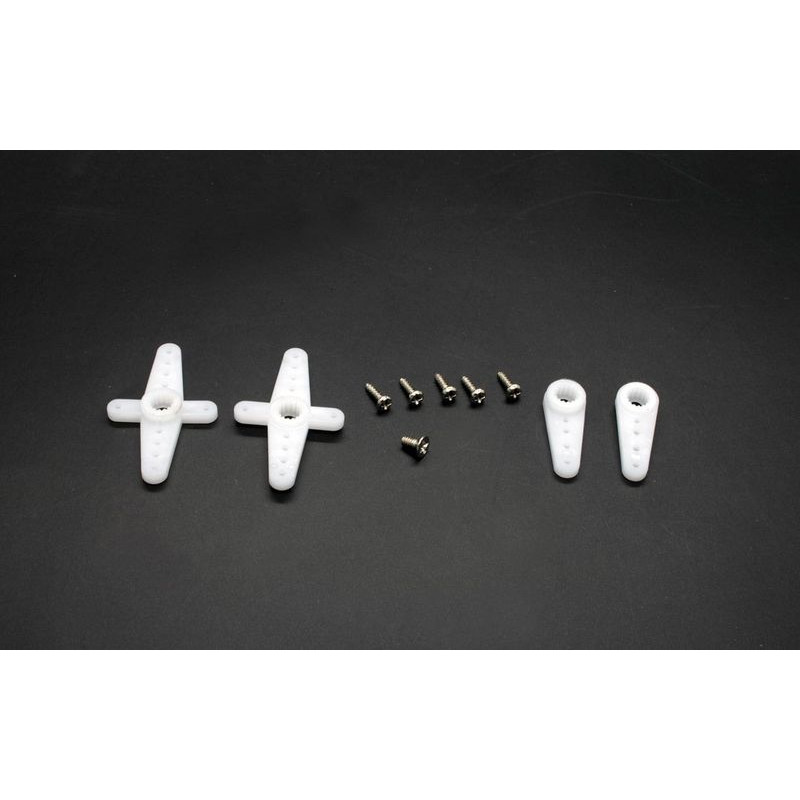

• set of levers included

The store offers gears, levers and servo sockets

*Follow the instruction manual included with the product.
