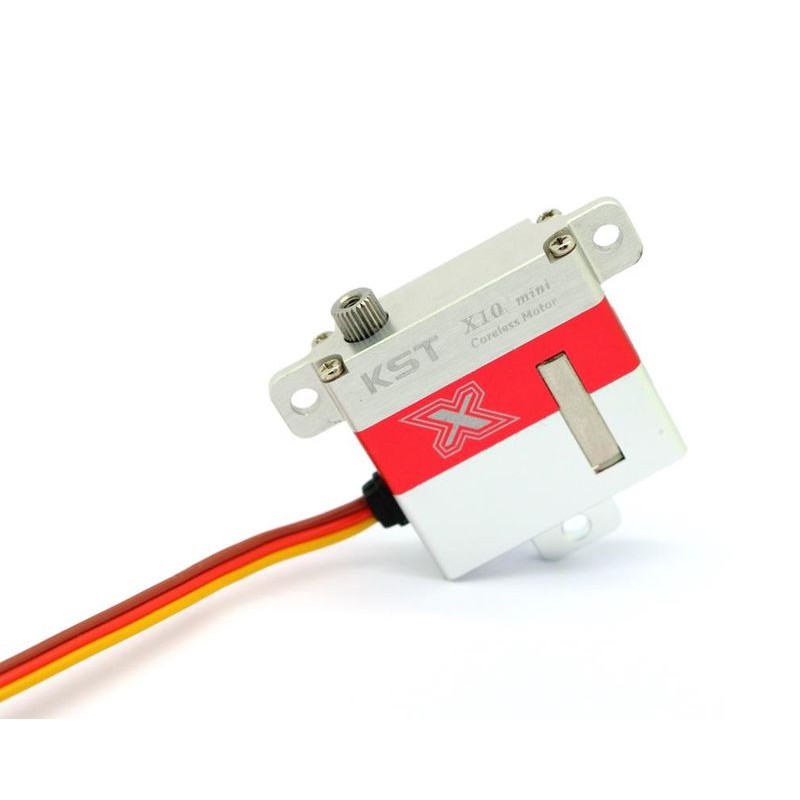

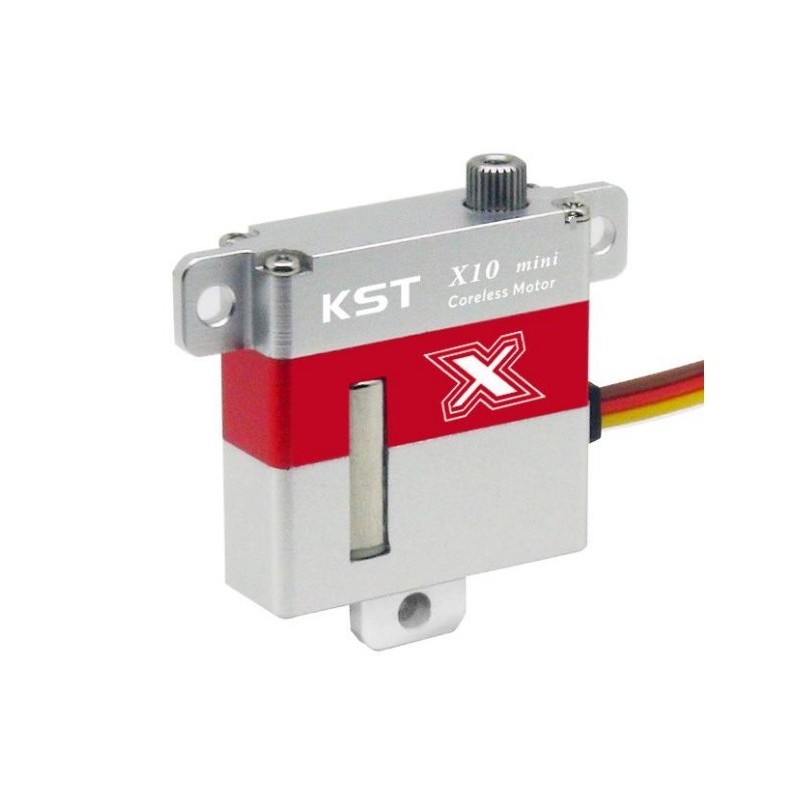

KST SERVO X10 MINI WING DIGITAL

Digital servo from the renowned company KST. Excellent value for money.

Technical specifications:

• power supply: 4.8V - 8.4V
• torque [kg/cm] at 4.8V: 4.5kg
• torque [kg/cm] at 6.0V: 5.5kg
• torque [kg/cm] at 7.4V: 6.8kg
• torque [kg/cm] at 8.4V: 7.5kg
• speed [s/60°] at 4.8V: 0.16s

• speed [s/60°] at 6.0V: 0.14s
• speed [s/60°] at 7.4V: 0.12s
• speed [s/60°] at 8.4V: 0.10s

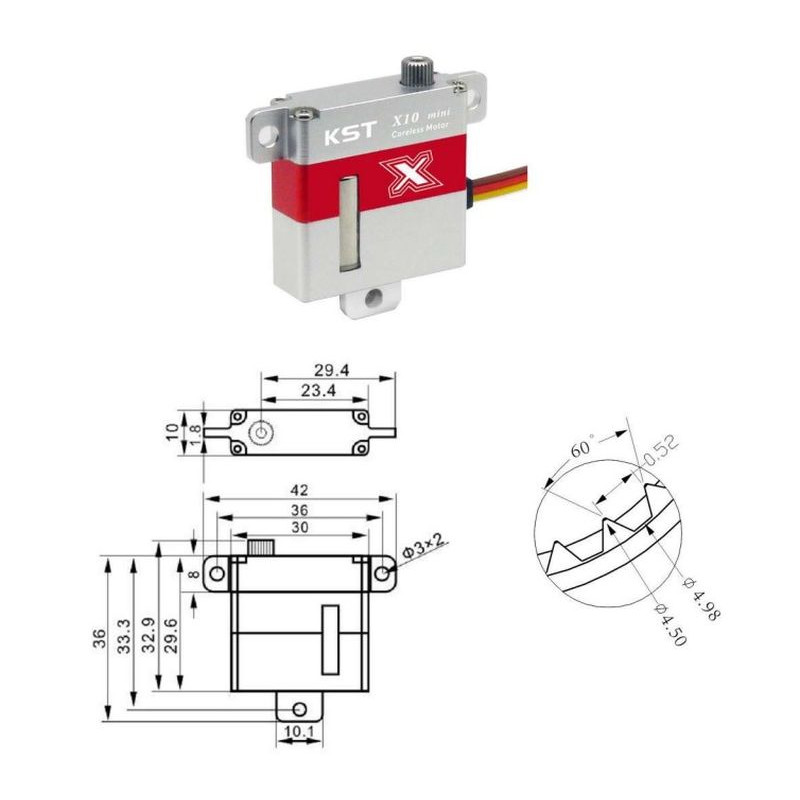

• width: 10 mm
• length: 30 mm
• height: 29.6 mm
• weight: 23 g

• soft start: programmable
• frequency range: 1520us/333Hz
• gearbox: metal (hardened steel)
• bearings: 2 BB
• output shaft: 25T-5

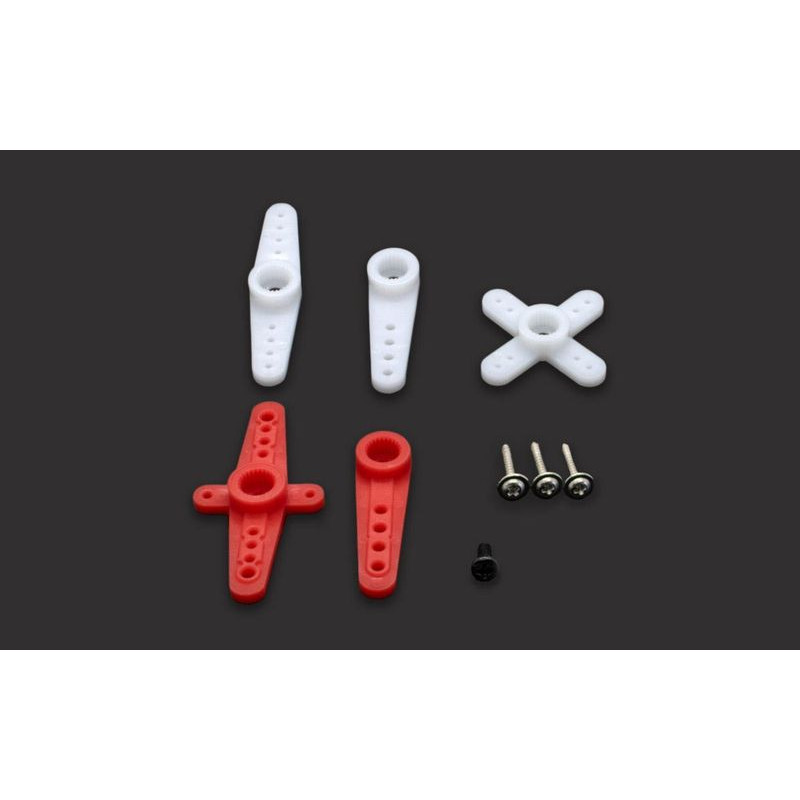

• set of levers included

The store offers gears, levers and servo sockets

*Follow the instruction manual included with the product.
