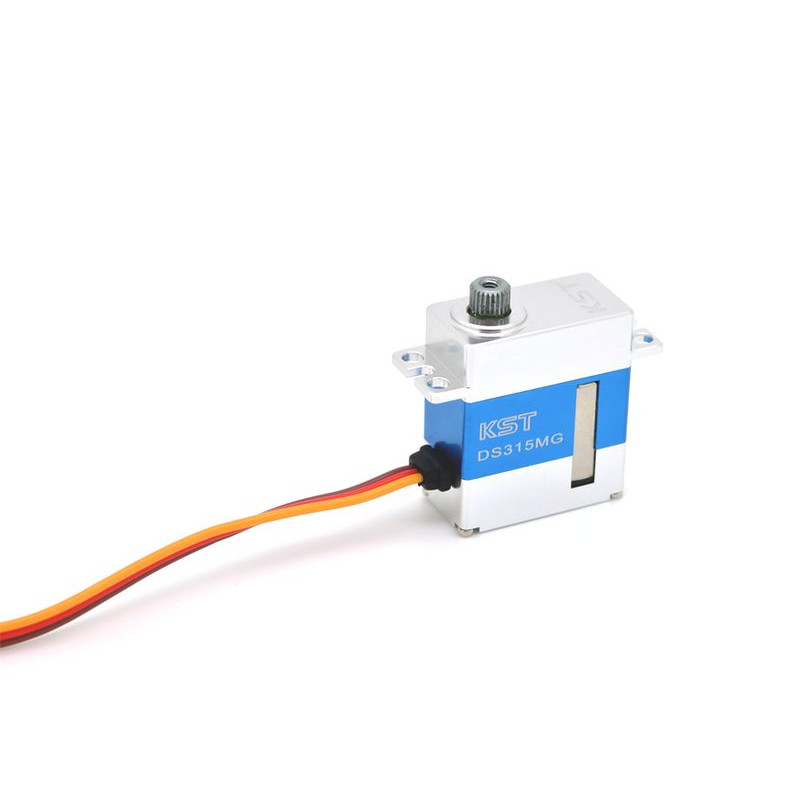

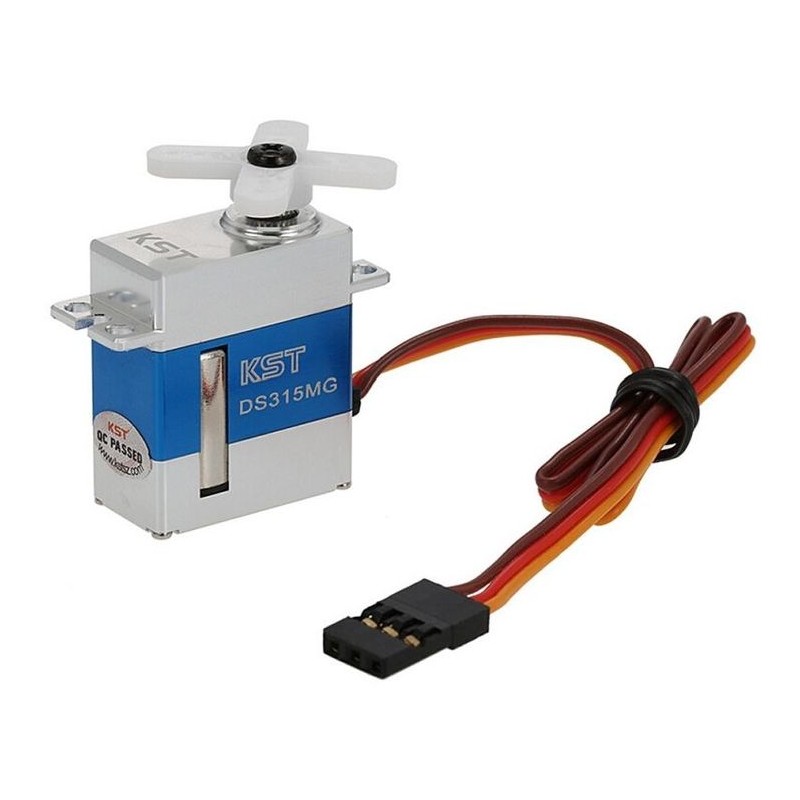

KST SERVO DS315MG DIGITAL HV (4.8V-8.4V)

Digital servo from the renowned company KST. Excellent value for money.

Technical specifications:

• power supply: 4.8V - 8.4V
• torque [kg/cm] at 4.8V: 2.8kg
• torque [kg/cm] at 6.0V: 3.5kg
• torque [kg/cm] at 7.4V: 4.3kg
• torque [kg/cm] at 8.4V: 4.8kg
• speed [s/60°] at 4.8V: 0.10s

• speed [s/60°] at 6.01V: 0.09s
• speed [s/60°] at 7.4V: 0.08s
• speed [s/60°] at 8.4V: 0.07s

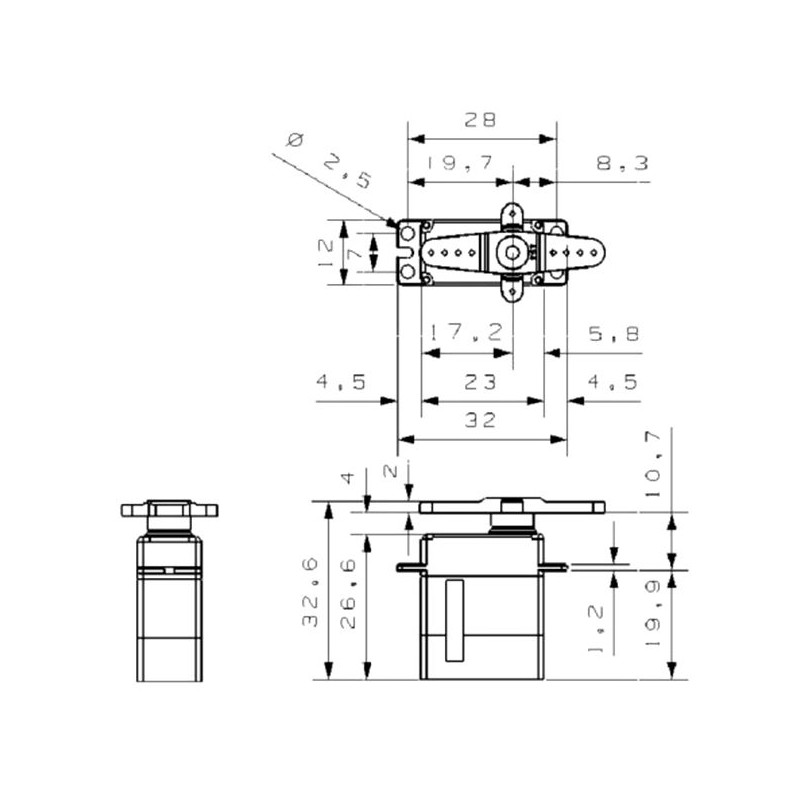

• width: 12 mm
• length: 23 mm
• height: 26.7 mm
• weight: 20 g

• soft start: programmable
• frequency range: 1520us/333Hz, 900us-2100us

• gearbox: metal
• motor: coreles
• bearings: 2 BB
• output shaft: 25T-5
• set of levers included

*Follow the instruction manual included with the product.
