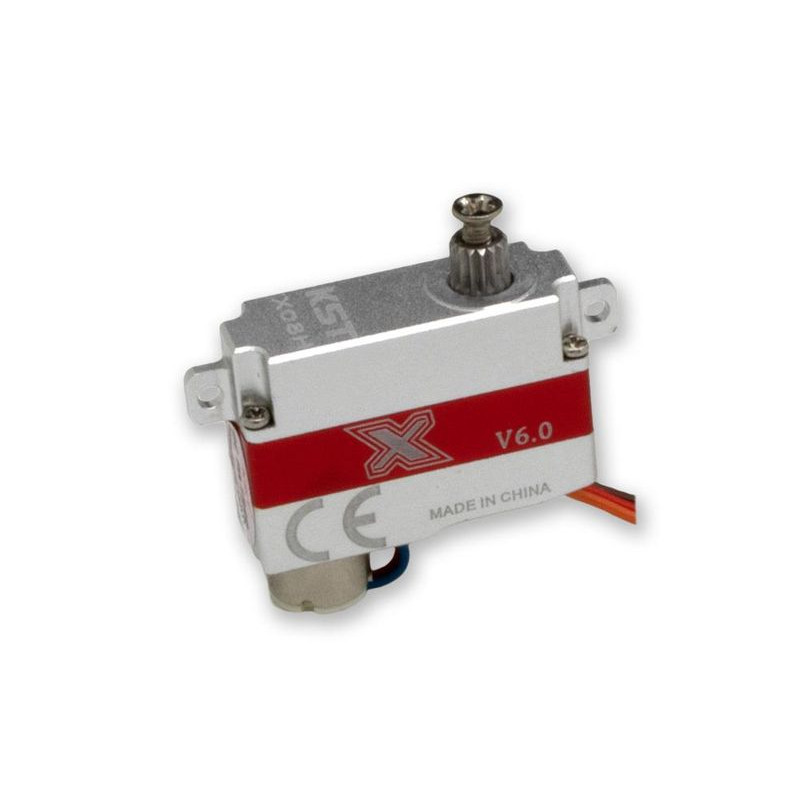

KST SERVO X08H DIGITAL

Digital servo from the renowned company KST. Excellent value for money.

Technical specifications:

• power supply: 3.8V - 8.4V
• torque [kg/cm] at 3.8V: 1.4kg
• torque [kg/cm] at 6.0V: 2.2kg
• torque [kg/cm] at 7.4V:

• torque [kg/cm] at 8.4V: 2.8kg
• speed [s/60°] at 3.8V: 0.18s

• speed [s/60°] at 6.0V: 0.15s
• speed [s/60°] at 7.4V:

• [s/60°] speed at 8.4V: 0.09s

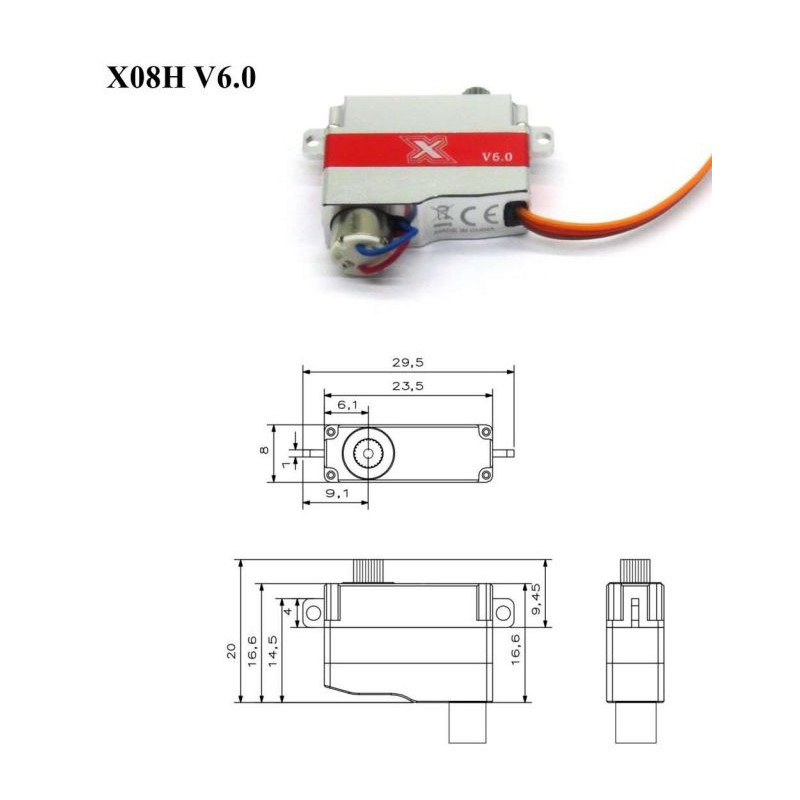

• width: 8 mm
• length: 23.5 mm
• height: 16.8 mm
• weight: 8 g

• soft start: programmable
• frequency range: 1520us/333Hz, 900us-2100us

• gearbox: metal
• bearings: 2 BB
• output shaft: 15T-4

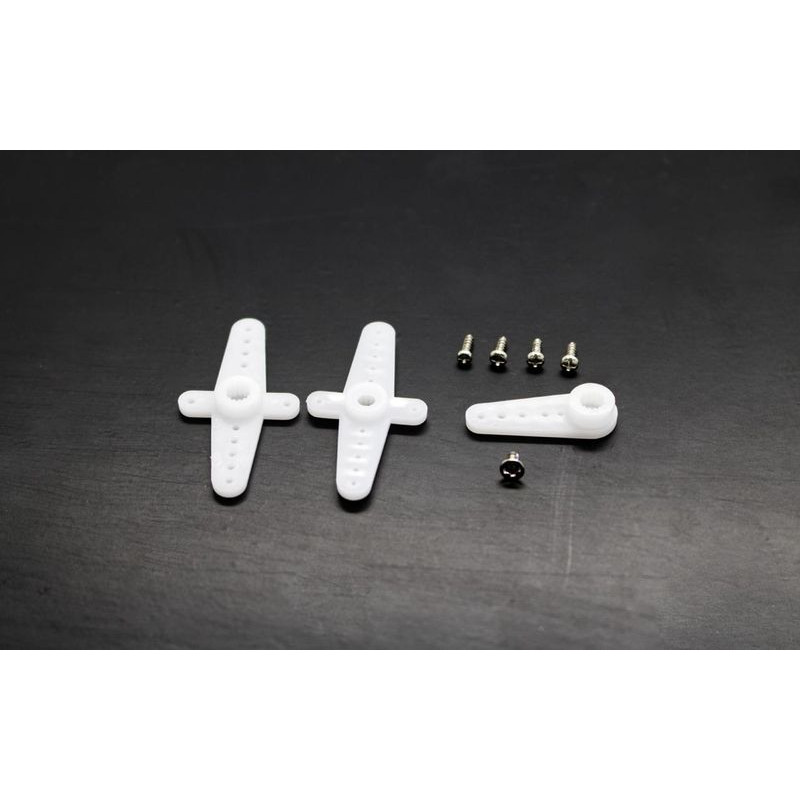

• set of levers included

The store offers gears, levers and servo sockets

*Follow the instruction manual included with the product.
