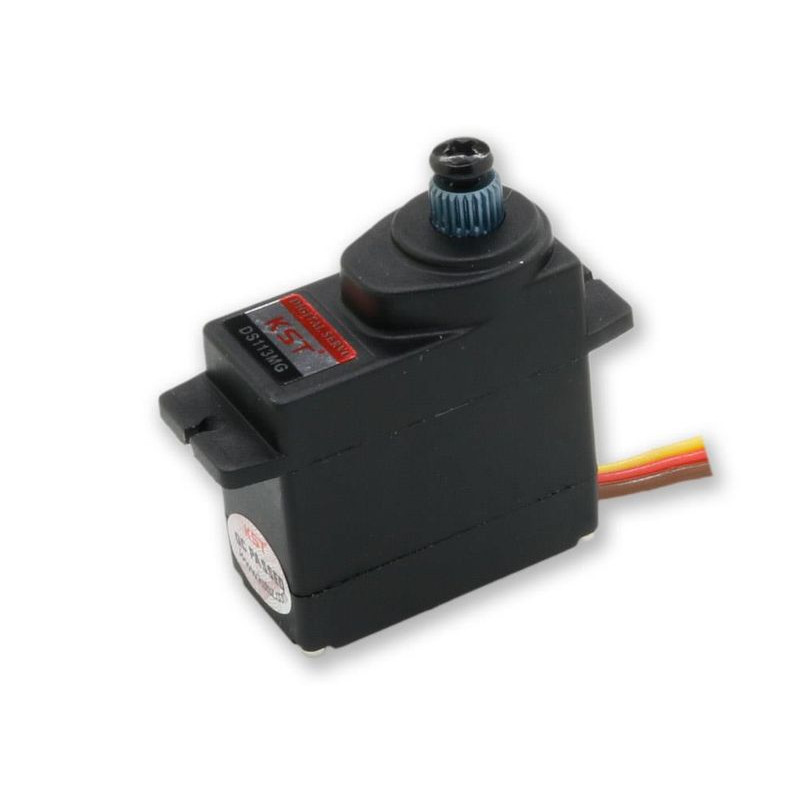

KST SERVO DS113MG DIGITAL

Digital servo from the renowned company KST. Excellent value for money.

Technical specifications:

• power supply: 4.8V - 8.4V
• torque [kg/cm] at 4.8V: 2.0kg
• torque [kg/cm] at 6.0V: 2.5kg
• torque [kg/cm] at 7.4V: 3.0kg
• torque [kg/cm] at 8.4V: 3.5kg
• speed [s/60°] at 4.8V: 0.13s

• speed [s/60°] at 6.01V: 0.11s
• speed [s/60°] at 7.4V: 0.10s
• speed [s/60°] at 8.4V: 0.09s

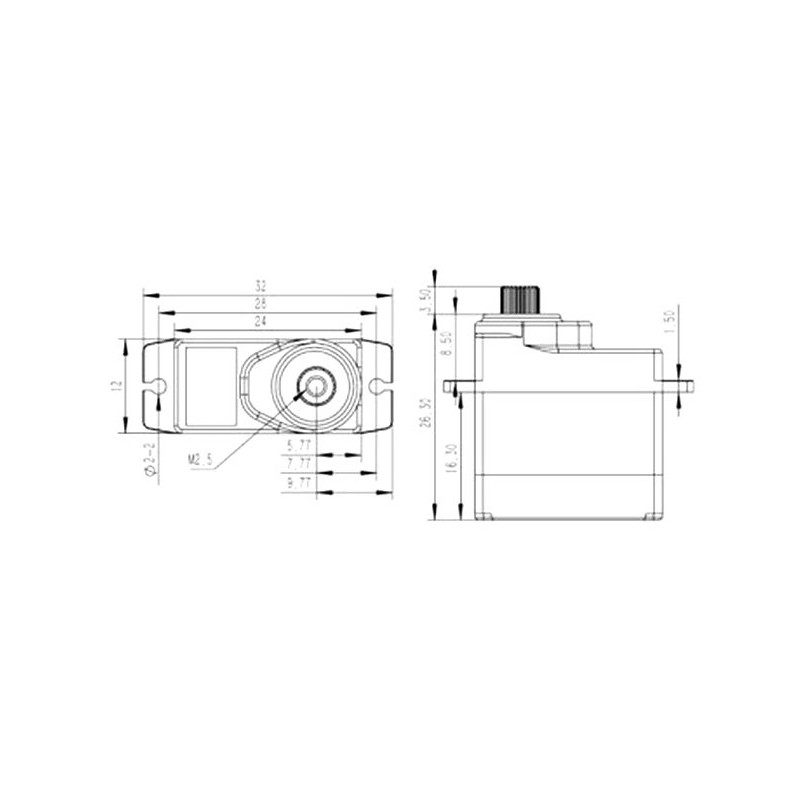

• width: 12 mm
• length: 24 mm
• height: 26.3 mm
• weight: 12 g / ±10%
• soft start: programmable
• frequency range: 1520us/333Hz
• gearbox: metal
• bearings: 1 BB
• output shaft: 25T-5

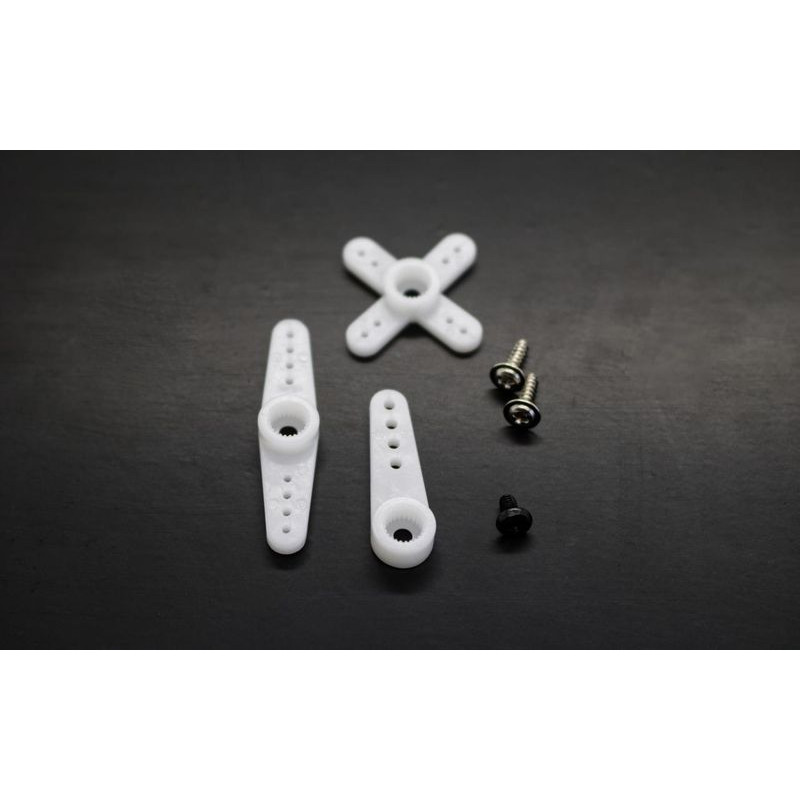

• set of levers included

You can find gears, levers and servo sockets in the store's offerings

*Follow the instruction manual included with the product.
