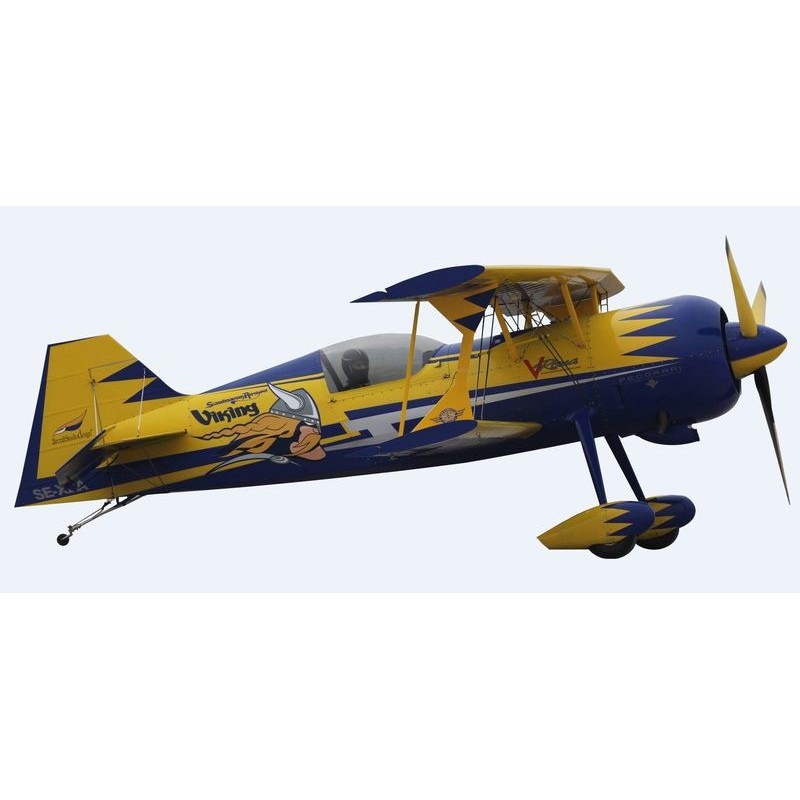

AEROMAX PITTS M-12 (2500 MM) VERSION KIT

PROMOTION!

* when buying equipment for the amount of min. PLN 350 discount on the 10% model (please note in the order comment)

A semi-mock-up of the Pitss M 12 aerobatic plane manufactured by the Polish company Aeromax. The model in the KIT version is laser cut from plywood and balsa for self-assembly. Aeromax models are developed by an experienced modeller-constructor, from the drawing board, the design goes to laser cutting, then the model is folded and tested. After corrections are made, the model goes into production.

Technical data:

• span: 2500 mm
• length: 2350 mm
• weight (approx.): 15 kg
• recommended gasoline engine 120-150 ccm.

Set contains:

• laser cut elements (ribs, frames, etc.)
• laminate engine fairing (for self-painting)
• 1: 1 scale plans

To assemble the model, you will need the following materials and accessories (available in our store):

• Dural pipe + pocket 30x1 mm - 2 pcs.
• Dural pipe + pocket 16x1 mm - 1 pc.
• Tail chassis - 1 pc.
• Biel's chassis No. 5 - 1 item
• Wheels 130 mm - 2 pcs.
• Fairings for wheels - 2 pcs.
• Wheel axles - 2 pcs.
• Balsa board 3 mm - 25 pcs.
• Balsa board 4 mm - 1 pc.
• Balsa board 10 mm - 2 pcs.
• Balsa board 15 mm - 2 pcs.
• 3x2 mm pine slats - 16 pcs.
• 3x3 mm pine slats - 8 pcs.
• 3x5 mm pine slats - 13 pcs.
• 5x5mm pine slats - 11 pcs
• 5x10 mm pine slats - 12 pcs
• 5x15 mm pine slats - 8 pcs
• Flat bar dural 3x20x1000 mm - 2 pcs.
• Laminate / carbon rod 6 mm - 2 pcs
• Brass tube 7 / 6.1 mm - 1 pc.
• Finger hinges, diameter 5 mm - 35 pcs.
• Console M6 mm - 8 pcs
• Levers A 1 - 7 pcs.
• Oracover foil - 13 rm.
• M5 claw nut - 6 pcs.
• 150 mm cap - 1 pc.

We have spare parts for the Aeromax models we sell (fuselages, wings, fairings, tail pieces).

Gallery (examples of finishing):
