KAVAN APARATURE RC V20 red (16.1012)

The ultimate 24-channel TD Pro/TW/TD/ACCESS/ACCESS R9/ACCST D16 RC kit for the most demanding modelers and applications. Ergonomic, rugged chassis, precision gimbals with Hall sensors and front adjustment. Full-featured wireless telemetry, large color touchscreen and ETHOS™ operating system. Wide range of functions and mixes for all types of RC models. Support for telemetry receivers with classic PWM and S.BUS outputs.
The KAVAN V20 Pro is a top-of-the-line 24-channel RC kit for the most demanding modelers, featuring the all-new TD Pro tri-band transmission system with full telemetry support. It features a peak response time of up to 4 ms and a range of up to tens of kilometers . There is a choice of TW/TD/ACCESS/ACCESS R9/ACCST D16 protocols, also with telemetry. The V20 Pro can therefore be paired with a wide range of KAVAN or FrSky receivers , with or without telemetry, with classic PWM and S.BUS outputs.

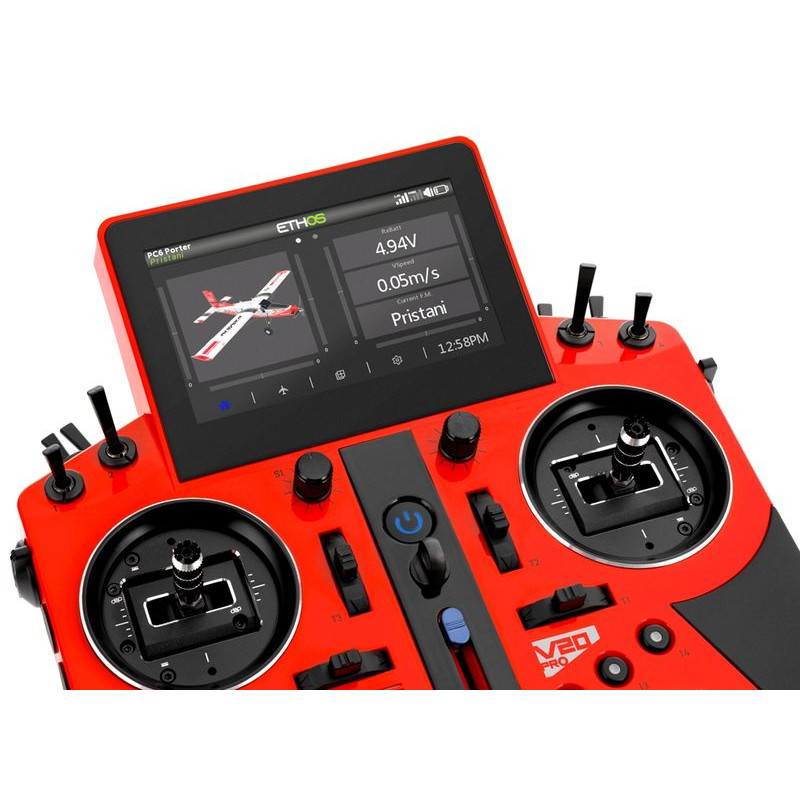

The V20 Pro is suitable for both advanced and sport pilots. It is ideal for controlling a variety of model aircraft, helicopters and multiplanes. It can also be easily configured to control boats or land models, for example. To do so, take advantage of the wide range of functions and mixes available in the ETHOS™ operating system. You can conveniently adjust them to your preferences on the large, bright touchscreen .

You have a pair of precision gimbals with side-independent feedback , mounted on 10 ball bearings. This ensures perfectly smooth movement of the rods in every direction. Their position is detected by high-quality Hall sensors. Compared to potentiometers, they have higher sensitivity , are not subject to mechanical wear (mostly around the center position) and better withstand moisture and dust. Control is therefore more accurate and reliable. You can rotate the gimbals up to 8° and limit their range of motion to 45-60° . Of course, it is also possible to adjust the strength of the self-centering springs and the ratchet now without removing the transmitter. All of the gimbal's response settings can be conveniently adjusted using the screws on the front panel. To change the mode, select the desired mode in the settings menu and adjust the throttle stick ratchet in a few moments.

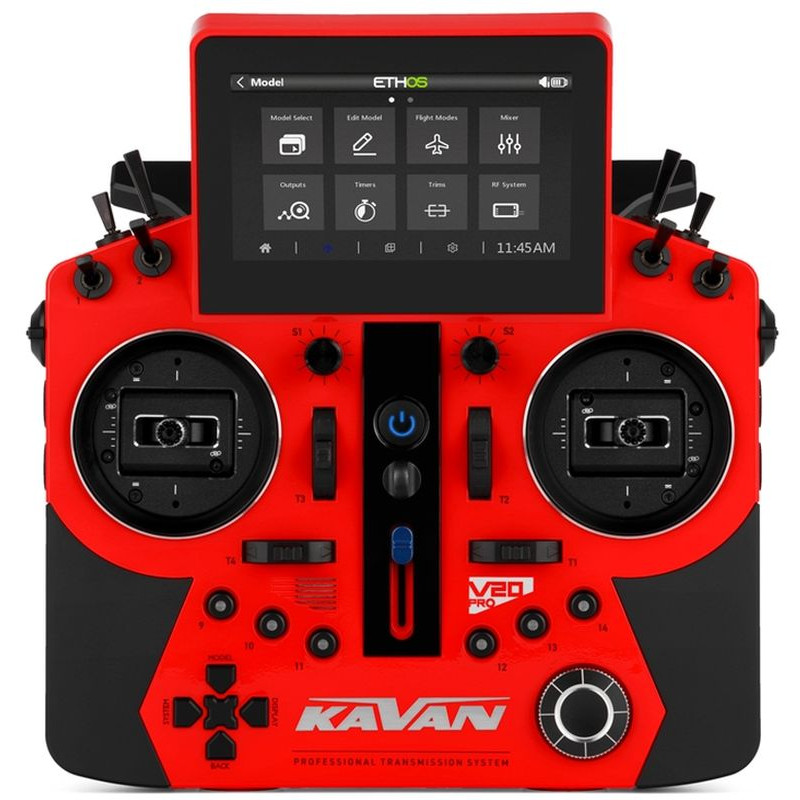

To control other functions, there are 6 three-position switches, 2 two-position switches (including 1 momentary), 2 side rotary sliders, 6 programmable buttons (front) and two momentary buttons (rear). The built-in 6-axis gyroscope can control the throttle channel, control the mix speed, and is also used to wake up the display. The levers and trim knobs are all-metal and precision CNC-machined . The controller layout design and ergonomics of the body are the result of dozens of hours of testing and fine-tuning by the KAVAN team.

The transmitter body is solid and fits perfectly in the hand . Rubberized grips on the sides and back of the transmitter provide a firm, comfortable and secure grip. From here you can easily reach all the controls. The gimbals are close to the edge of the transmitter. As a result, you don't even need a stand to hold the transmitter comfortably. For maximum ergonomics, long tuning rods with switches are also available .

The V20 Pro offers memory for up to 64 models, which can be expanded with a microSD card. In addition to displaying telemetry data on the screen, voice prompts and vibration are also available. Telemetry is fully wireless. There is a built-in text-to-speech (TTS) processing module. Trainer mode is also wireless .

The transmitter is powered by a 4,000 mAh LiPo 2S battery , which can be charged directly via USB-C. The transmitter is equipped with a balancer (±50 mV) for 2S LiPo batteries and charges with 2 A at 5 V.

All KAVAN transmitters come with a three-year extended warranty.

Features:

• 4.3-inch color backlit LCD touchscreen with high brightness and 800×480 px resolution
• Up to 20 flight modes for superior model control in all conditions
• Full telemetry with data transfer from a wide range of sensors and SD card storage capability
• Memory for up to 64 models, expandable via SD card
• Option for completely wireless transmission of telemetry data
• Voice output telemetry
• Upgradable software
• 6 three-position switches, 2 two-position switches (1 momentary)
• 2 side rotary sliders, 2 momentary buttons on the back
• 6 user-programmable buttons (front)
• 6-axis gyro sensor
• Precision front adjustable stabilizers mounted on 10 ball bearings
• Wireless trainer mode
• F.BUS port for programming servos
• Model names consisting of 15 characters
• Undercuts
• Servo speed direction change
• End point corrections (EPA) and speed limiting
• Servo speed setting
• Resetting data
• Safe rates
• Dual rates
• Set rates along 2 exponential curves or 21-point curves
• Freely programmable mixes
• Motor shutdown
• Safe idle
• Logic switches
• Clear user menu with customizable widgets
• Servo monitor and servo tester
• Three timers (stopwatch or timer)
• Model execution time
• Transmitter run time
• Checklist of controller positions during launch
• Adjustable intensity of the display backlight
• Gimbal calibration
• Sound and vibration alarms
• Range check
• 3-channel receiver mode setting
• Tactile and audio feedback and built-in text-to-speech conversion module
• USB-C simulator connection
• Compatible with long tuning batons

Specifications:

• Transmission systems: TD Pro, TW, TD, ACCESS, ACCESS R9, ACCST D16
• Antenna: 4 built-in LoRa + FSK antennas (2.4 GHz + 868 MHz)
• Dimensions: 221.5×214.5×94 mm (H × W × D)
• Weight: 1075 g (including battery)
• Operating system: ETHOS™
• Internal RF module: TD-ISRM Pro
• Number of channels: up to 24
• Operating voltage range: 6.5-8.4 V (2S LiPo battery)
• Operating current: 240 mA at 7.4 V
• Charging current: ≤1 A ± 200 mA
• USB adapter voltage: 5 V + 0.2 V
• USB adapter current: >2.0 A
• Display: high brightness backlit touch LCD screen with 800×480 pixel resolution at 4.3 inches

Kit contents:

• KAVAN V20 Pro transmitter red

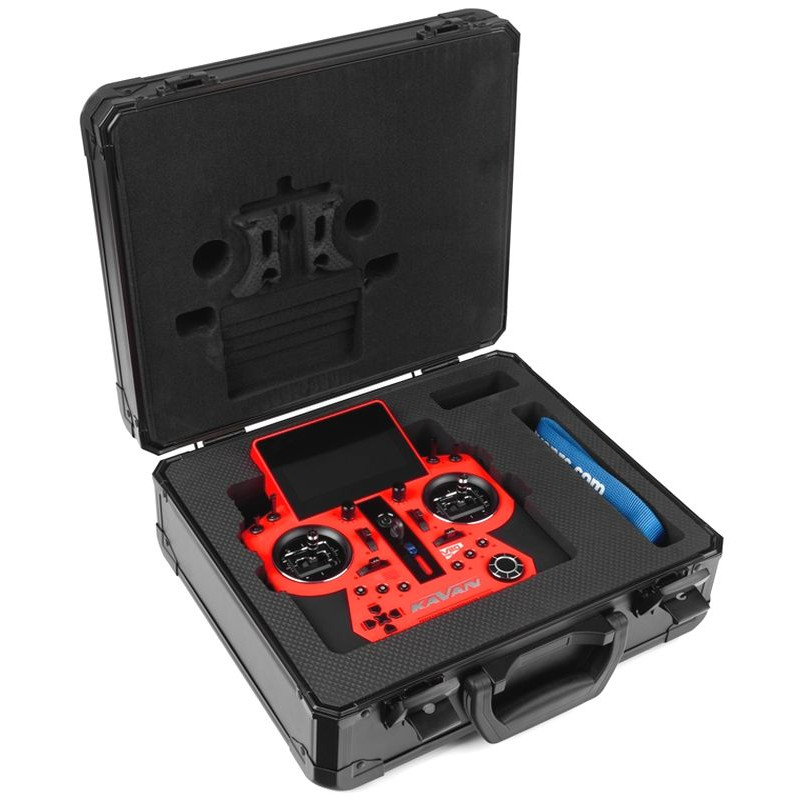

• Hardened, lockable carrying case
• 2S LiPo 4000 mAh transmitter battery
• Neck strap
• Quick guide

*Follow the instruction manual included with the product.
