KAVAN APARATURE RC V15 blue (16.1004)

The V15 uses a dual 2.4 GHz transmission system that communicates simultaneously with the receiver and RF module. This results in a signal response time of just 4 ms in all directions and up to tens of kilometers. This is also ensured by built-in omnidirectional antennas. The ACCESS or ACCST D16 protocol can also be selected. This makes the range of compatible receivers wide.

Proven design

The radio's design is based on the proven solutions of the V20 transmitter. The radio fits comfortably in the hand, and all controls are properly arranged. The multifunction knob, switches, selectors and trimmer levers are made of aluminum, so they lie well in the hand and look good. The design meets both functional and aesthetic requirements.

Friendly environment

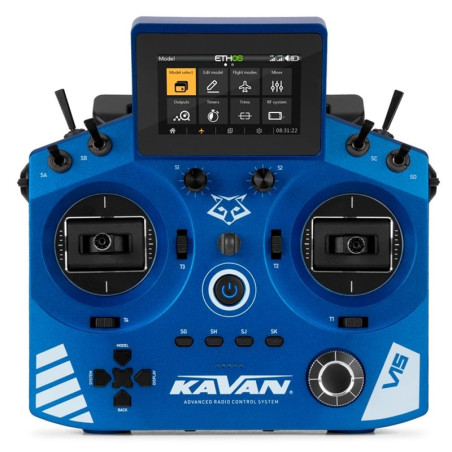

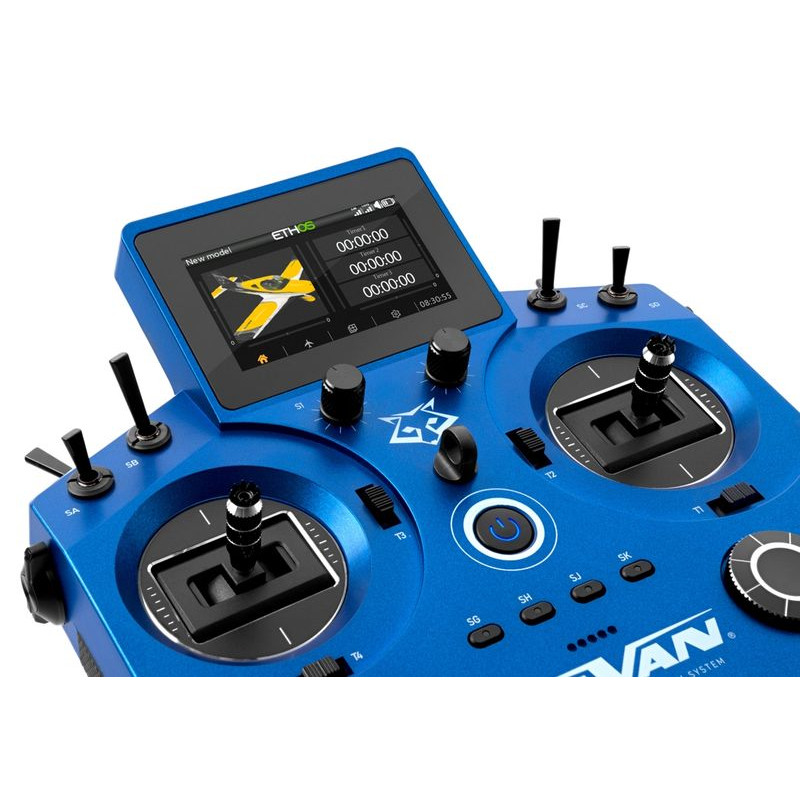

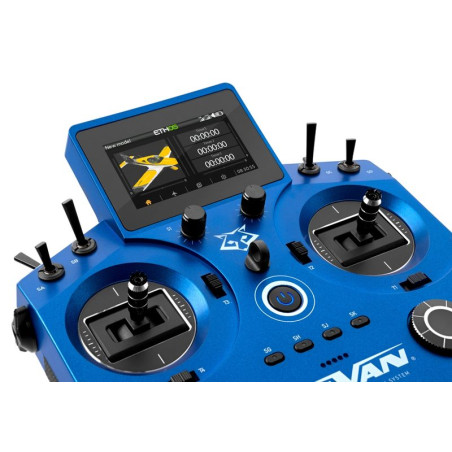

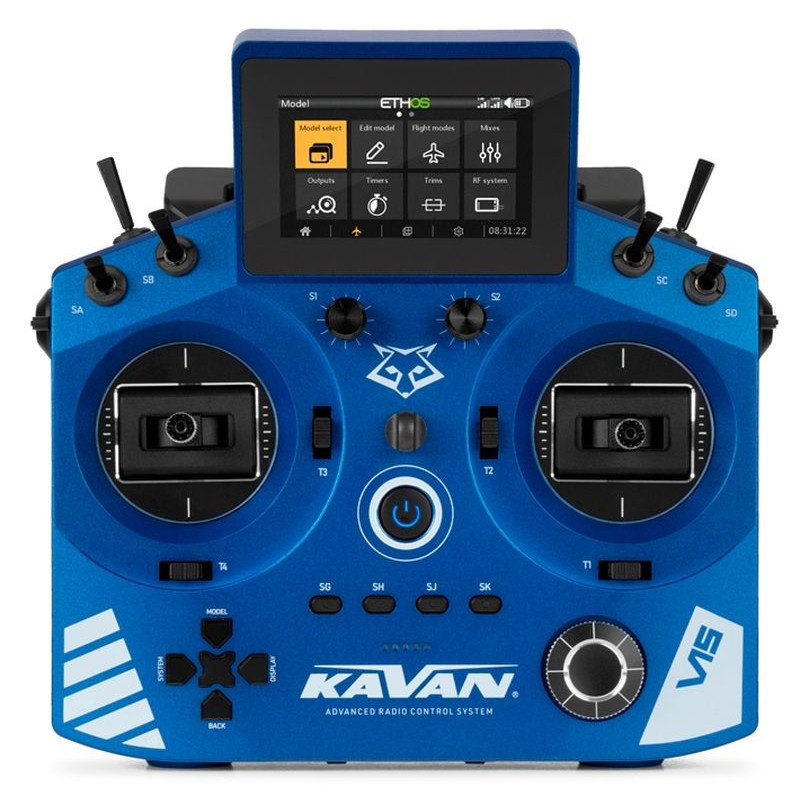

The large color display is 2.95 inches diagonal and has a resolution of 640×360 pixels. In the ETHOS environment, you can set the backlight intensity or color scheme to your liking, and select your preferred language from a wide range of available options. The home screen can be personalized with optional widgets to display a variety of telemetry or feedback data.

Modelers operating system

The ETHOS™ operating system was developed and built from the ground up by experienced modelers. Intuitive and reliable. Makes it easy to operate the transmitter. Doesn't take a lot of time. Offers multiple flight modes for all models. Supports Lua scripts to operate a wide range of electronic devices, and transmitter modes can be easily switched directly on the display.

Convenient charging

The power voltage range is 7.0-8.4 volts, so you only need a 2S Li-Po or Li-ion battery with a capacity of 2600 mAh to charge the transmitter. It can be conveniently charged via the USB-C connector, which also provides access to the transmitter's memory. The charge level is clearly visible on the display, and adjustable alarms warn of a discharge

The KAVAN V15 is a 24-channel RC model for advanced sports and recreational modelers, operating on a dual 2.4GHz transmission system with full telemetry support. It features a peak response time of up to 4 ms and a range of up to tens of kilometers. There is also a choice of ACCST D16 or ACCESS transmission systems, also with telemetry. The V15 can therefore be paired with a wide range of KAVAN or FrSky receivers , telemetry or not, with conventional PWM and serial outputs.

The design of the V15 is based on the proven components of the V20 transmitter, but is smaller, lighter and more portable. It is suitable for controlling a wide range of model airplanes, helicopters and multi-rotors. It is also easy to set up, for example, to control model ships or land machines. To do so, you can take advantage of the wide range of functions and mixers available in the ETHOS™ operating system. These can be conveniently customized to your preferences using the aluminum multi-function knob and ETHOS interface.

It features a pair of precision cross-over controllers with an aluminum plate. This ensures perfectly smooth movement of the sticks in every direction. Their position is detected by high-quality Hall sensors. Compared to potentiometers, they have higher resolution and are less susceptible to mechanical wear (mostly around the center position) and can withstand moisture and dust better. This makes the control more precise and reliable.

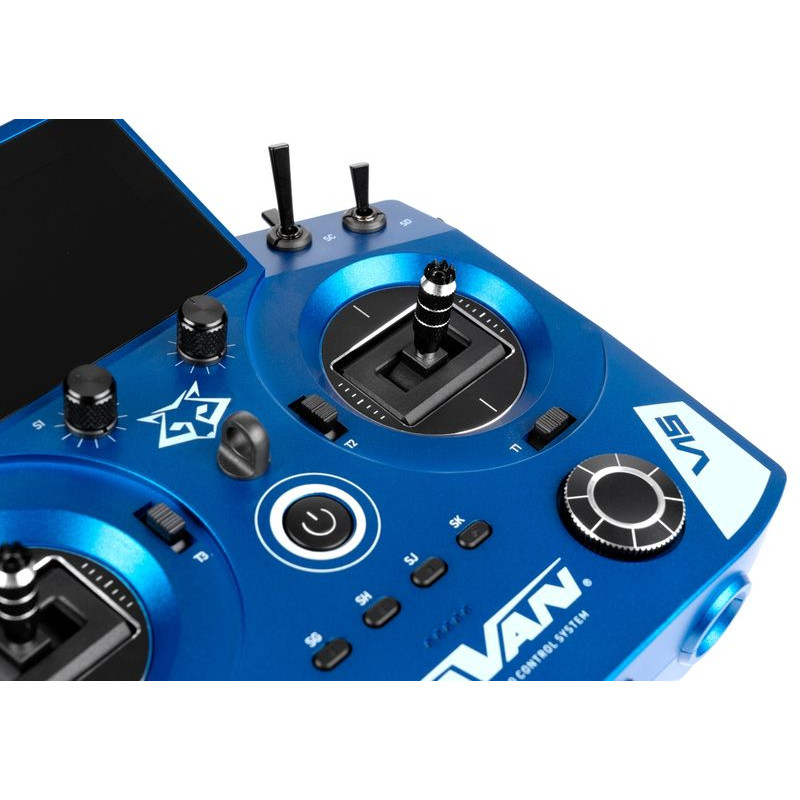

For controlling other functions, there are 4 three-position switches, 2 two-position switches (including 1 momentary), 2 side knobs, 4 programmable buttons (front) and 2 momentary buttons (rear), 2 programmable mixer knobs and 4 digital trimmers. The levers and trimmer knobs are made entirely of metal and precision CNC-machined. The layout and ergonomics of the controller body are based on the proven and thoroughly tested design of the V20 transmitter.

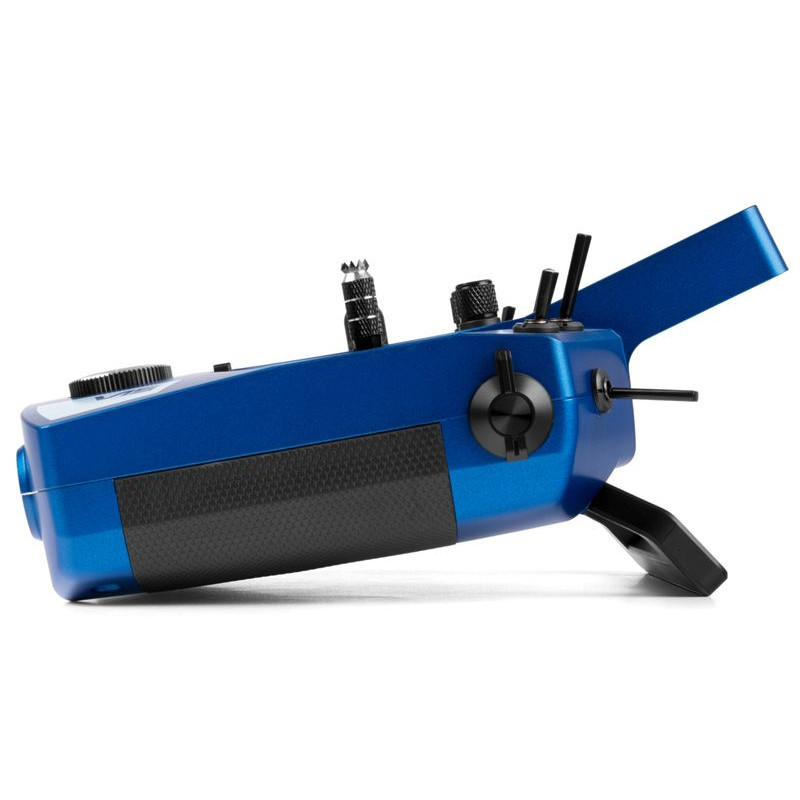

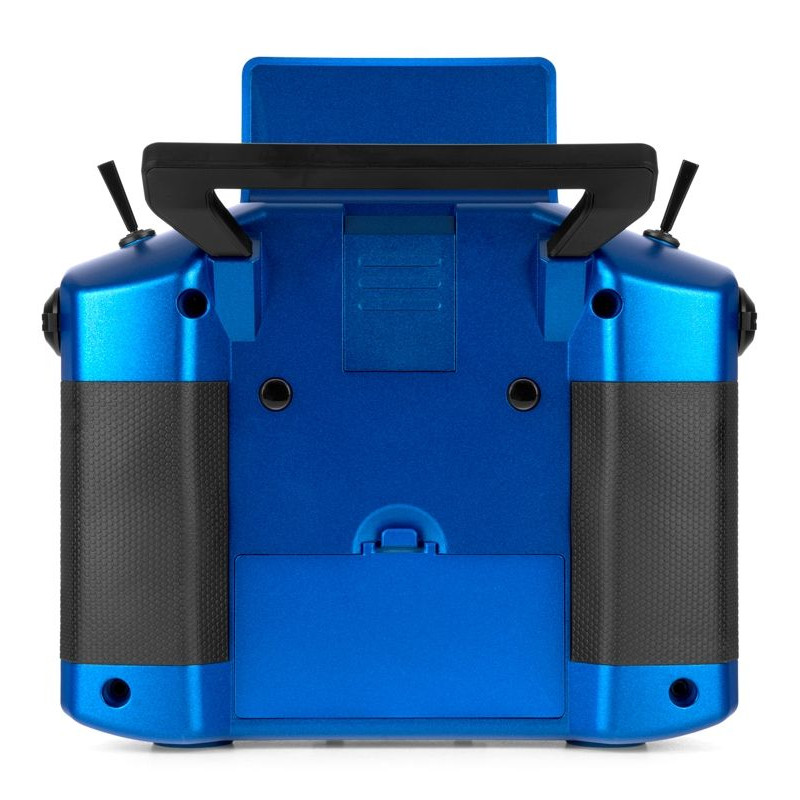

The transmitter body is solid and fits perfectly in the hand. Rubber grips on the sides and back of the transmitter provide a firm, comfortable and secure grip. From here you can easily reach all the controls. The gimbals are close to the edge of the transmitter. There are also separate long tuning levers with a switch. Of course, it is also possible to adjust the centering force and ratchet of the stick springs. To change the mode, simply select the desired mode in the settings menu and set the throttle lever lock in a few moments.

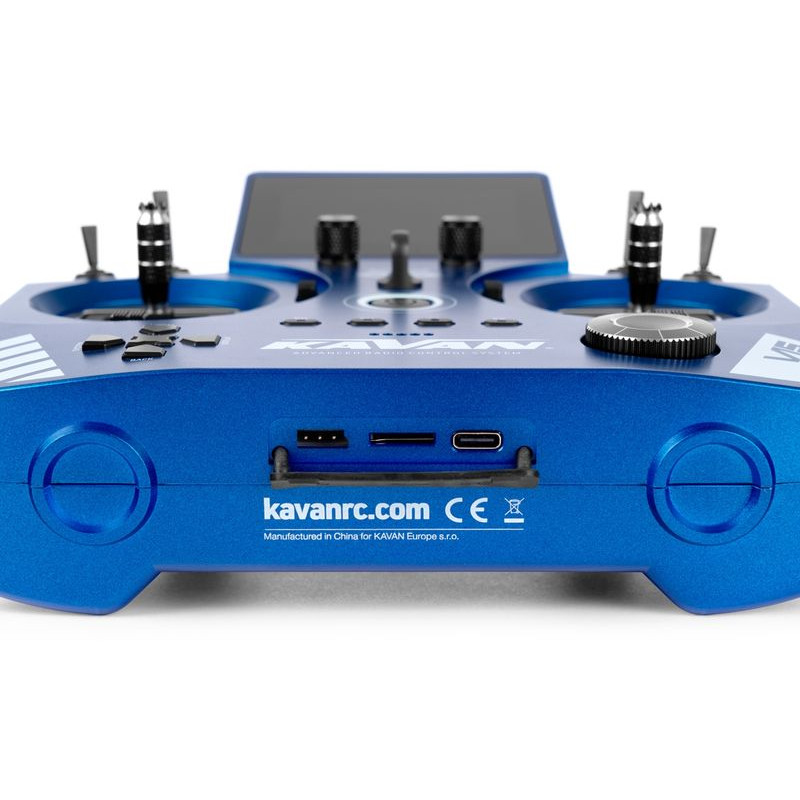

The built-in flash memory of 128 MB stores all your models and scripts. If that's not enough, you can expand it with a MicroSD card. Access to the memory is provided by a USB-C connector, which is also used for charging. A built-in balancer will take care of powering the 2S lithium-ion battery with a capacity of 2,600 mAh.

• 2.95-inch color TFT display with backlight and 640×360 px resolution
• Up to 20 flight modes for superior model control in all conditions
• Full telemetry with data transfer from a wide range of sensors with the ability to save to a MicroSD card
• Memory for up to 64 models expandable via MicroSD card
• Voice telemetry output from speaker or via 3.5mm jack cable
• 4 three-position switches, 2 two-position switches (1 momentary)
• 2 rotary side knobs, 2 momentary buttons on the back
• 4 user-programmable buttons (front)
• Precision stabilizers with Hall sensor and aluminum panel
• Trainer mode via cable or wireless via Bluetooth®
• Smart Port for programming servos
• Model names consisting of 15 characters
• Undercuts
• Reversing servo action
• Endpoint setting and speed limiting
• Servo speed setting
• Resetting data
• Fail safe ratesDoublerates
• Set rate progression along 2 exponential curves or 21-point curves
• Freely programmable mixes
• Motor shutdown
• Safe idle
• Logically connected switches
• Intuitive user interface with customizable widgets
• Servo monitor and servo tester
• 3 timers (stopwatch or timer)
• Model execution time
• Transmitter run time
• Display of preset controller positions after transmitter startup
• Adjustable intensity of display backlighting
• Gimbal calibration
• Audible and tactile warning
• Range check
• 3 receiver mode settings (redundancy

Technical specifications

• Transmission system: 2.4 GHz simultaneously on two frequencies (Twin 2.4 GHz)
• Antenna: Two built-in 2.4 GHz antennas
• Gain: 3.01 dBi
• Dimensions: 198.5×194.1×94.5 mm (W × H × D)
• Weight: 640 g (without battery)
• Operating system: ETHOS
• Internal RF module: TW-ISRM
• Channels: up to 24
• Operating voltage: 6.5-8.4 V (Li-Po/Li-Ion 2S battery)
• Battery compartment dimensions: 69.5×38.5×20 mm (W × H × D)
• Operating temperature: (-10)-60 °C
• Operating current: 330 mA at 7.4 V
• Operating frequency: 2.4015-2.482 GHz
• RF output power: 17.77 dBm (EIRP)
• Charging current: ≤1 A ± 200 mA
• USB adapter voltage: 5 V + 0.2 V
• USB adapter current: ≥ 2.0 A
• Display: 2.95" color TFT with 640×360 px resolution
• Compatibility: Twin 2.4 GHz / ACCST D16 / ACCES

Kit contents:

• KAVAN V15 blue transmitter
• 2S Li-ion 2600mAh transmitter battery

*Follow the instruction manual included with the product

For more information and photos, please visit the manufacturer's website : TU
