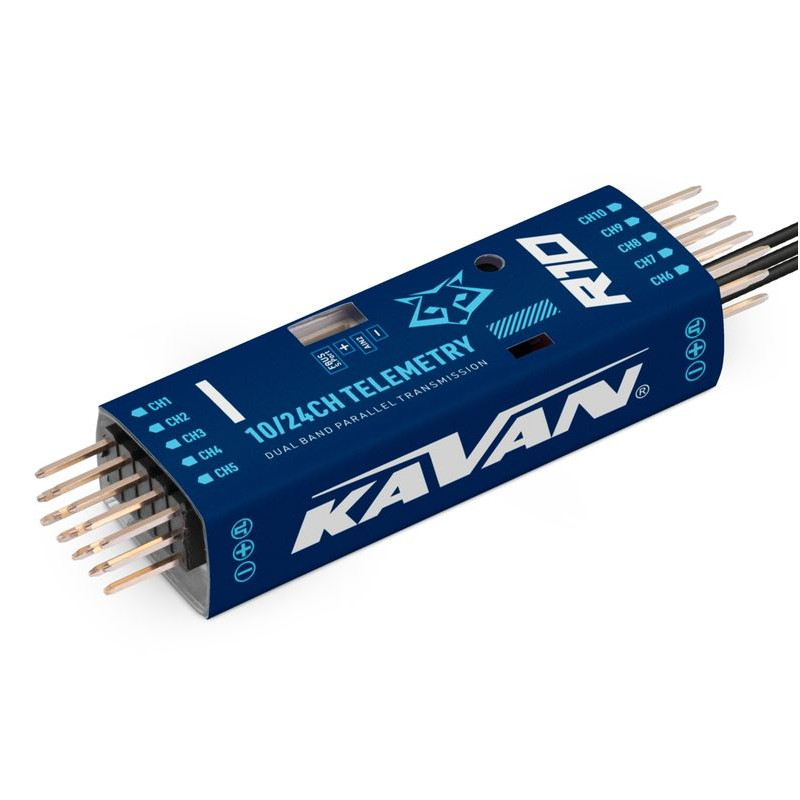

KAVAN receiver R10 (18.10010)

Advanced 10-channel telemetry receiver. It operates on 2.4 GHz simultaneous dual-frequency Twin 2.4 GHz transmission system. It has 10 high-precision PWM channels and 16- or 24-channel modes using S.BUS. Two detachable antennas with IPEX4 connectors provide full signal strength at ranges of up to tens of kilometers. It is particularly ideal for gliders, but can also be used for other various models. Thanks to redundancy support, it can be connected as a primary receiver via S.BUS. Thanks to the Twin 2.4 GHz protocol, both receivers operate fully simultaneously in this connection. With the F.BUS connection option, it can also be quickly and easily paired with several different telemetry devices, providing bidirectional data transmission via a single cable.

It features advanced noise reduction for reliable, stable signal transmission over the entire range. Intelligent transmission system matching speeds up pairing. Black box function stores vital flight data. Receiver operating states are indicated by an LED indicator. Smart pairing enables wireless firmware updates.

It is also available in a stabilized version (#KAV18.10010S R10 Stabi) offering enhanced ADV stabilization features. The ADV stabilizer offers an advanced mode with multiple programmable stabilized channels and flexibility.

Specifications:

• RF transmission: Dual 2.4 GHz
• Dimensions: 64×16.6×12.4 mm (L × W × H)
• Weight: 9.4 g
• Operating voltage: 3.5-12 V (2S LiXX power supply recommended)
• Operating current: ≤120 mA at 5 V
• Vario vertical speed measurement range: ±10 m/s
• Vario - altimeter range and resolution: -700 m to 10,000 m, 0.1 m
• External voltage measurement range via AIN2: 0-35 V
• Antenna connector: IPEX4
• Compatibility: 2.4 GHz dual
• Maximum radiated power: < 20 dBm
• Operating frequency: 2.400-2.4835 GHz

Features:

• Enhanced RF interference protection and more stable RF transmission
• Simultaneous dual-frequency Twin 2.4 GHz transmission system with intelligent pairing
• Built-in advanced stabilization functions (R10 Stabi)
• Built-in precision telemetry sensor (altitude, vertical speed, etc.)
• Black box function
• High maximum operating range
• Wireless network firmware updates (OTA - OverTheAir)
• 10 configurable channels
• CH1: PWM / S.BUS output / FPort / S.Port / SBUS input
• CH2-10: PWM / SBUS OUTPUT / FBUS / S.Port
• F.BUS / S.Port
• SBUS OUT port (supports 16/24CH mode)
• SBUS IN port (supports signal redundancy)

Online user manual: wiki.kavanrc.com

For more information and pictures, please visit the product page : TU

*Follow the user manual included with the product.
