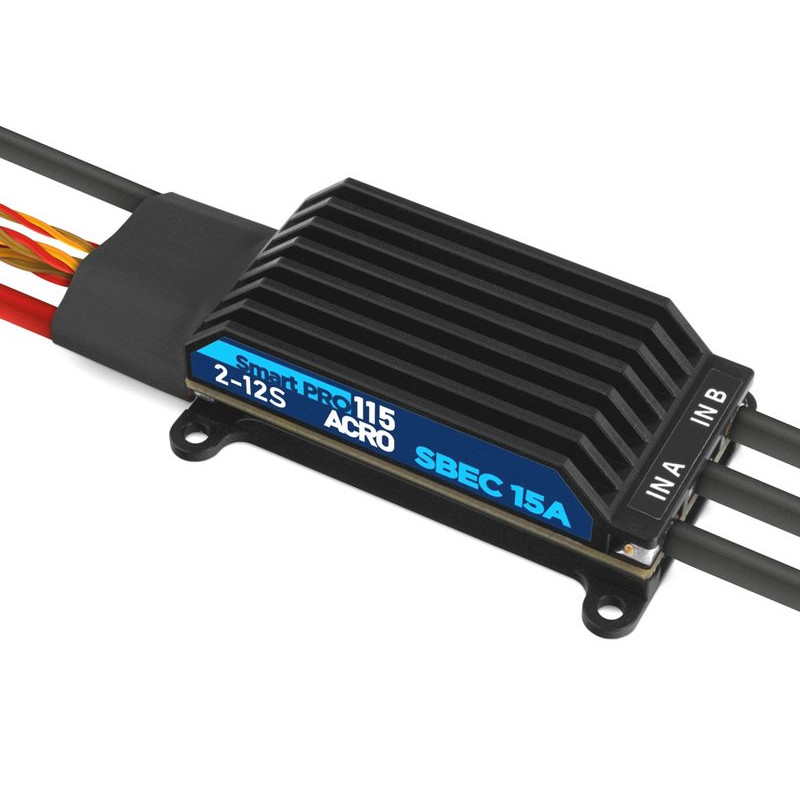

KAVAN SPEED CONTROLLER PRO-115HV SBEC ACRO (KAV32.31069)

Powerful BLDC motor regulator with up to 110 A continuous current at up to 51 V (12S LiPo). Suitable for aerobatic models and even where there is limited access to cooling air. It offers a high-quality stabilized voltage output (BEC) with up to 15 A continuous current and the ability to connect an external safety switch.

The KAVAN Smart PRO series are advanced speed controllers designed for use primarily in radio-controlled model aircraft. With integrated telemetry and various user-selectable configuration options, the controllers offer high performance, low weight and precise motor control. The controllers offer many types of safety features.

Features

• Small size combined with efficient motor control.
• Powerful switched BEC offering a continuous current of 15 A (max. 30 A). BEC circuit protection against overcurrent and overheating included.
• Adjustable BEC voltage of 5.5-8.4 V in 0.1 V steps.
• Overvoltage and undervoltage protection, overheating protection, motor jamming protection.
• Adjustable current limiter.
• Safety shutdown in case of pulse loss.
• Configurable acceleration, timing, electromagnetic brake, etc.
• Low noise due to high frequency switching.
• Automatic telemetry detection: FrSky/KAVAN FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.Bus2, PowerBox P²Bus. Special firmware with support for Spektrum SRXL2.
• Telemetry (depending on RC chip): voltage, current, power, capacity, temperature, RPM, energy.
• Minimum/maximum telemetry values are recorded.
• Configuration via transmitter or external terminal (JETIBOX/SMART-BOX).
• Firmware update via USB interface KAVAN Smart PRO or MAV Sense and MAV Manager program.
• Languages: CZ/DE/EN/FR/IT

Additional features

• Ability to activate synchronous switching (Active Freewheeling) for more accurate engine response and less controller heat during aerobatics.
• Optional use of an external switch/button/Hall sensor/RC switch/touch switch (sold separately).
• Trouble-free operation with powerful multi-speed motors and the vast majority of all other motors.
• Possibility to connect a backup battery without additional reductions.
• Propeller positioning with Hall sensor (sold separately).
• Optional external motor identification combined with temperature sensor (sold separately).

Package includes: Speed controller, manual.

Manual: TU

KAVAN Smart PRO-115HV SBEC ACRO is manufactured in the Czech Republic by MAV Sense s.r.o

Technical data:

• For aircraft models
• Continuous current [A]: 110
• Max peak current (2 s) [A]: 170
• Number of LiXX cells: 2 - 12
• BEC voltage [V]: 5,5 - 8,4
• BEC current [A]: 15
• Length [mm]: 88
• Width [mm]: 32
• Height [mm]: 20
• Weight [g]: 125
• Unidirectional
• Brake: YES
• Sensor input: YES

• Programmable: YES


*Follow the instruction manual included with the product.
