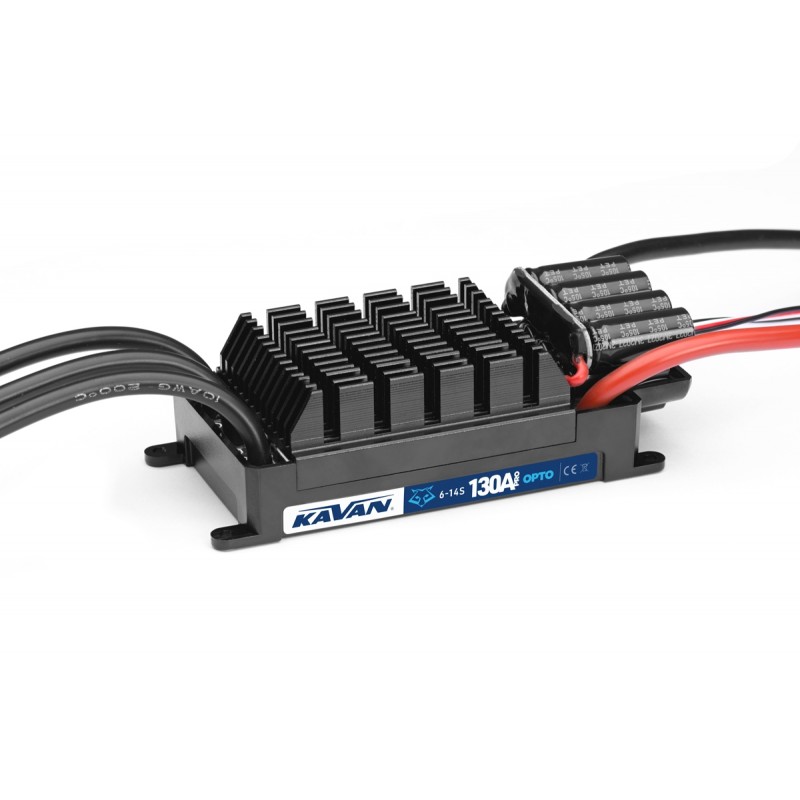

KAVAN SPEED REGULATOR PRO-130HV OPTO (KAV32.31050)

Programmable microprocessor controller for AC motors without sensors ("brushless, sensorless") for recreational and sports aircraft models powered by LiPo / Li-ion / LiFe batteries. It uses advanced optimized control technology that greatly improves gas response and power stage control efficiency. The design of the controller takes into account the high long-term load capacity and durability that is required in models with more servos. The controller is not equipped with a power stabilizer to power the receiver and servos from the drive battery.

More information on the manufacturer's website.

Technical data:

• Application: Airplane, Helicopter
• Continuous current [A] : 130
• Max. Peak current - instantaneous [A] : 160
• LiXX supply: 6 - 14
• Length [mm] : 110
• Width [mm] : 50
• Height [mm] : 33
• Weight [g] : 221
• unidirectional
• Brake: YES
• Input for sensors: No.
• Programmable: YES
• Programming card:


* Always follow the attached instructions.
