KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears.

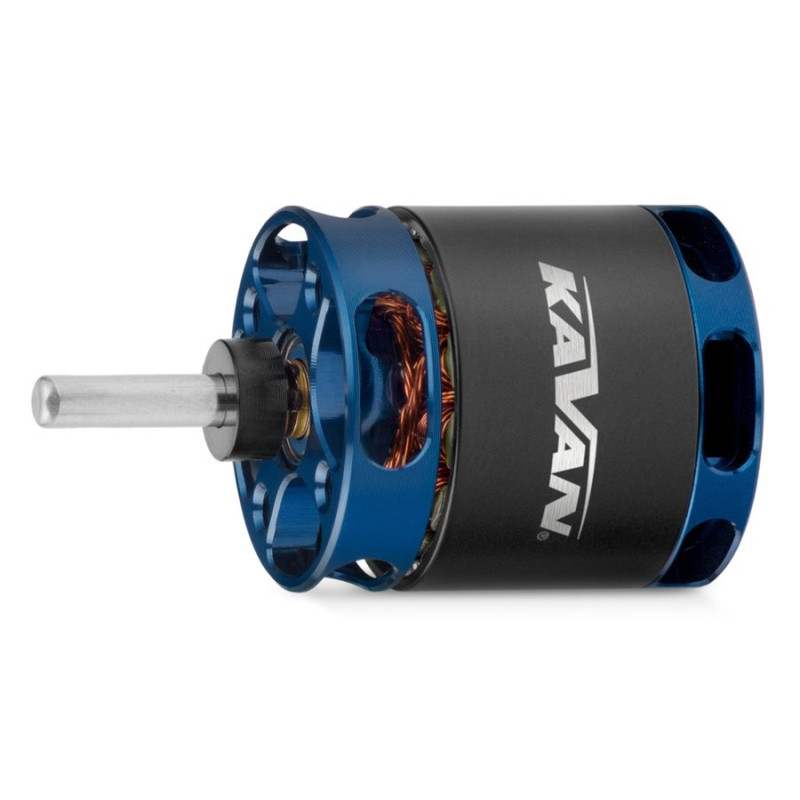

The KAVAN PRO 2225-1600 is a small-diameter miniature AC motor designed to propel small models with a flight weight of up to 450 g using a two- or three-cell LiPo battery. The motor has been specially developed to drive two-meter long, slim-fuselage RES gliders such as the KAVAN MIRAI and MIRAI V.

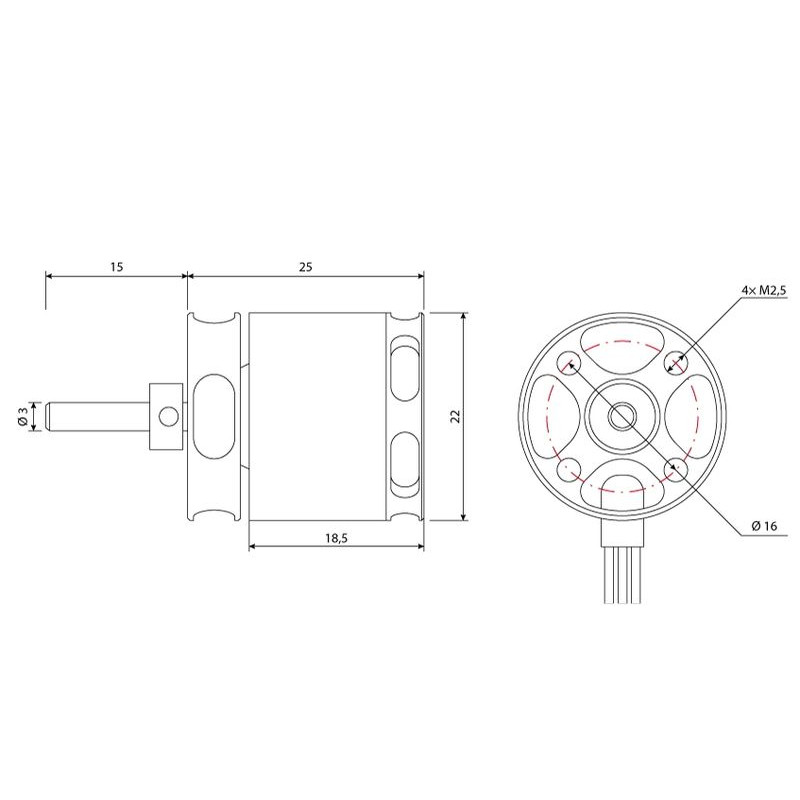

Engine assembly: KAVAN PRO 2225-1600 is designed for front mounting only. Use at least two (opposite) or four M2.5 screws that extend 3-4 mm from the front of the engine. The engine baffle should be made of aviation plywood with a thickness of min. 2 mm.

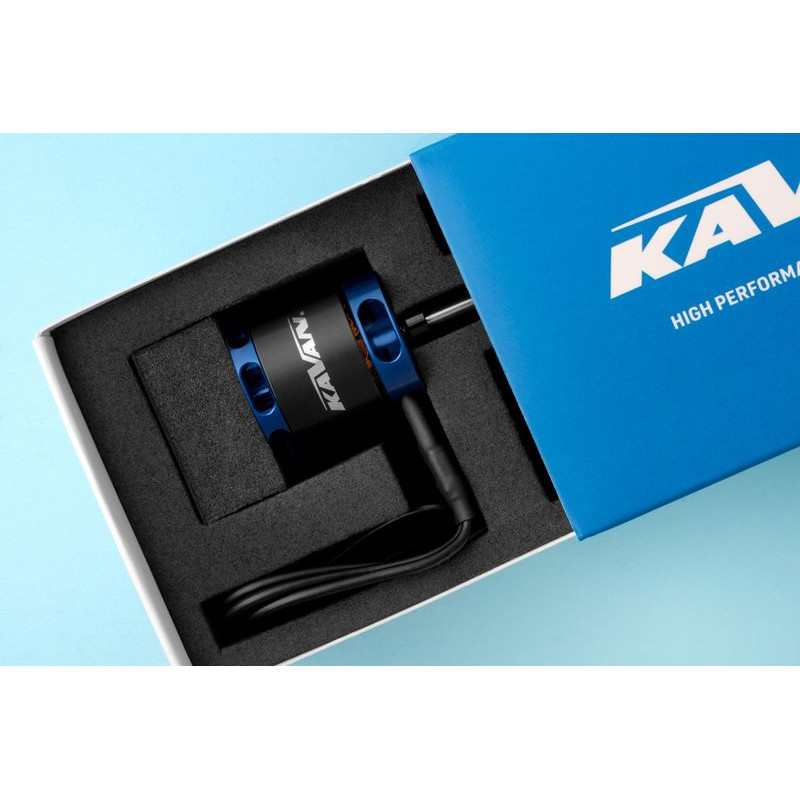

The engine kit includes: motor KAVAN PRO 2225-1600 with cables without connectors.
- Engine marking system: PRO xxYY-zzzz
- PRO - AC motor with rotating housing ("outrunner", "circulator")
- xx - diameter of the motor in mm
- YY - length of the motor in mm
- zzzz - number of revolutions per volt (rpm per V), "KV"
Technical data:
- Cell supply: LiXX 2 - 3
- Revolutions per volt [rpm/V]: 1600
- Max power (180 s) [W]: 220
- Internal resistance [mOhm]: 106
- Idle current (at 10 V) [mA]: 620
- Max peak current (180 s) [A]: 23
- Diameter [mm]: 22
- Length [mm]: 25
- Overall length [mm]: 40
- Shaft diameter [mm]: 3
- Weight [g]: 34,5
- Number of poles: 14
- Timing [°]: 15 - 25
- Speed controller [A]: 25 - 30
- For gliders weighing up to [g]: 450
- For "trainers" weighing up to [g]: 450
- For aerobatic models up to [g]: 400
- For 3D models weighing up to [g]: 330
- Recommended propeller 2S: 9x6" / 3S: 8x6"
*Follow the instructions included with the product.
