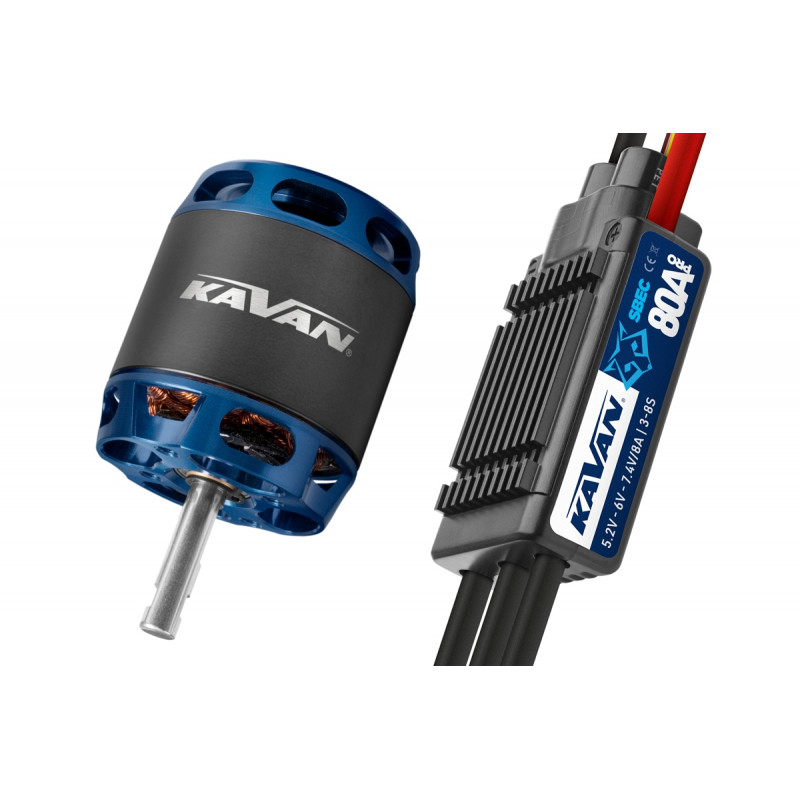

KAVAN PRO 4345- 730 MOTOR + REGULATOR PRO-80SB (KAV30.1650C)

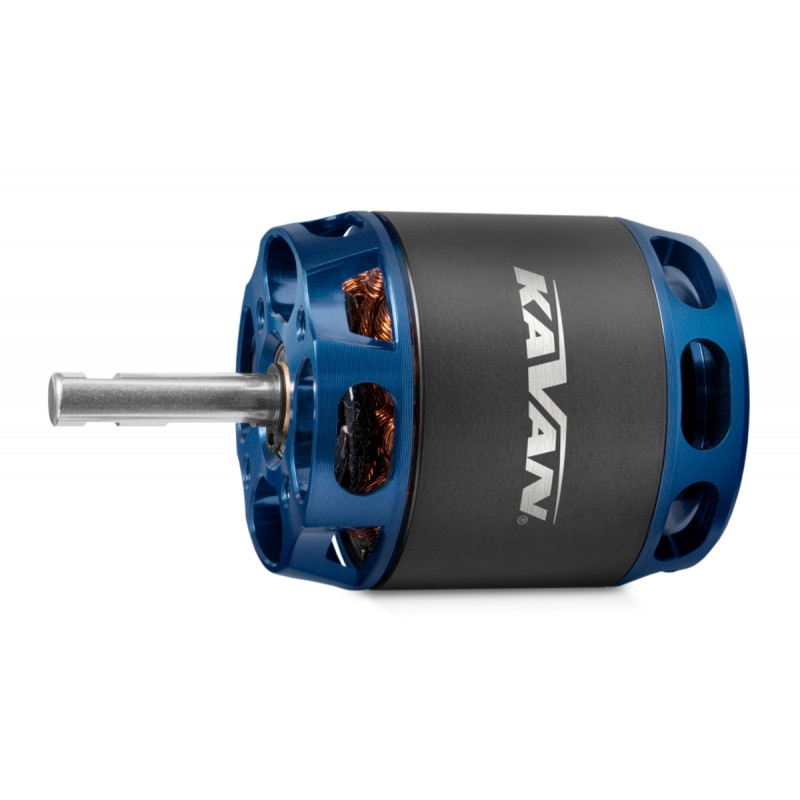

KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears

• Motor designation system: PRO xxYY-zzzz
• PRO - AC motor with rotating housing ("outrunner", "circulator")
• xx - diameter of the motor in mm
• YY - length of the motor in mm
• zzzz - number of revolutions per volt (rpm per V), "KV"

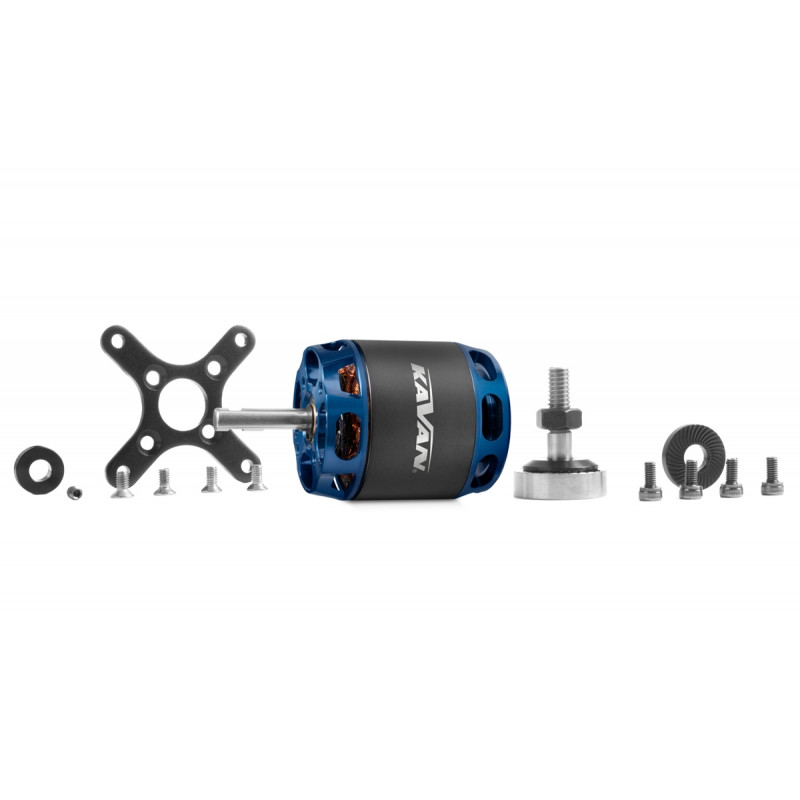

The motor kit includes: motor with wires with soldered gold-plated 4mm connectors, rear mounting kit, mounting screws.

Technical specifications:

• Cell power supply: LiXX 4 - 5
• RPM per volt [rpm/V]: 730
• Max power (180 s) [W]: 1300
• Internal resistance [mOhm]: 20
• Idle current (at 10 V) [A]: 1,6
• Max peak current (180 s) [A]: 70

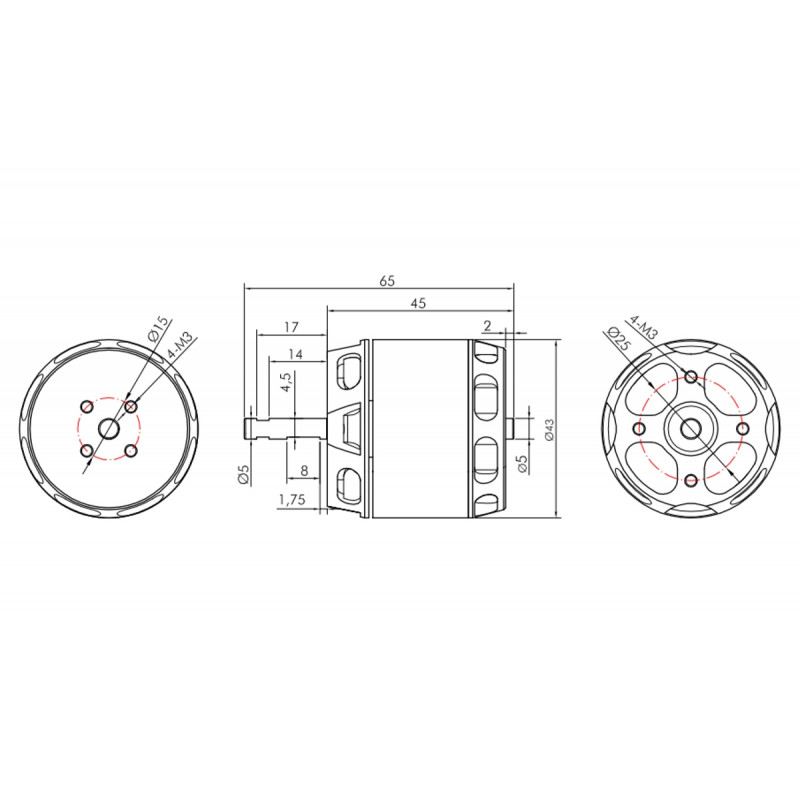

• Diameter [mm]: 43
• Length [mm]: 43
• Overall length [mm]: 65
• Shaft diameter [mm]: 5
• Weight [g]: 219
• Number of poles: 14
• Timing [°]: 20 - 25
• Speed controller [A]: 70 - 90
• For gliders weighing up to [g]: 3000
• For "trainers" weighing up to [g]: 3000
• For aerobatic models weighing up to [g]: 2500
• For 3D models weighing up to [g]: 1800
• Recommended propeller 4S: 14x8" - 15x8" / 5S: 13x8' - 14x7"

*Follow the instructions included with the product.

plus:

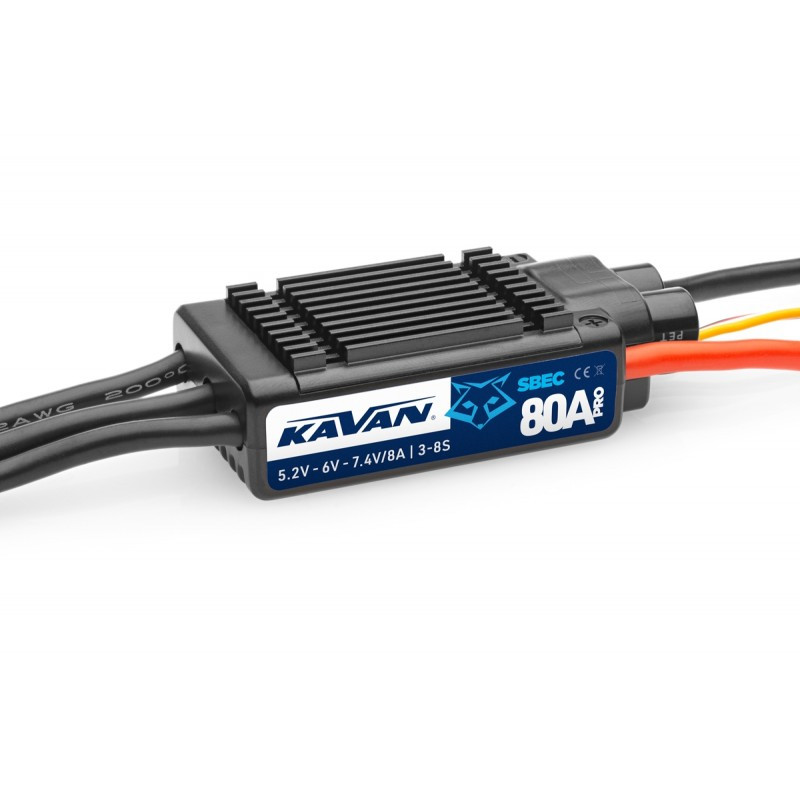

Programmable microprocessor controller for AC motors without sensors ("brushless, sensorless") for LiPo/Li-ion/LiFe battery-powered recreational and sport aircraft models. It uses advanced optimized control technology that significantly improves gas response and power stage control performance. The controller design takes into account the high long-term load capacity and durability that is required for models with more servos. The controllers are equipped with a powerful BEC pulse power supply stabilizer with selectable output voltage providing power to the receiver and servos from the drive battery.

For more information, visit the manufacturer's website.

Specifications:

• Application: Aircraft, Helicopter
• Continuous current [A]: 80
• Max peak current - instantaneous [A]: 100
• LiXX power supply: 3 - 8
• BEC voltage [V]: 5,2 - 7,4
• BEC current [A]: 8
• Length [mm]: 69,8
• Width [mm]: 34,6
• Height [mm]: 19,2
• Weight [g]: 92
• unidirectional
• Brake: YES
• Input for sensors: No
• Programmable: TAk
• Programming card: KAVAN PRO (KAV32.31035) or (1RC31035)

*Always follow the enclosed instructions.
