KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears
- Motor designation system: PRO xxYY-zzzz
- PRO - AC motor with rotating housing ("outrunner", "circulator")
- xx - diameter of the motor in mm
- YY - length of the motor in mm
- zzzz - number of revolutions per volt (rpm per V), "KV"

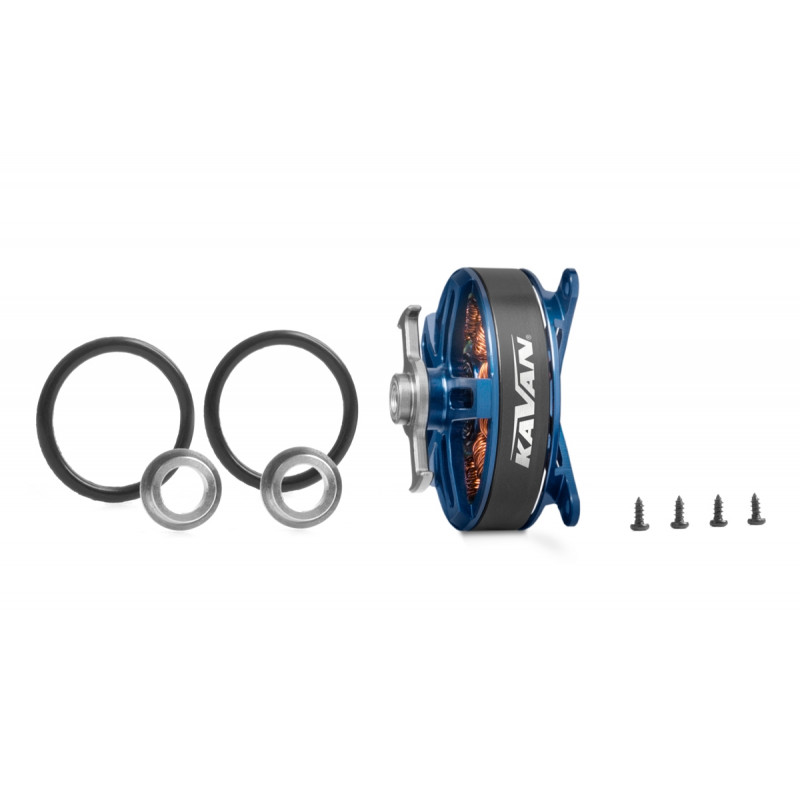

The motor set includes: motor with wires without connectors, rubber rings, mounting screws.
Technical data:
- Cell power supply: LiXX 2 - 3
- RPM per volt [rpm/V]: 2300
- Max power (180 s) [W]: 110
- Internal resistance [mOhm]: 88
- Idle current (at 10 V) [mA]: 750
- Max peak current (180 s) [A]: 15

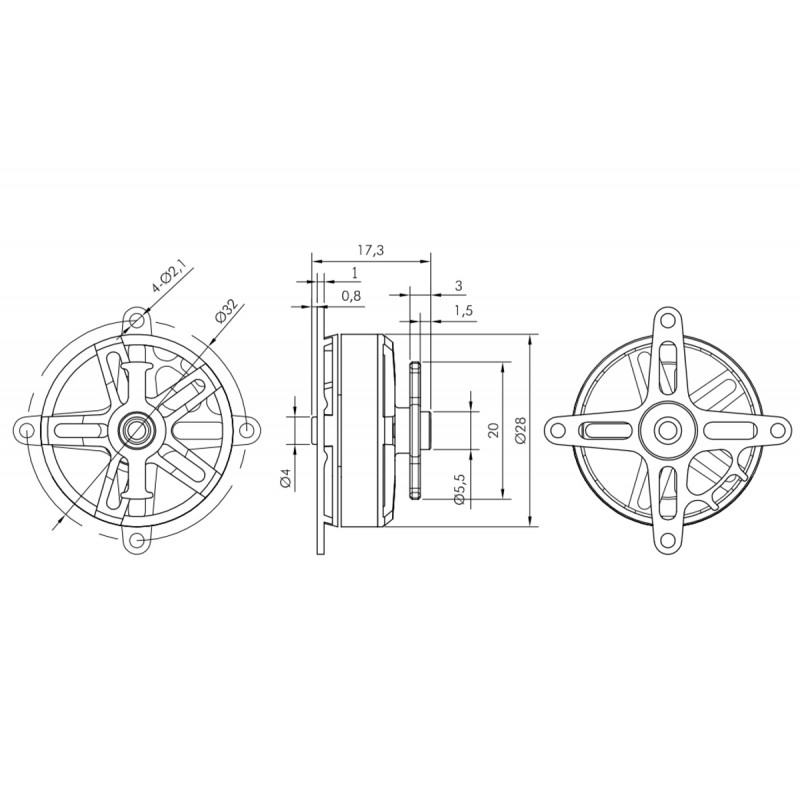

- Diameter [mm]: 28
- Length [mm]: 11
- Overall length [mm]: 17,3
- Shaft diameter [mm]: 4
- Weight [g]: 20
- Number of poles: 14
- Timing [°]: 20 - 25
- Speed controller [A]: 15 - 20
- For gliders weighing up to [g]: 250
- For "trainers" weighing up to [g]: 250
- For aerobatic models up to [g]: 200
- For 3D models weighing up to [g]: 150
- Recommended 2S propeller: 8x4" - 8x4,3"
*Follow the instructions included with the product.
