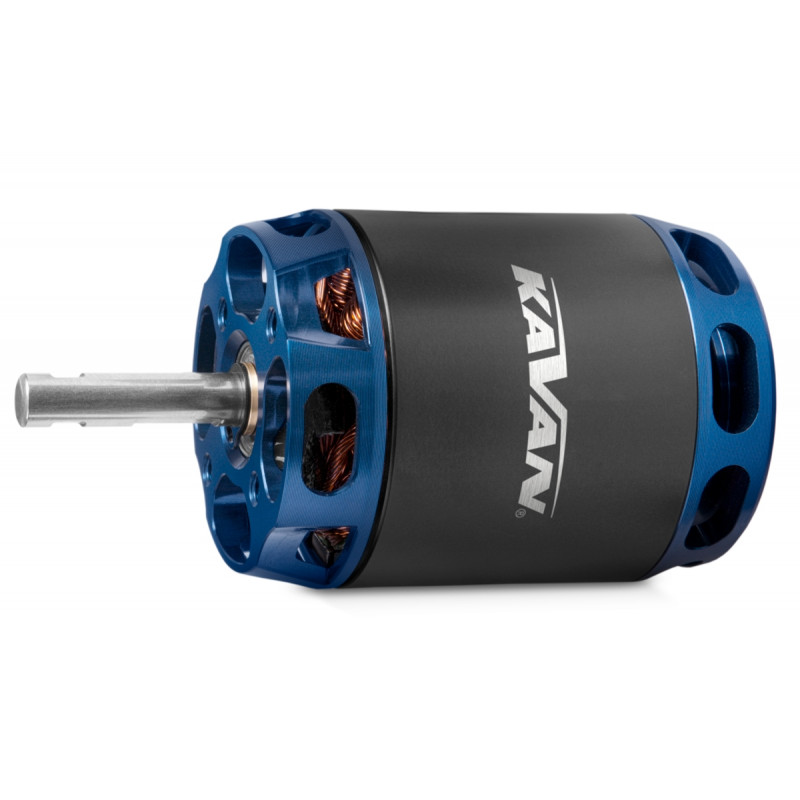

KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears
- Motor designation system: PRO xxYY-zzzz
- PRO - AC motor with rotating housing ("outrunner", "circulator")
- xx - diameter of the motor in mm
- YY - length of the motor in mm
- zzzz - number of revolutions per volt (rpm per V), "KV"
The motor set includes: motor with wires with soldered gold-plated 3.5 mm connectors, rear mounting kit, mounting screws.
Technical specifications:
- Cell power supply: LiXX 6
- RPM per volt [rpm/V]: 500
- Max power (180 s) [W]: 578
- Internal resistance [mOhm]: 67,5
- Idle current (at 10 V) [A]: 1,25
- Max peak current (180 s) [A]: 26
- Diameter [mm]: 35,2
- Length [mm]: 47
- Overall length [mm]: 69,5
- Shaft diameter [mm]: 5
- Weight [g]: 173
- Number of poles: 14
- Timing [°]: 20 - 25
- Speed controller [A]: 60 - 70
- For gliders weighing up to [g]: 2800
- For "trainers" weighing up to [g]: 2700
- For aerobatic models up to [g]: 2300
- For 3D models weighing up to [g]: 1500
- Recommended 6S propeller: 12x6" - 13x6,5"
*Follow the instructions included with the product.
