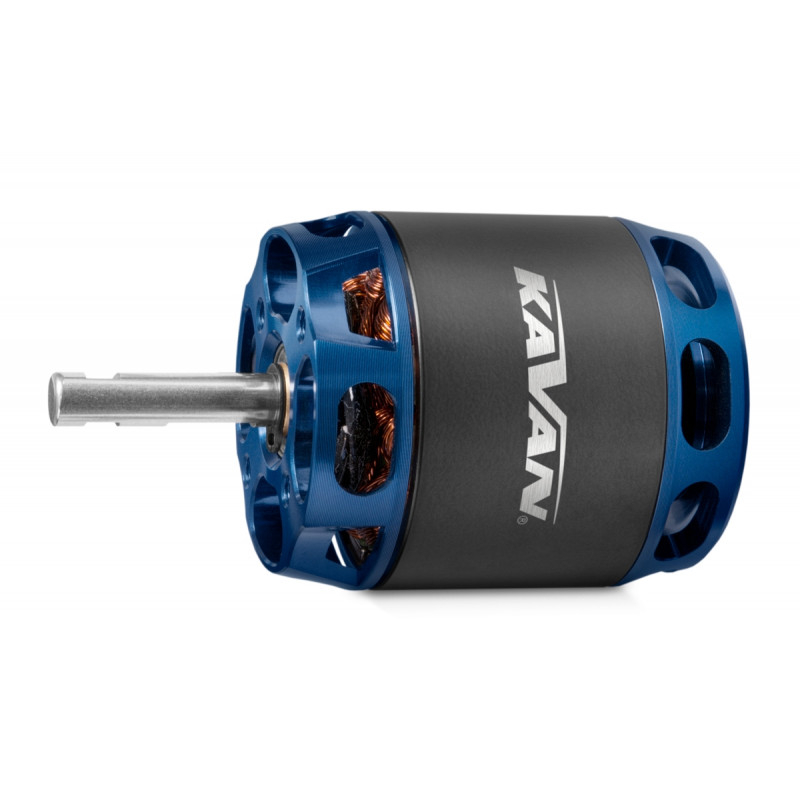

KAVAN PRO 3542- 830 ENGINE

KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears

• Motor designation system: PRO xxYY-zzzz
• PRO - AC motor with rotating housing ("outrunner", "circulator")
• xx - diameter of the motor in mm
• YY - length of the motor in mm
• zzzz - number of revolutions per volt (rpm per V), "KV"

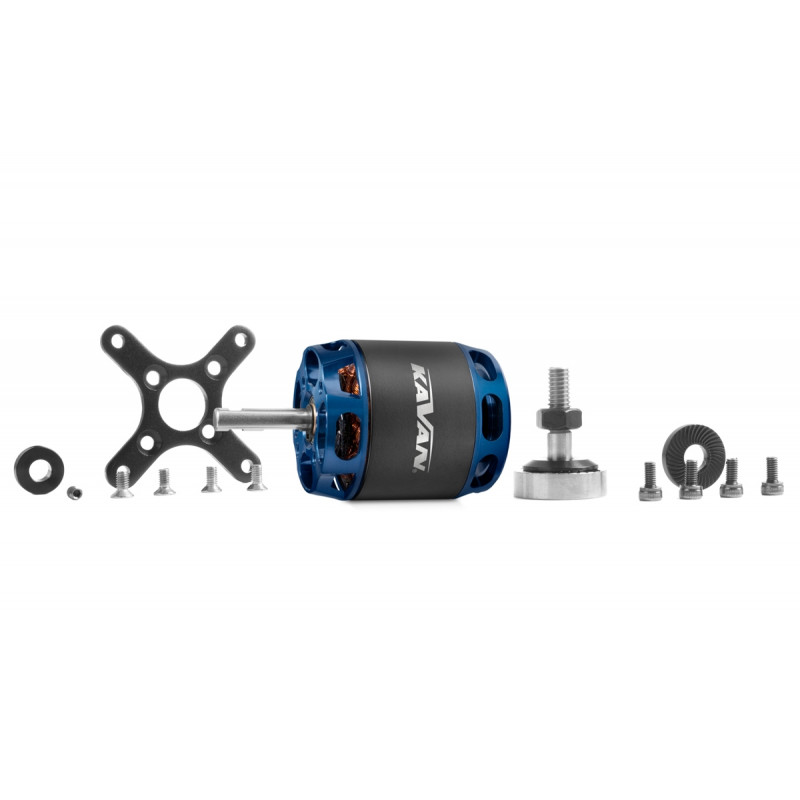

The motor set includes: motor with wires with soldered gold-plated 3.5 mm connectors, rear mounting kit, mounting screws.

Technical data:

• Cell power supply: LiXX 3 - 4
• RPM per volt [rpm/V]: 830
• Max power (180 s) [W]: 700
• Internal resistance [mOhm]: 39
• Idle current (at 10 V) [A]: 1,6
• Max peak current (180 s) [A]: 45

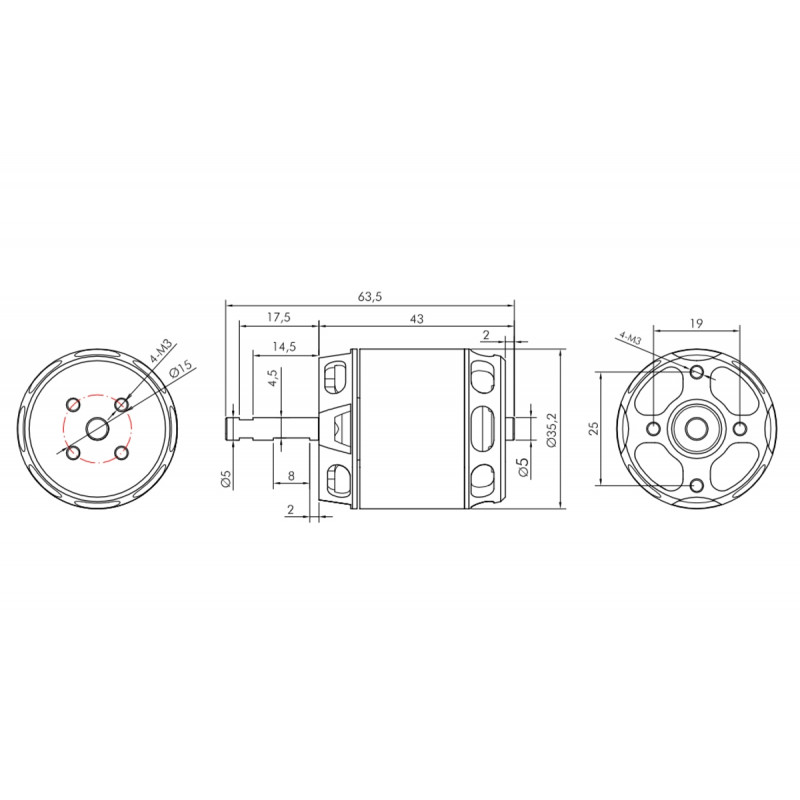

• Diameter [mm]: 35,2
• Length [mm]: 41
• Overall length [mm]: 63,5
• Shaft diameter [mm]: 5
• Weight [g]: 139
• Number of poles: 14
• Timing [°]: 20 - 25
• Speed controller [A]: 50 - 60
• For gliders weighing up to [g]: 2400
• For "trainers" weighing up to [g]: 2200
• For aerobatic models up to [g]: 1900
• For 3D models weighing up to [g]: 1400
• Recommended propeller 3S: 13x6.5" - 14x7" / 4S: 11x7" - 12x6"

*Follow the instructions included with the product.
