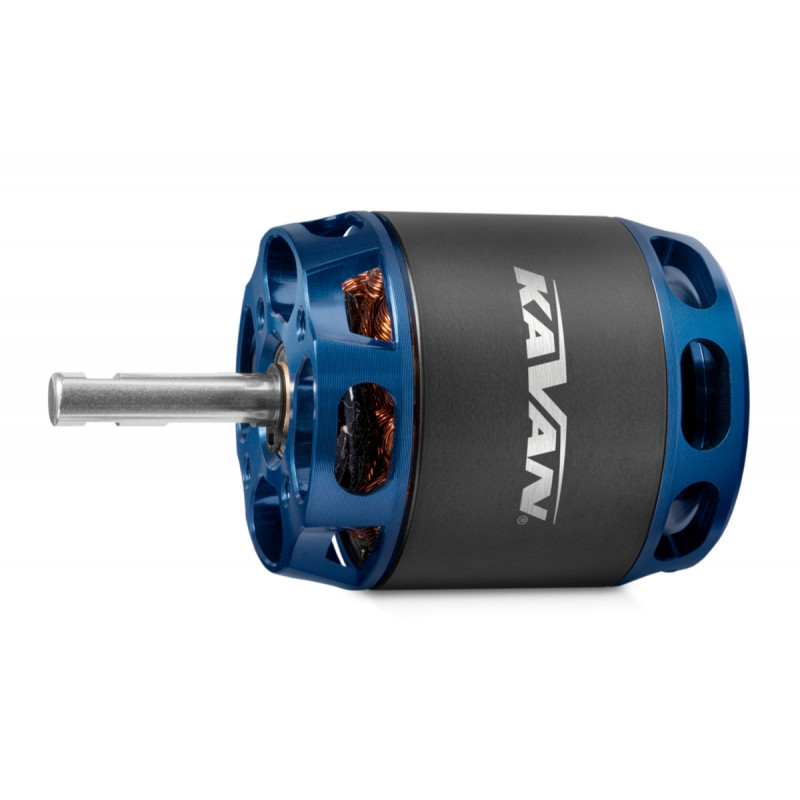

KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears
- Motor designation system: PRO xxYY-zzzz
- PRO - AC motor with rotating housing ("outrunner", "circulator")
- xx - diameter of the motor in mm
- YY - length of the motor in mm
- zzzz - number of revolutions per volt (rpm per V), "KV"

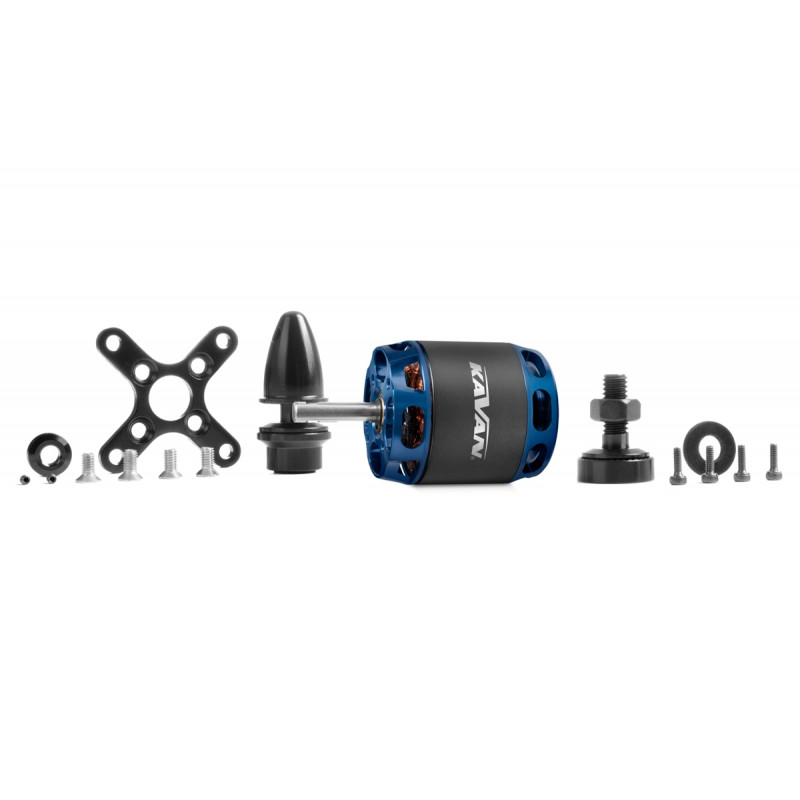

The motor kit includes: motor with wires with soldered gold-plated 3.5mm connectors, rear mounting kit, mounting screws.
Technical specifications:
- Cell power supply: LiXX 3 - 4
- RPM per volt [rpm/V]: 1050
- Max power (180 s) [W]: 470
- Internal resistance [mOhm]: 64
- Idle current (at 10 V) [A]: 1
- Max. peak current (180 s) [A]: 30

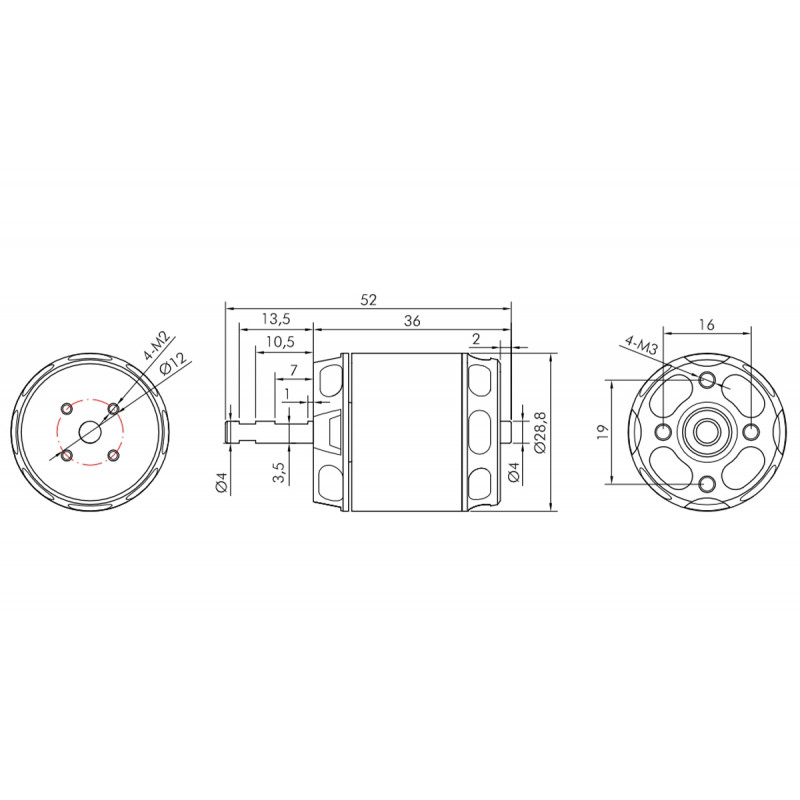

- Diameter [mm]: 28,8
- Length [mm]: 34
- Overall length [mm]: 52
- Shaft diameter [mm]: 4
- Weight [g]: 83
- Number of poles: 14
- Timing [°]: 20 - 25
- Speed controller [A]: 30 - 40
- For gliders weighing up to [g]: 950
- For "trainers" weighing up to [g]: 900
- For aerobatic models with weights up to [g]: 800
- For 3D models weighing up to [g]: 600
- Recommended propeller 3S: 9x6" - 10x5" / 4S: 9x6"
*Follow the instructions included with the product.
