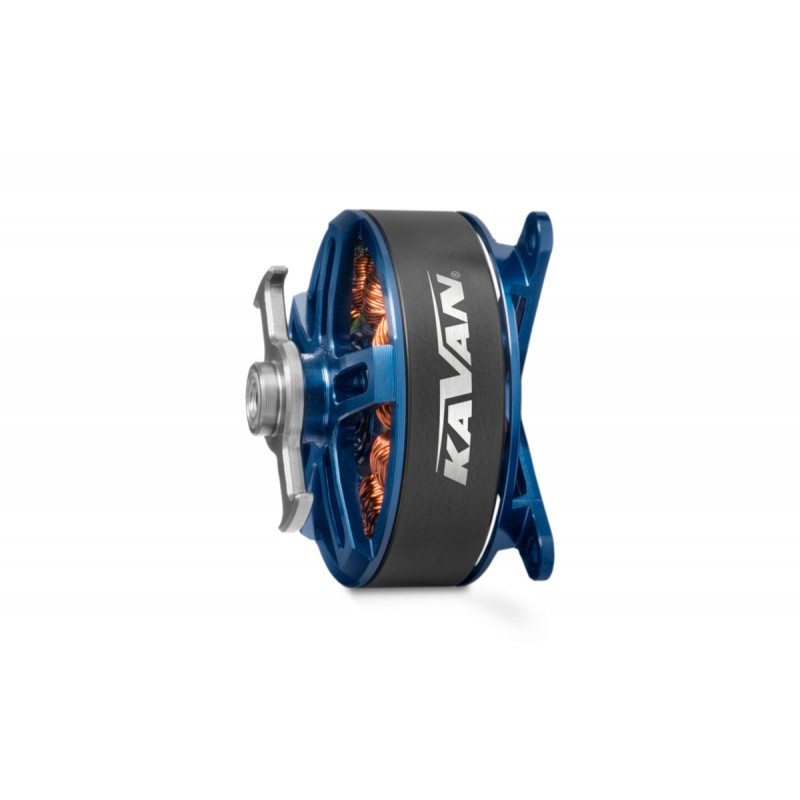

KAVAN PRO 2813-1500 ENGINE

KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears

• Motor designation system: PRO xxYY-zzzz
• PRO - AC motor with rotating housing ("outrunner", "circulator")
• xx - diameter of the motor in mm
• YY - length of the motor in mm
• zzzz - number of revolutions per volt (rpm per V), "KV"

The motor set includes: motor with wires without connectors, rubber rings, mounting screws.

Technical data:

• Cell power supply: LiXX 2 - 3
• RPM per volt [rpm/V]: 1500
• Max power (180 s) [W]: 170
• Internal resistance [mOhm]: 96,5
• Idle current (at 10 V) [mA]: 700
• Max peak current (180 s) [A]: 15

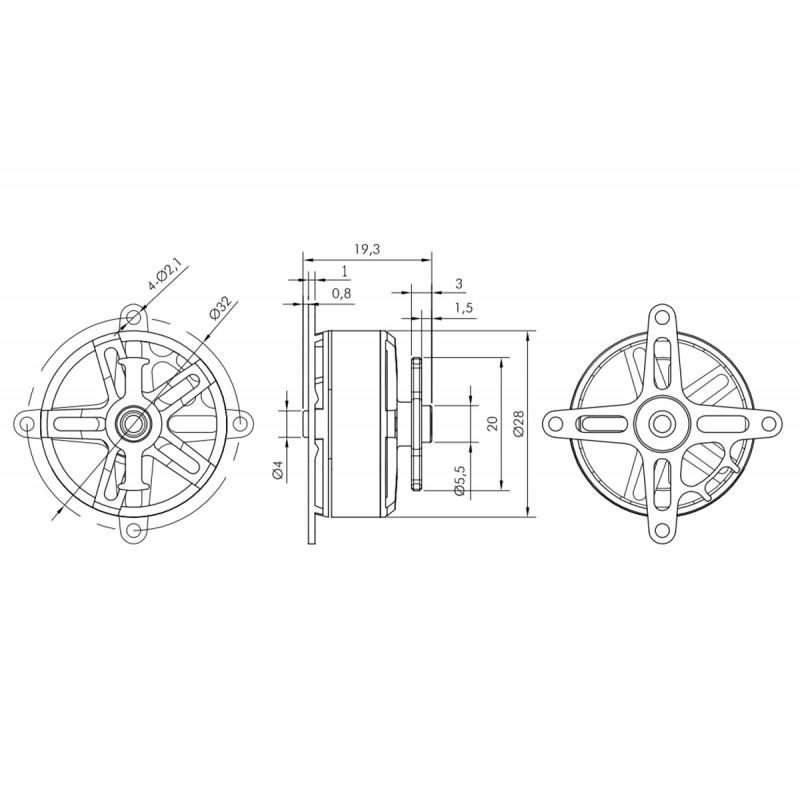

• Diameter [mm]: 28
• Length [mm]: 13,3
• Overall length [mm]: 19,3
• Shaft diameter [mm]: 4
• Weight [g]: 27,6
• Number of poles: 14
• Timing [°]: 20 - 25
• Speed controller [A]: 15 - 20
• For gliders weighing up to [g]: 300
• For "trainers" weighing up to [g]: 280
• For aerobatic models with weights up to [g]: 250
• For 3D models weighing up to [g]: 200
• Recommended propeller 2S: 9x5" - 10x6" / 3S: 8x4"

*Follow the instructions included with the product.
