KAVAN PRO 2809-2300 ENGINE

KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears

• Motor designation system: PRO xxYY-zzzz
• PRO - AC motor with rotating housing ("outrunner", "circulator")
• xx - diameter of the motor in mm
• YY - length of the motor in mm
• zzzz - number of revolutions per volt (rpm per V), "KV"

The motor set includes: motor with wires without connectors, rubber rings, mounting screws.

Technical data:

• Cell power supply: LiXX 2
• RPM per volt [rpm/V]: 2300
• Max power (180 s) [W]: 60
• Internal resistance [mOhm]:
• Idle current (at 10 V) [mA]: 400
• Max peak current (180 s) [A]: 8,5

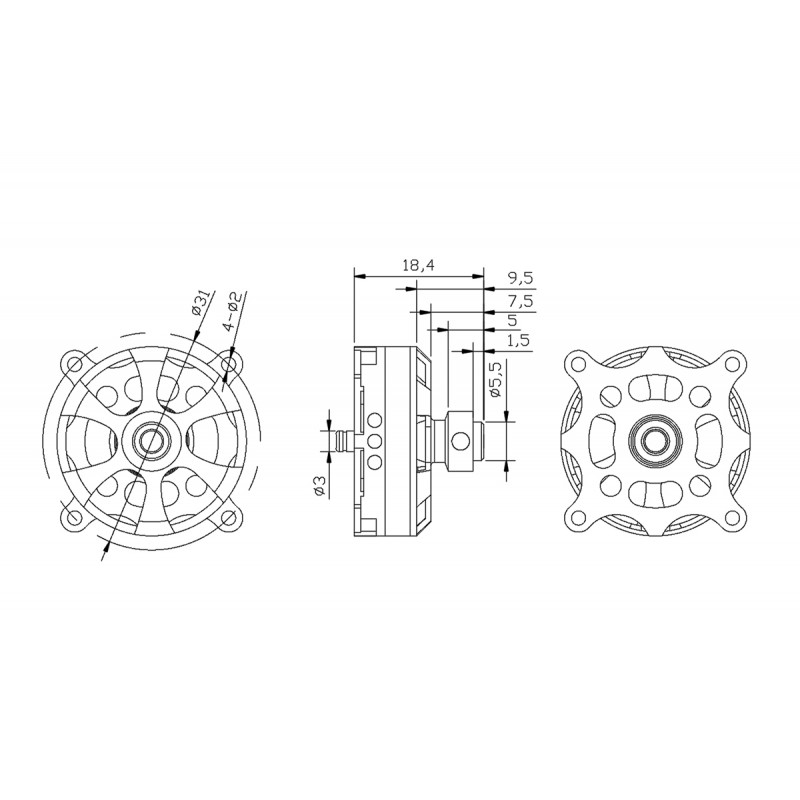

• Diameter [mm]: 28
• Length [mm]: 8,9
• Overall length [mm]: 18,4
• Shaft diameter [mm]: 3
• Weight [g]: 15
• Number of poles: 14
• Timing [°]: 15 - 25
• Speed controller [A]: 8 - 12
• For gliders weighing up to [g]: 220
• For "trainers" weighing up to [g]: 220
• For aerobatic models weighing up to [g]: 180
• For 3D models weighing up to [g]: 130
• Recommended 2S propeller: 6x3" - 7x3,5"

*Follow the instructions included with the product.
