Kavan engines

KAVAN C2822-1200 ENGINE

€21.39
12-7086
KAVAN Europe
In stock

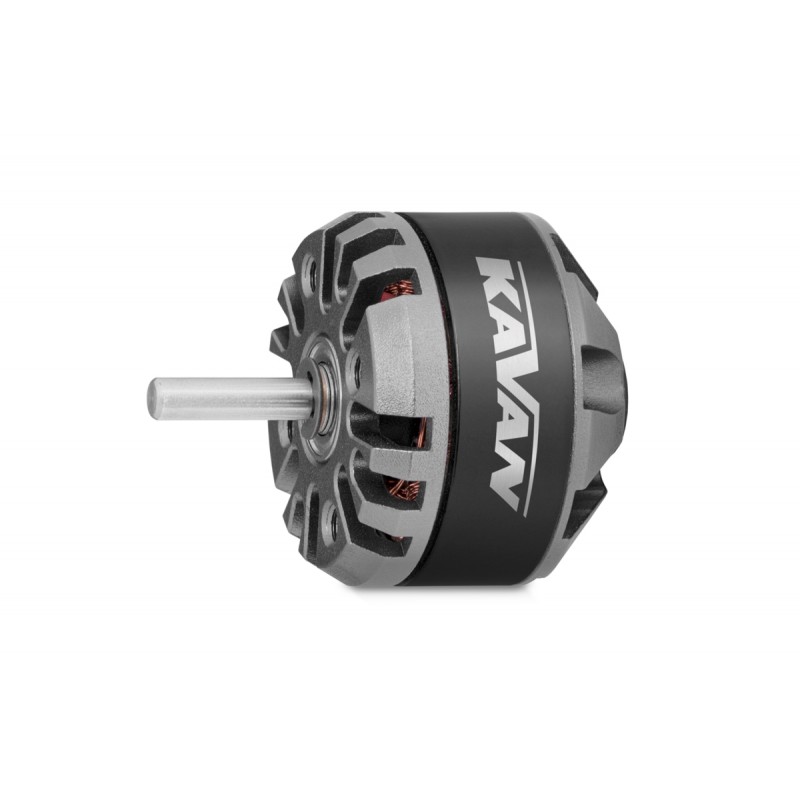

KAVAN C motors are powerful brushless rotary electric motors ("outrunner") with excellent electrical characteristics, sophisticated design and excellent manufacturing processing. They are a very good choice for flying recreational sport models with excellent performance, good efficiency and favorable price. They are low-speed, high-torque motors that can handle large-diameter propellers and climb without the need for gears.

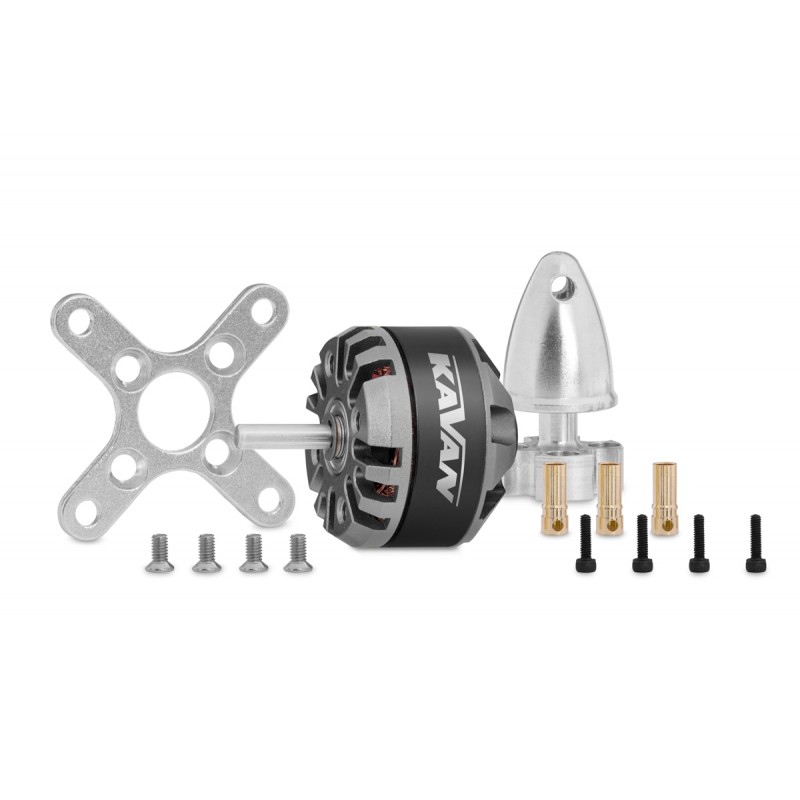

Comes with: motor with soldered connectors, cross-brace, hub mount, screws

Specifications:

  • Power supply [LiXX]: 2 - 3
  • KV [rpm]: 1200
  • Max. power (30s / 3S LiPo) [W]: 75
  • No-load current (2S) [mA]: 300
  • Max. peak current (30s) [A]: 9

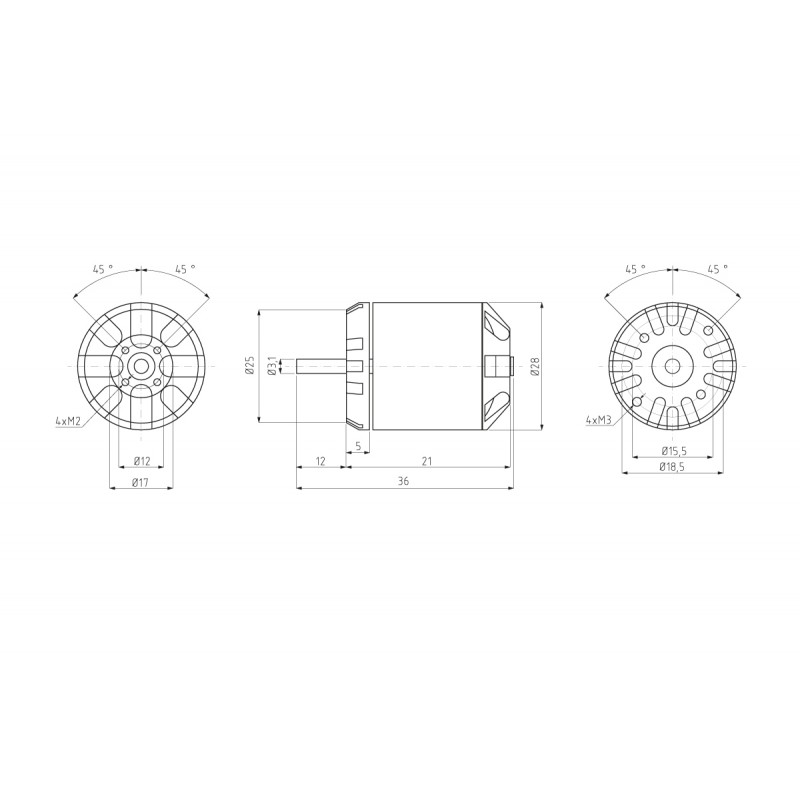

  • Diameter [mm]: 27,8
  • Length [mm]: 23
  • Shaft diameter [mm]: 3,175
  • Weight [g]: 34
  • Number of fields: 14
  • Recommended regulator [A]: 18 - 20
  • Weight of models up to [g]: gliders - 350 / trainers - 350 / acrobats - 300 / 3D - 250
  • recommended propeller ["]: 2S: 8x5-6" / 3S: 7x4-5"
