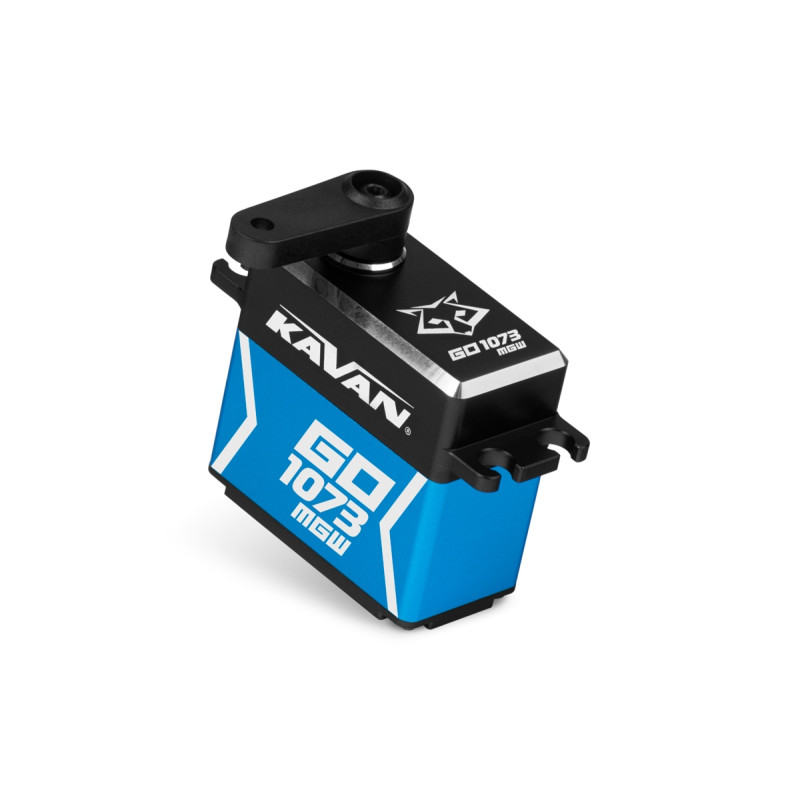

KAVAN SERWO GO-1073MGW DIGITAL waterproof

Programmable digital servo with metal gears, brushless motor and two ball bearings for use in model aircraft, cars and boats. For excellent cooling even under heavy load, the servo is in an aluminum waterproof housing (IP67).

A wide range of servo parameters (pitch magnitude, servo neutrals, stop setting, output power, sensitivity, soft start, reverse pitch, Sanwa SSR / Futaba SR mode, fail-safe mode, overload protection and reset - restoring factory settings ) can be programmed using a USB program mer / GO servo interface and PC operating program

Technical specifications:

• size: Standard
• voltage [V]: 4,8 - 8,4
• torque [kg/cm]: 4.8V - 22 / 6V - 26 / 7.4V - 29 / 8.4 - 32
• speed [s/60°]: 4.8V - 0.18 / 6V - 0.16 / 7.4V - 0.145 / 8.4V - 0.135
• gears: metal
• bearing: 2 x ball bearing

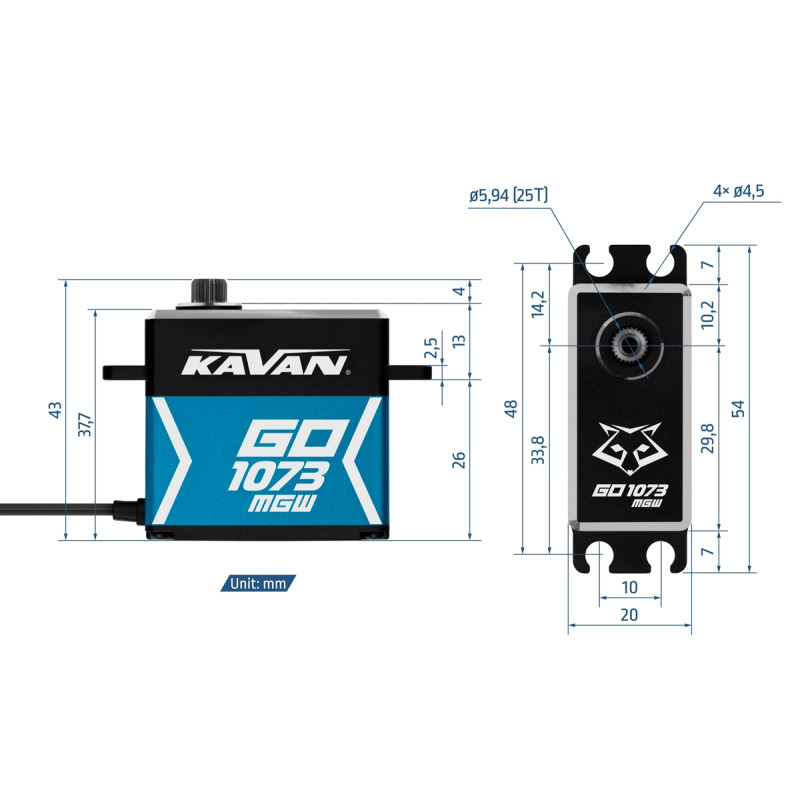

• length [mm]: 40
• width [mm]: 20
• height [mm]: 37,5
• weight [g]: 73
• output shaft: 25 teeth (5.92 mm)

More information and photos on the manufacturer's website.

*Follow the instructions included with the product.
