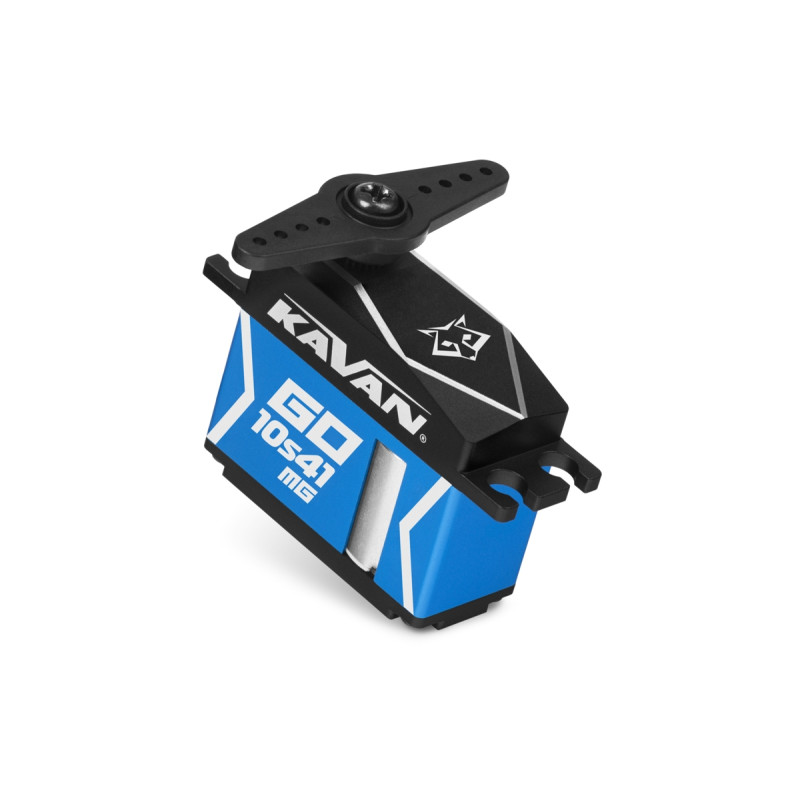

Programmable digital servo with titanium gears, non-dielectric motor and two ball bearings for use in models: airplanes, gliders, hotliners, etc. For excellent cooling even under heavy load, the servo is in an aluminum housing.
With the help of the USB programmer / GO servo interface and PC operating program, a wide range of servo parameters can be programmed (servo swing magnitude, servo neutrals, stop setting, output power, sensitivity, soft start, reverse swing, Sanwa SSR / Futaba SR mode, fail-safe mode, overload protection and reset - restore factory settings )

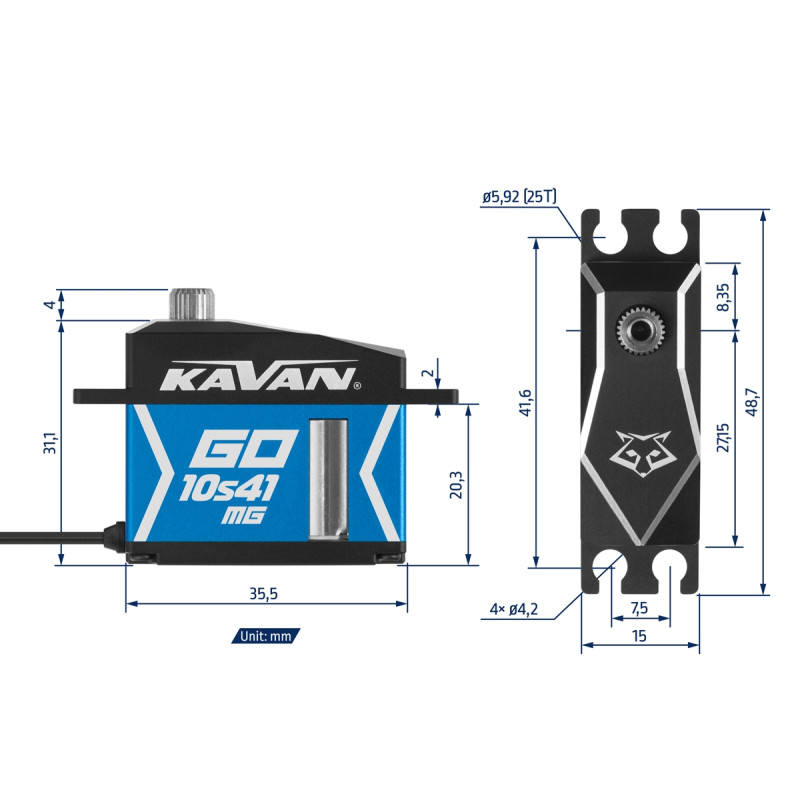

Technical specifications:
- size: mini
- voltage [V]: 4,8 - 8,4
- torque [kg/cm]: 4.8V - 6.0 / 6V - 7.0 / 7.4V - 9.0 / 8.4 - 10.5
- speed [s/60°]: 4.8V - 0.10 / 6V - 0.09 / 7.4V - 0.08 / 8.4V - 0.075
- gears: titanium
- bearing: 2 x ball bearing
- length [mm]: 35,5
- width [mm]: 15
- height [mm]: 29,2
- weight [g]: 41
- output shaft: 25 teeth (5.92 mm)
More information and photos on the manufacturer's website.
*Follow the instructions included with the product.
