Kavan Digital Servers

KAV20.1053MGW

€35.24
12-9404
KAVAN Europe
In stock

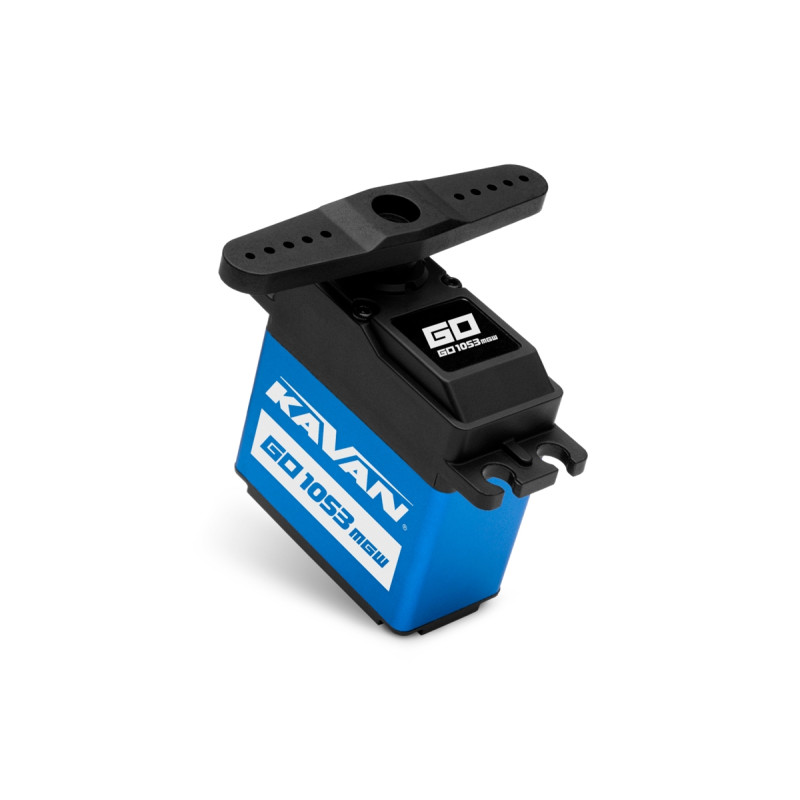

Programmable digital waterproof servo with titanium gears and two ball bearings for use in model aircraft, cars and boats. For excellent cooling even under heavy load, the servo is in a plastic waterproof (IP67) housing with a center section formed by an aluminum heat sink.

With the help of the USB programmer/interface GO servo and PC operating program, a wide range of servo parameters can be programmed (servo swing magnitude, servo neutrals, stop setting, output power, sensitivity, soft start, reverse swing, Sanwa SSR Futaba SR mode, fail-safe mode, overload protection and reset - restore factory settings )

Technical specifications:

  • servo size: Standard
  • voltage [V]: 4,8 - 8,4
  • torque [kg/cm]: 4.8V - 13 / 6V - 15 / 7.4V - 18 / 8.4 - 20
  • speed [s/60°]: 4.8V - 0.23 / 6V - 0.21 / 7.4V - 0.20 / 8.4V - 0.17
  • gears: titanium
  • bearing: 2 x ball bearing

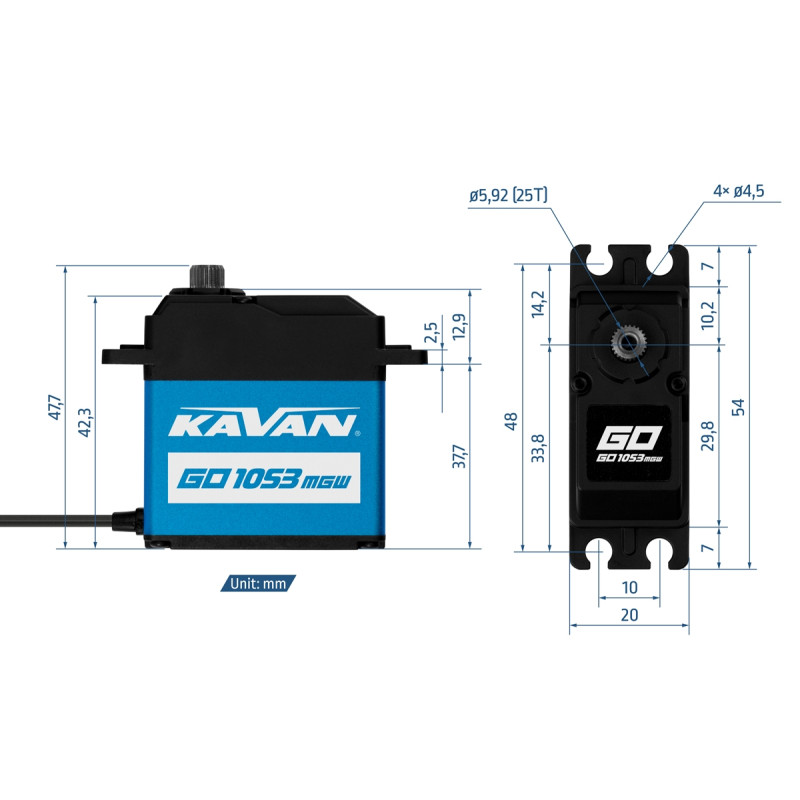

  • length [mm]: 40
  • width [mm]: 20
  • height [mm]: 42,3
  • weight [g]: 63
  • output shaft: 25 teeth

*Follow the instructions included with the product.
