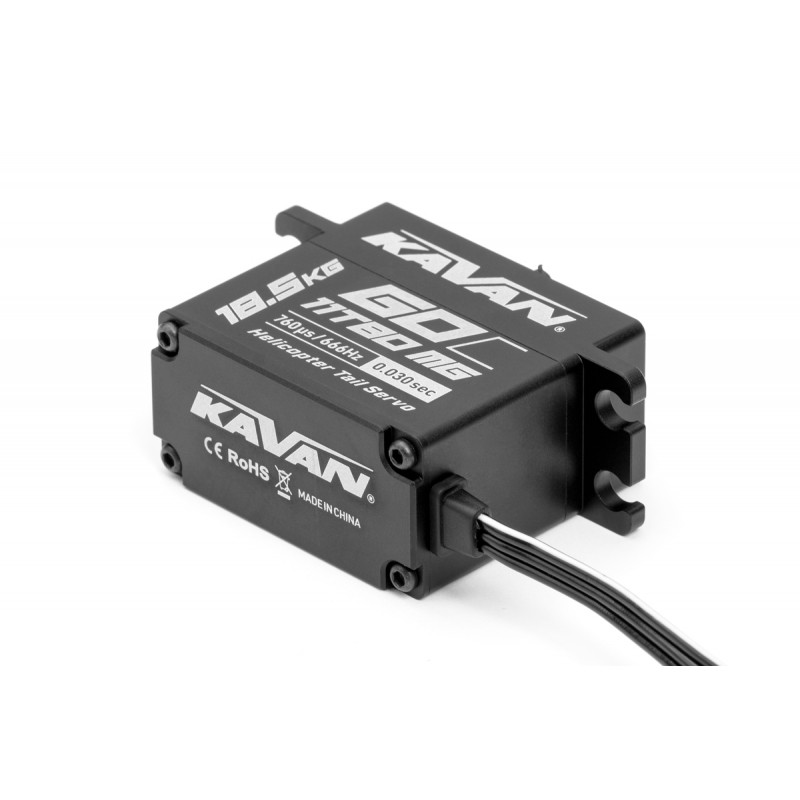

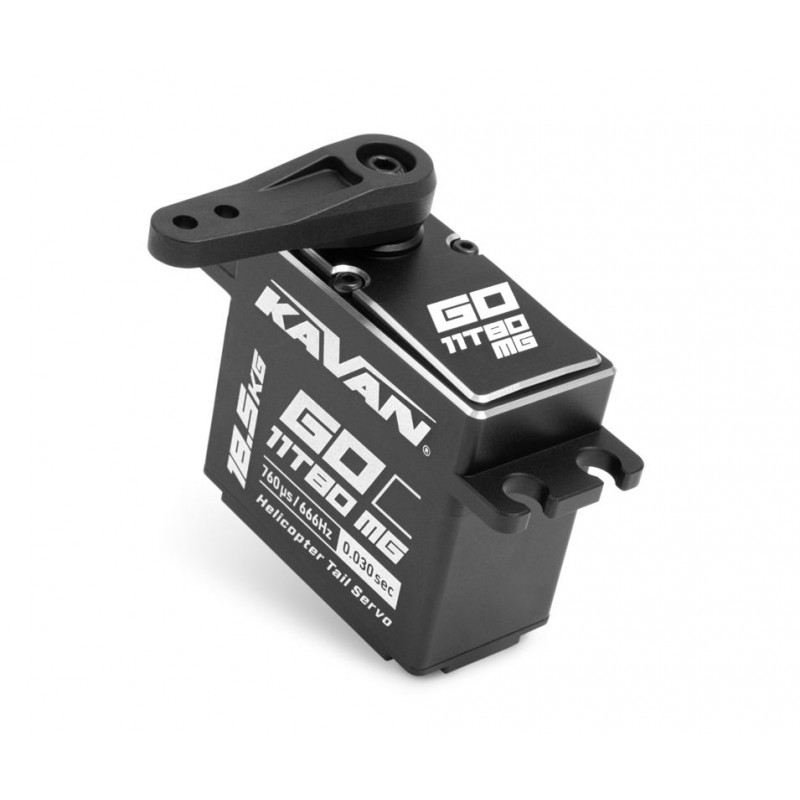

A powerful and very fast 79g standard narrow-band servo with AC (brushless) motor with titanium/steel gears and output shaft mounted on three ball bearings for use as a rotor-balancing servo in 500-800 RC helicopters. To ensure excellent cooling even under heavy load, the servo is housed in an aluminum case.
Narrow-band servo - neutral 760 µs, repetition rate up to 666 Hz - only for use with compatible gyro/skid control unit systems as a trim (tail) rotor servo; cannot be connected directly to the common receiver output (neutral 1520 µs). Make sure you set the correct type (narrow band) of servo on the gyro/control unit.
The servo is not programmable.
Extended supply voltage 4.8-7.4 V (nominal).
Specifications:
- Servo size: Standard
- Servo type: Digital
- Programmable: NO
- Torque at 4.8 V [kg/cm]: 12
- Torque at 6.0 V [kg/cm]: 14
- Torque at 7.4 V [kg/cm]: 15,5
- Torque at 8.4 V [kg/cm]: 18,5
- Speed at 4.8 V [s/60°]: 0,045
- Speed at 6.0 V [s/60°]: 0,039
- Speed at 7.4 V [s/60°]: 0,034
- Speed at 8.4 V [s/60°]: 0,03
- Gear: Metal
- Ball bearings: 3x
- High voltage: YES
- Power supply [V]: 4,8 - 8,4

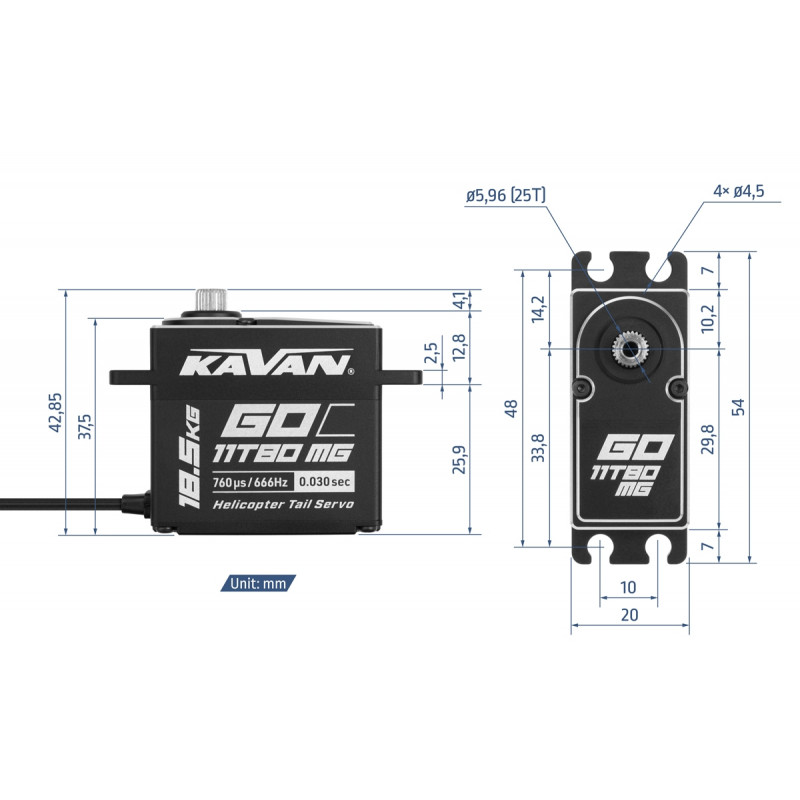

- Length [mm]: 40
- Width [mm]: 20
- Height [mm]: 37,5
- Weight [g]: 79
- 25 tooth/5.92mm hexagonal output shaft.
- Intended for: Helicopters
*Follow the instructions included with the product.
