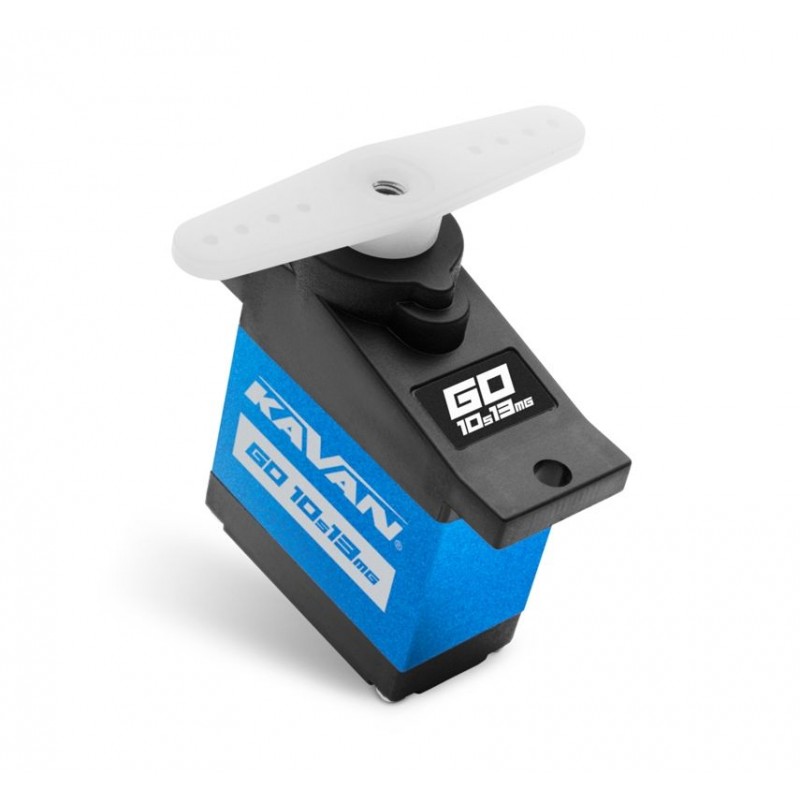

KAV20.10S1 3M G SERVO GO-10S1 3M G

Very fast programmable digital picoservo from Kavan with titanium gears with output shaft mounted on two ball bearings for use in small RC aircraft models, RC cars 1: 16-1: 24, helicopters size 400-450 etc. For perfect cooling even under heavy loads the servo is in a plastic housing with the center part formed by an aluminum heat sink.

A wide range of servo parameters (Defection Size, Servo Neutral, Output Power, Sensitivity, Soft Start, Deviation Inversion, Futaba SR Mode, Sanwa SSR Mode, Fail safe, Overload Protection, Reset) can be programmed via USB programmer / GO servo interface and PC tool. )

Technical data:

• voltage [V] : 4.8 - 6
• torque [kg/cm] : 4.8V - 1.6 / 6V - 2
• speed [s/60st] : 4.8V - 0.09 / 6V - 0.08
• gears: titanium
• bearing: 2 x BB
• size: mini

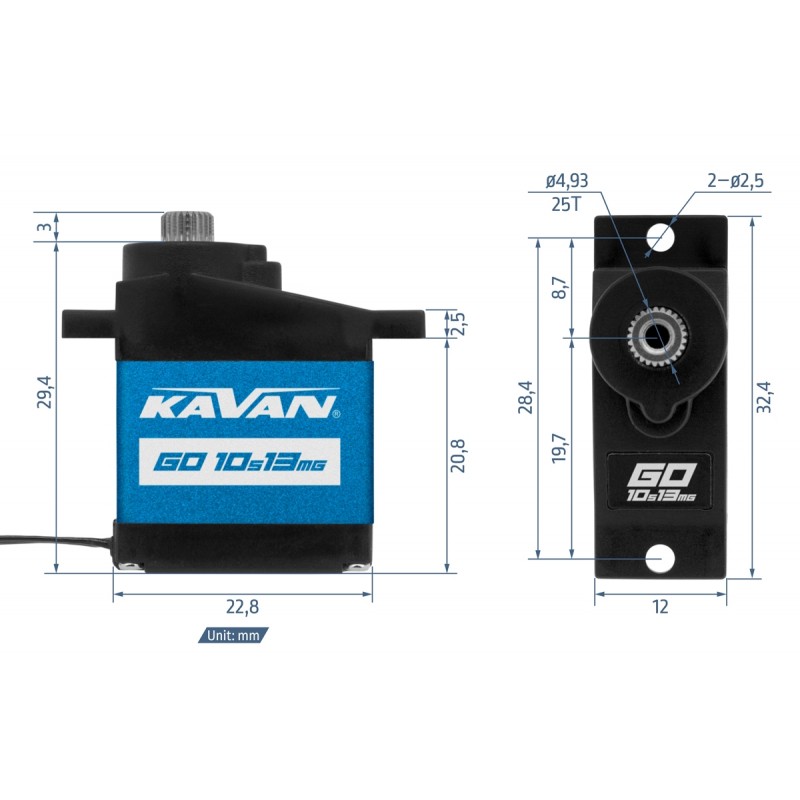

• length [mm] : 22.8
• width [mm] : 12
• height [mm] : 29.4
• weight [g] : 15
• output shaft: 25 teeth (4.94 mm)
