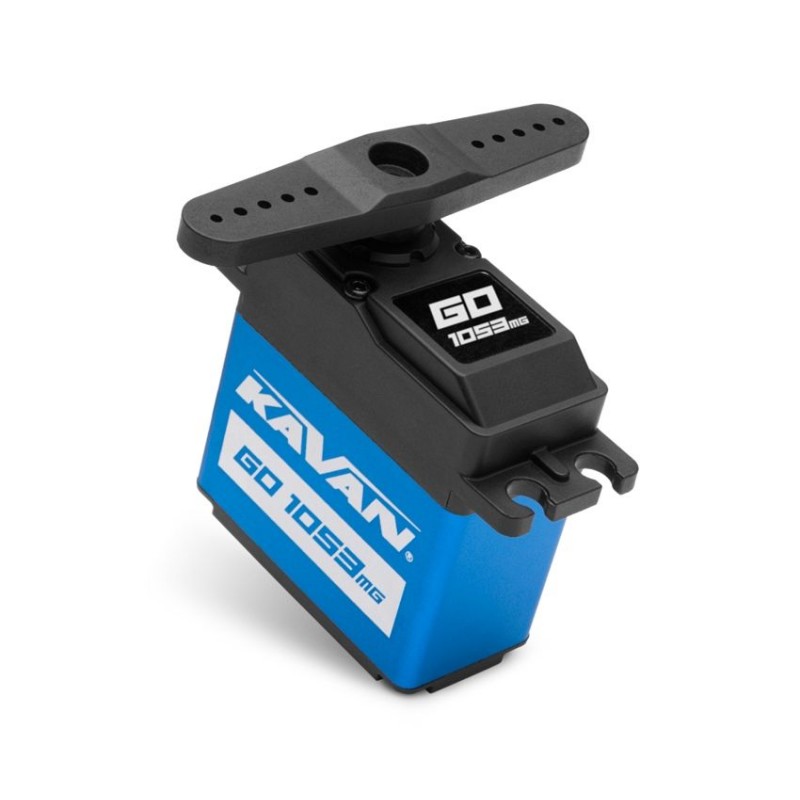

KAV20.105 3M G SERVO GO-105 3M G

Very fast programmable digital servo from Kavan with titanium gears with an output shaft mounted on two ball bearings for use in RC model aircraft. For perfect cooling even under heavy load, the servo is housed in a plastic housing with the center part formed by an aluminum heat sink.

A wide range of servo parameters (Defection Size, Servo Neutral, Output Power, Sensitivity, Soft Start, Deviation Inversion, Futaba SR Mode, Sanwa SSR Mode, Fail safe, Overload Protection, Reset) can be programmed via USB programmer / GO servo interface and PC tool. )

Technical data:

• voltage [V] : 4.8 - 8.4
• torque [kg/cm] : 4.8V - 13 / 6V - 15 / 7.4 - 18 / 8.4 - 20
• speed [s/60st] : 4.8V - 0.23 / 6V - 0.21 / 7.4 - 0.20 / 8.4 - 0.17
• gears: titanium
• bearing: 2 x BB
• size: standard

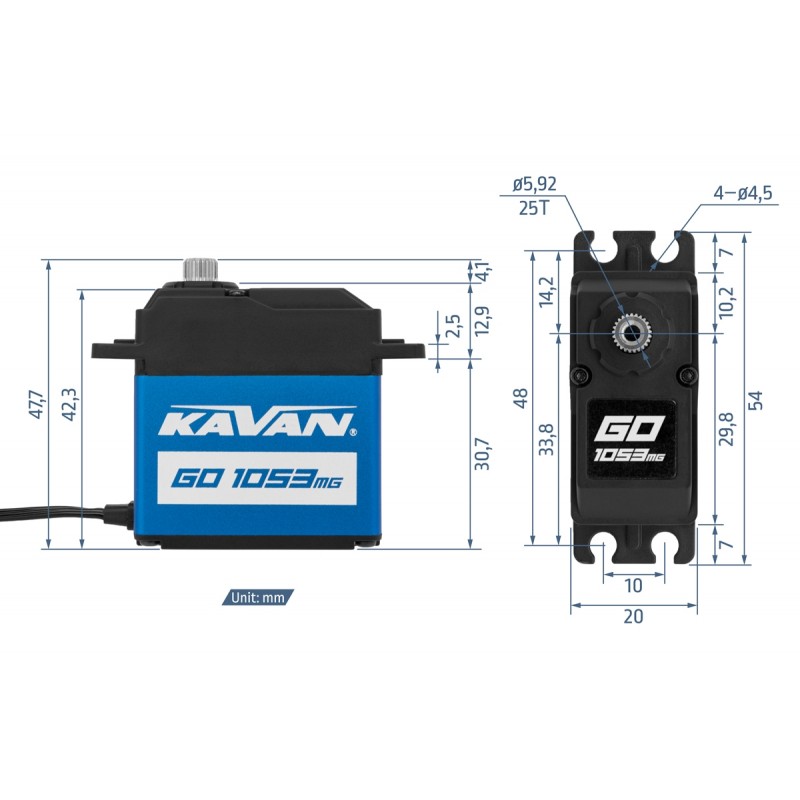

• length [mm] : 40
• width [mm] : 20
• height [mm] : 42.3
• weight [g] : 63
• output shaft: 25 teeth (5.92 mm)
