KAV20.1006MG SERVO GO-1006MG

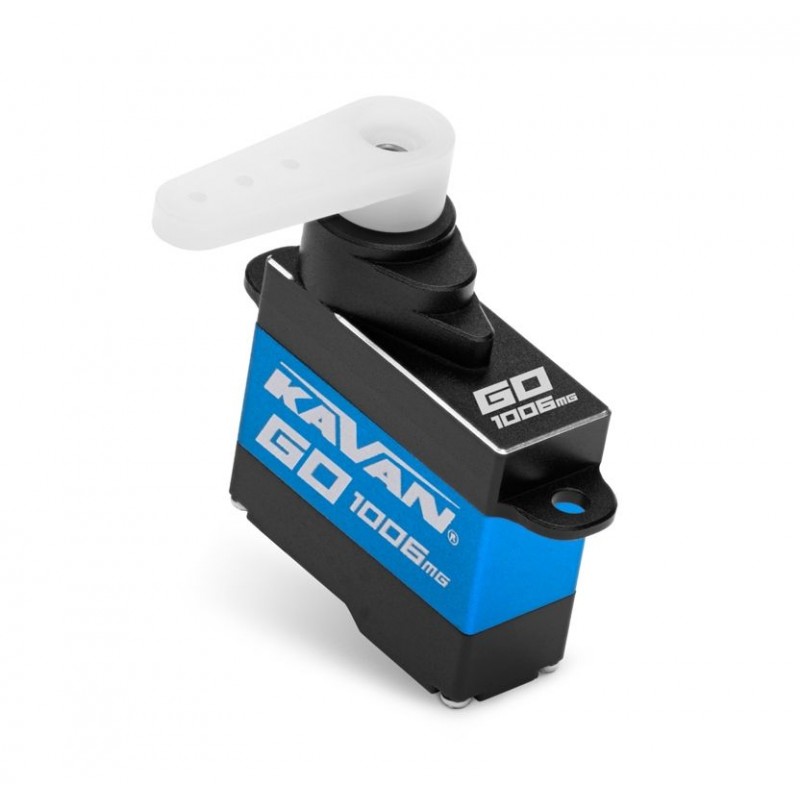

Very fast programmable digital nanoservo with titanium gears with output shaft mounted on one ball bearing for use in small RC aircraft models, RC cars 1: 18-1: 28, mini-helicopters, etc. For perfect cooling even under heavy load, the servo is in a plastic housing with the middle part formed by an aluminum heat sink.

A wide range of servo parameters (Defection Size, Servo Neutral, Output Power, Sensitivity, Soft Start, Deviation Inversion, Futaba SR Mode, Sanwa SSR Mode, Fail safe, Overload Protection, Reset) can be programmed via USB programmer / GO servo interface and PC tool. )

Technical data:

• voltage [V] : 4.8 - 8.4
• torque [kg/cm] : 4.8V - 1.8 / 6V - 2.2 / 8.4 - 3
• speed [s/60st] : 4.8V - 0.075 / 6V - 0.066 / 8.4V - 0.052
• gears: titanium
• bearing: 1 x BB
• size: mini

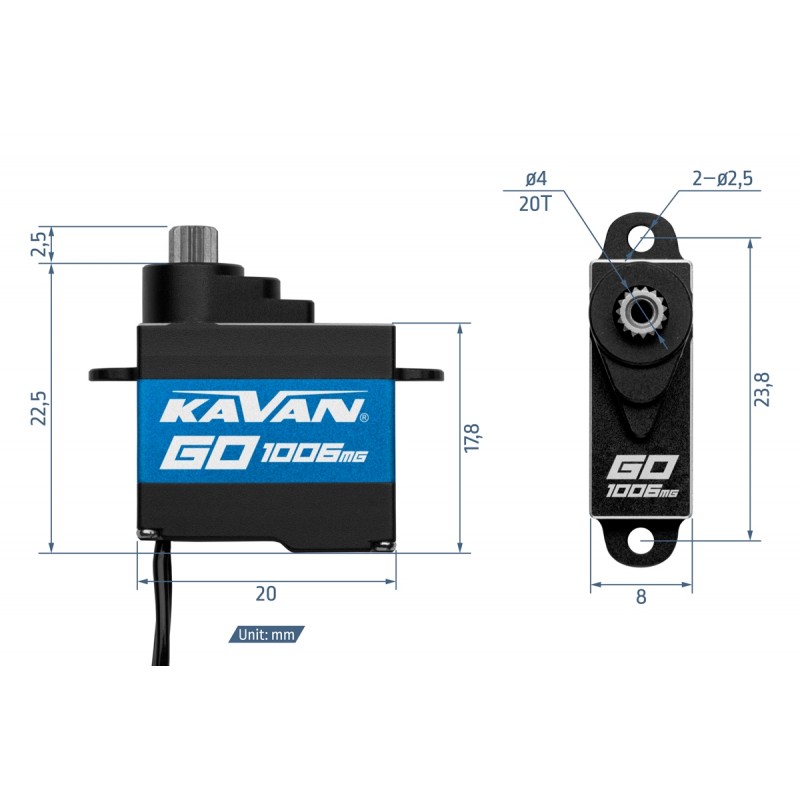

• length [mm] : 20
• width [mm] : 8
• height [mm] : 17.8
• weight [g] : 7
• output shaft: 20 teeth (4 mm)
