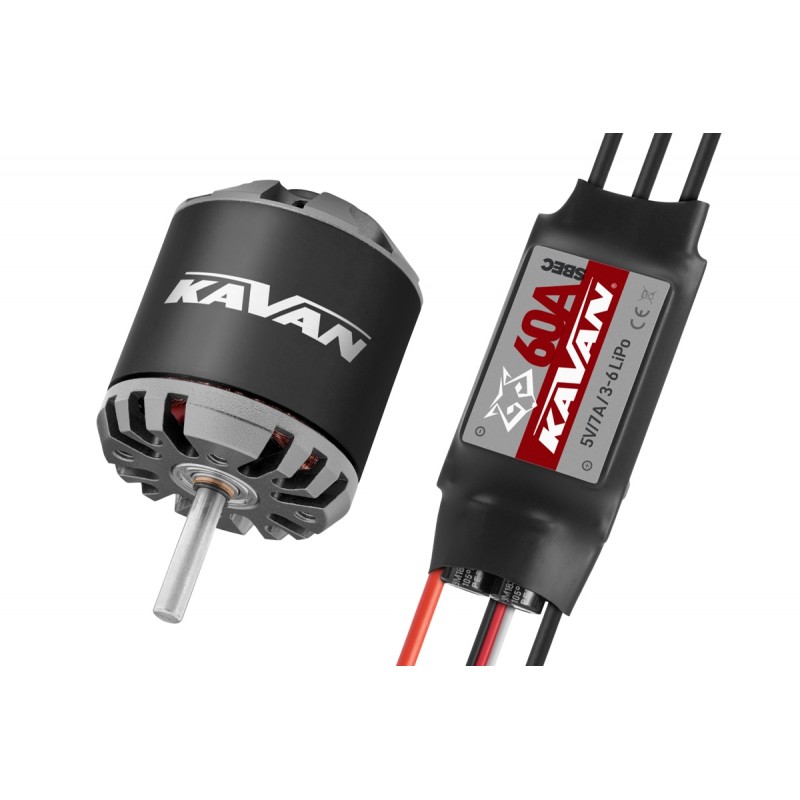

KAVAN C motors are powerful brushless electric motors with a rotating housing ("outrunner") with excellent electrical properties, sophisticated design and excellent production processing. They are a very good choice for flying recreational sports models with excellent performance parameters, good performance and favorable price. They are low speed, high torque motors that can handle large diameter propellers and climb without the need for gears.
Included: motor with soldered connectors, cross, hub mounting, screws, speed controller
Technical data:
- Power[LiXX]: 3 - 4
- KV[obr/V]: 1250
- Max. power (30s / 4S LiPo)[W]: 610
- No-load current (3S)[A]: 3.6
- Max. peak current (30s)[A]: 55

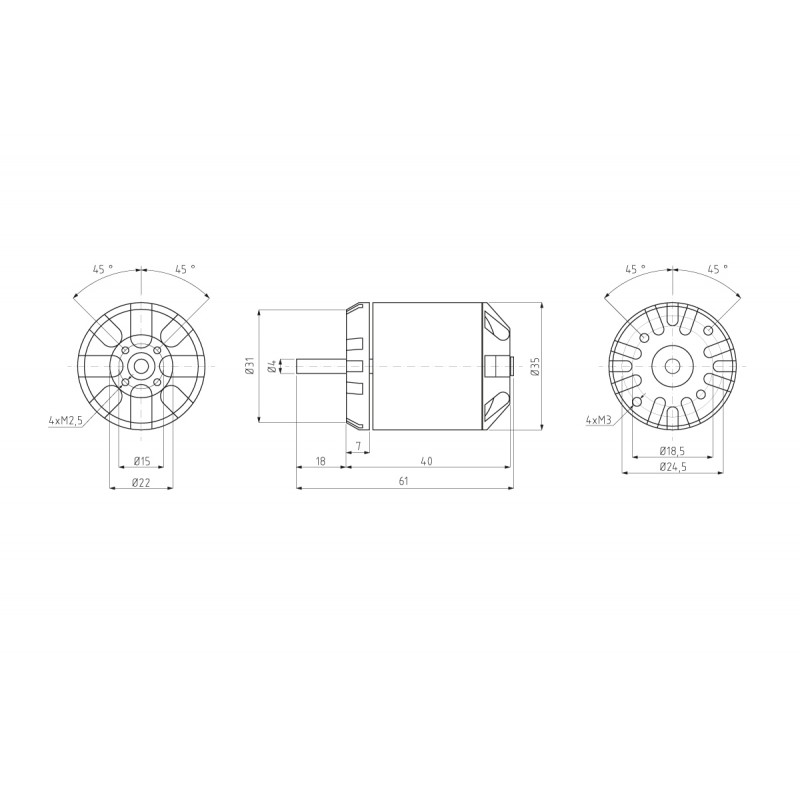

- Diameter[mm]: 35
- Length[mm]: 42
- Shaft diameter[mm]: 4
- Libra[g]: 140
- Number of fields: 14
- Recommended regulator[A]: 60 - 70
- Models weight up to[g]: gliders - 2200 / trainers - 2100 / acrobats - 1800 / 3D - 1200
- propeller recommended["]: 3S: 10x5-6 / 4S: 9x5-6
+ KAVAN R-60SB SPEED REGULATOR
Programmable microprocessor controllers for brushless, sensorless AC motors designed to take advantage of the latest semiconductor technology. They offer easy and clear programming via the transmitter and really simple and lightning fast setup with the KAVAN R LED programming card (sold separately). It is used to control the speed of AC electric motors in recreational models of airplanes powered by LiPo batteries. They are equipped with a strong stabilizer of the SBEC switching power supply supplying power to the receiver and servos from the drive battery.
Technical data:
- Application: Airplane, Helicopter
- Continuous current[A]: 60
- Peak current - instantaneous[A]: 80
- Li-po supply: 3 - 6
- BEC voltage[V]: 5
- BEC current[A]: 7
- Length[mm]: 77
- Width[mm]: 35
- Height[mm]: 14
- Libra[g]: 63
- unidirectional
- Brake: YES
- Input for sensors: No.
- Programmable: YES
- Programming card:KAVAN Program Card (KAV32.42015)
